58125 - Toro 26" Tiller (SN: 004000001 - 004999999) (1974) TINE AND ENGINE ASSEMBLY Parts Diagram

26" Tiller

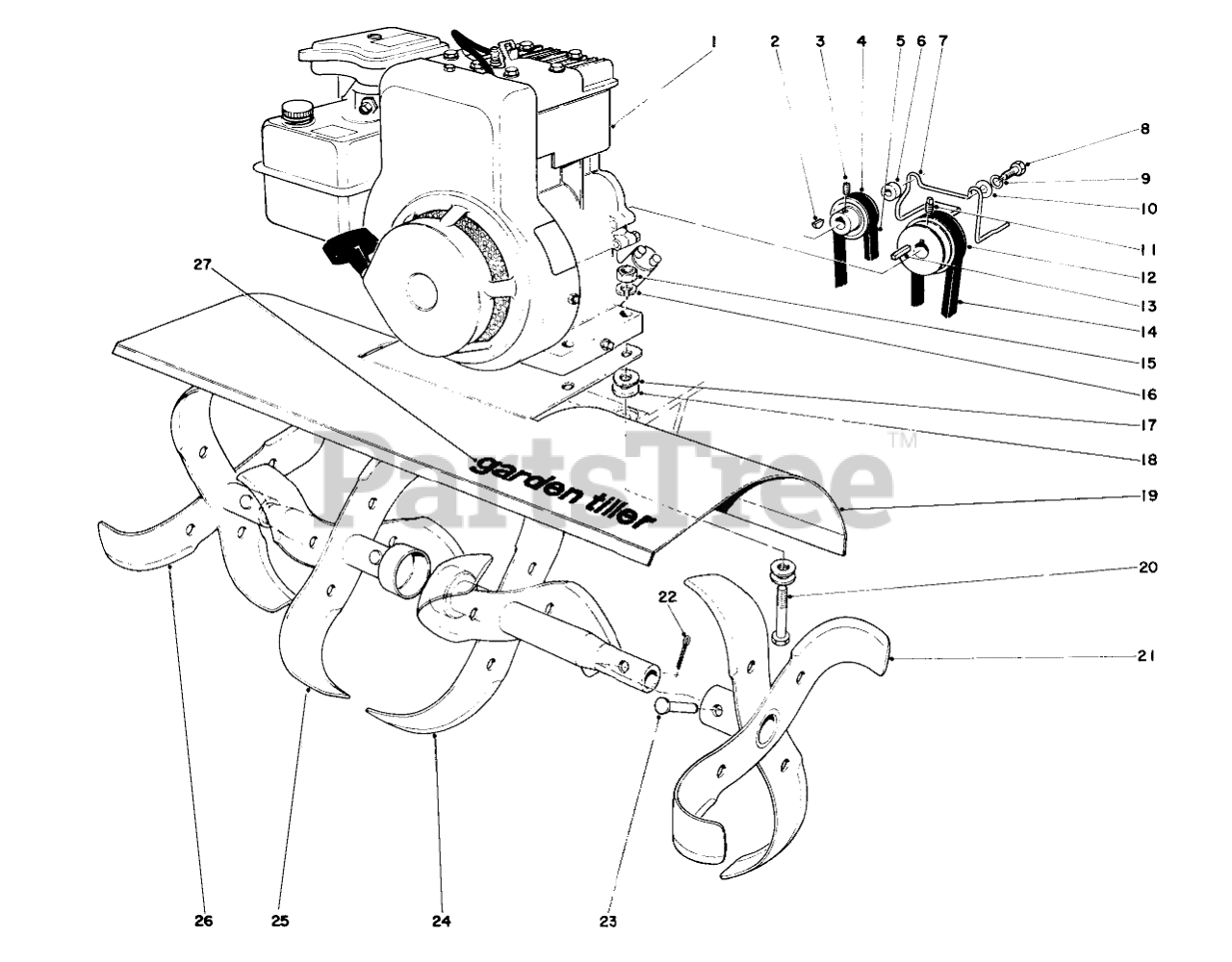

TINE AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-272

Engine

$

$

Currently unavailable

2

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

3

Toro 3245-7

SCREW-SET

$

$

Currently unavailable

4

Toro 7-0071

Pulley
(Superseded to 25-2170)

$

$

Not available

5

Toro 7-0074

V-BELT

$

$

Not available

6

Toro 2-0780

SPACER

$

$

Not available

7

Toro 7-9350

BELT GUIDE

$

$

Not available

8

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

12

Toro 7-0070

Engine Pulley

$

$

Not available

13

Toro 7-0036

KEY-SQUARE

$

$

Not available

14

Toro 7-0073

Belt
(Superseded to 28-8630)

$22.99

$

Usually ships in 3-6 days

0

15

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

19

Toro 7-0072

Shield
(Superseded to 26-3660)

$

$

Not available

20

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

21

Toro 20-8840

LH OUT SLASH TINE WA

$

$

Not available

22

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

23

Toro 7-2116

TINE PIN

$8.99

$

In Stock, only 4 left!

0

24

Toro 20-8830

Inner Tine L.H.

$

$

Not available

25

Toro 20-8810

Inner Tine R.H.

$

$

Not available

26

Toro 20-8820

RH OUT SLASH TINE EA

$

$

Not available

27

Toro 17-8340

Decal

$

$

Not available
