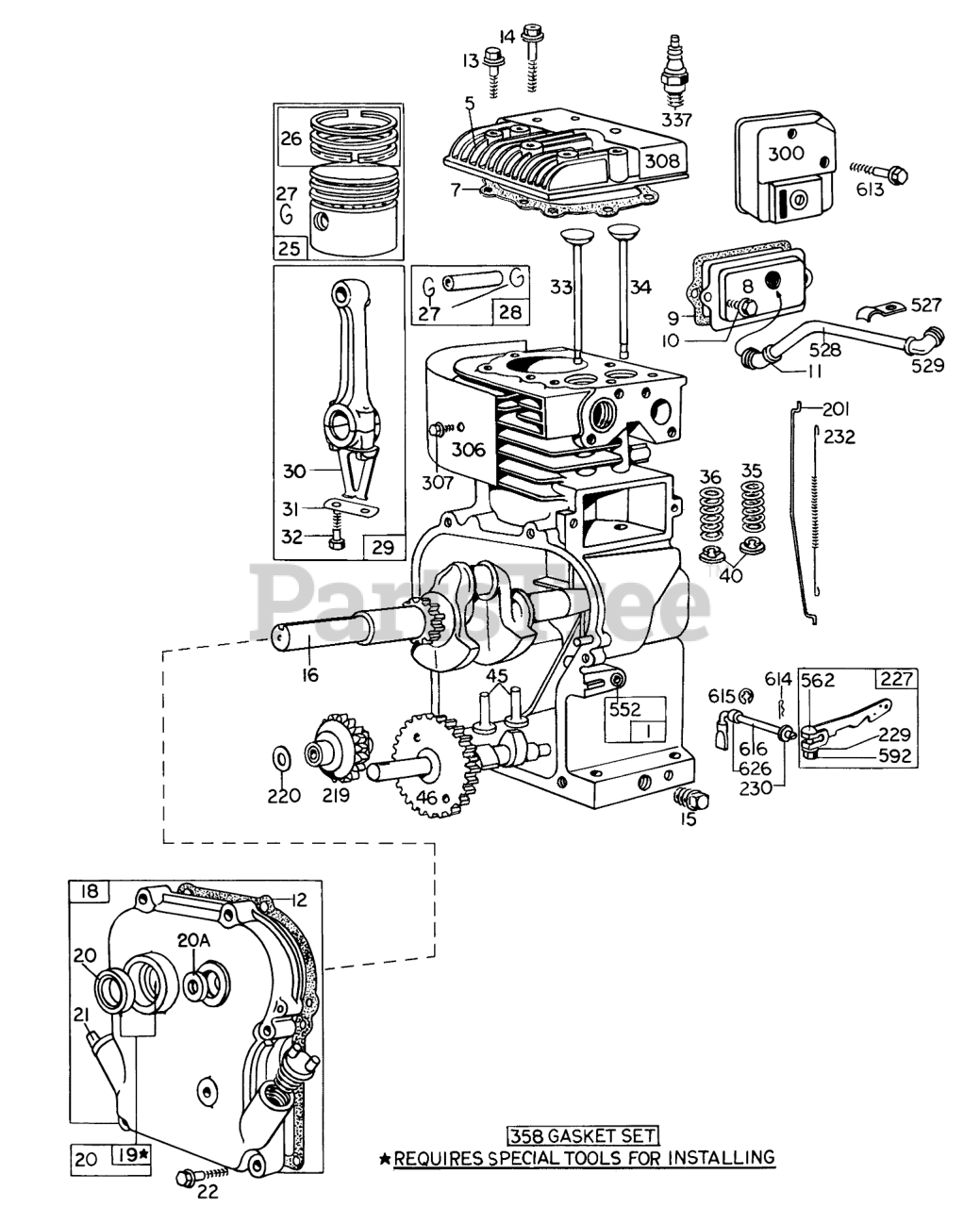

Toro 58125 - Toro 26" Tiller (SN: 004000001 - 004999999) (1974) ENGINE MODEL NO. 100292 TYPE 0245-07 BRIGGS & STRATTON Parts Lookup with Diagrams

1

Toro 297566

Cylinder Assembly

$

Currently unavailable 

5

Briggs & Stratton 211127

Head-Cylinder

$40.99

$

Usually ships in 2-12 days

7

Briggs & Stratton 270383

Gasket-Cylinder Head

(Superseded to 272157S) 

Note: Included in Gasket Set-Part NO. 297615

$6.49

$

In Stock, Qty 6

8

Briggs & Stratton 294178

Breather-Valve Chamber

(Superseded to 791779) 

$15.99

$

Usually ships in 2-12 days

9

Briggs & Stratton 27549

Gasket Breather

(Superseded to 27549S) 

Note: Included in Gasket Set-Part NO. 297615

$3.99

$

In Stock, Qty 12

10

Briggs & Stratton 93394

Screw

(Superseded to 691666) 

$3.99

$

In Stock, Qty 5

11

Briggs & Stratton 66578

Grommet

(Superseded to 692187) 

$4.49

$

In Stock, Qty 19

12

Briggs & Stratton 270080

Gasket (.015"Std.)

(Superseded to 692213) 

Note: Included in Gasket Set-Part NO. 297615

$3.99

$

In Stock, only 4 left!

Briggs & Stratton 270125

Gasket (.015")

$9.99

$

Usually ships in 2-12 days

Briggs & Stratton 270126

Gasket (.009")

$8.49

$

In Stock, only 2 left!

13

Briggs & Stratton 93368

Screw-Cylinder Head

(Superseded to 691640) 

$3.49

$

In Stock, Qty 12

14

Briggs & Stratton 93369

Screw-Cylinder Head

(Superseded to 691659) 

$3.49

$

Usually ships in 2-12 days

15

Briggs & Stratton 91249

Plug-Pipe

(Superseded to 691686) 

$5.49

$

In Stock, only 2 left!

16

Briggs & Stratton 260719

Crankshaft

$89.99

$

Usually ships in 2-12 days

18

Briggs & Stratton 298183

Cover Assy.-Crankcase

(Superseded to 694375) 

$71.99

$

Usually ships in 2-12 days

19

Briggs & Stratton 297603

Bushing-Crankcase Cover

$

Not available 

20

Briggs & Stratton 294606

Seal-Oil

(Superseded to 294606S) 

$9.49

$

In Stock, Qty 11

20A

Briggs & Stratton 298041

Seal-Oil

(Superseded to 691952) 

$9.99

$

In Stock, Qty 11

21

Briggs & Stratton 66768

Plug-Oil

(Superseded to 281658S) 

$4.49

$

In Stock, Qty 20+

22

Briggs & Stratton 93032

Screw

(Superseded to 692551) 

$3.99

$

In Stock, only 2 left!

25

Briggs & Stratton 298168

Piston Assy. (Standard)

$38.99

$

Usually ships in 2-12 days

Briggs & Stratton 298169

Piston Assy. (.010 oversize)

$92.99

$

Usually ships in 2-12 days

Briggs & Stratton 298170

Piston Assy. (.020 oversize)

$75.99

$

Usually ships in 2-12 days

Briggs & Stratton 298171

Piston Assy. (.030 oversize)

$60.99

$

Usually ships in 2-12 days

26

Briggs & Stratton 298174

Ring Set-Std . Piston, consists of: 211297 Ring, Piston, Comp. Top, 5/64" wide 211298 Ring, Piston, Compression Center, 5/64" wide 211299 Ring, Piston, Oil

$33.99

$

In Stock, only 2 left!

Briggs & Stratton 298175

Ring Set-.010" O.S. Piston, Consists of: 211353 Ring, Piston, Comp. Top, .010" O.S., 5/64" wide 211352 Ring, Piston, Compression, Center, .010" O.S. 5/64" wide 211351 Ring, Piston, Oil, .010" O.S.

$26.99

$

Usually ships in 2-12 days

Briggs & Stratton 298176

Ring Set-.020" O.S. Piston, consists of: 211357 Ring, Piston, Comp., Top, .020" O.S., 5/64" wide 211356 Ring, Piston, Compression, Center, .020" O.S., 5/64" wide 211355 Ring, Piston, Oil, .020" O.S.

$52.99

$

Usually ships in 2-12 days

Briggs & Stratton 298177

Ring Set-030" O.S.Piston consists of: 211361 Ring, Piston, Comp., Top, .030" O.S., 5/64" wide 211360 Ring, Piston, Compression, Center, .030" O.S., 5/64" wide 211359 Ring, Piston, Oil, .030" O.S.

$52.99

$

Usually ships in 2-12 days
