58116 - Toro 26" Tiller (SN: 005000001 - 005999999) (1975) TINE AND ENGINE ASSEMBLY Parts Diagram

26" Tiller

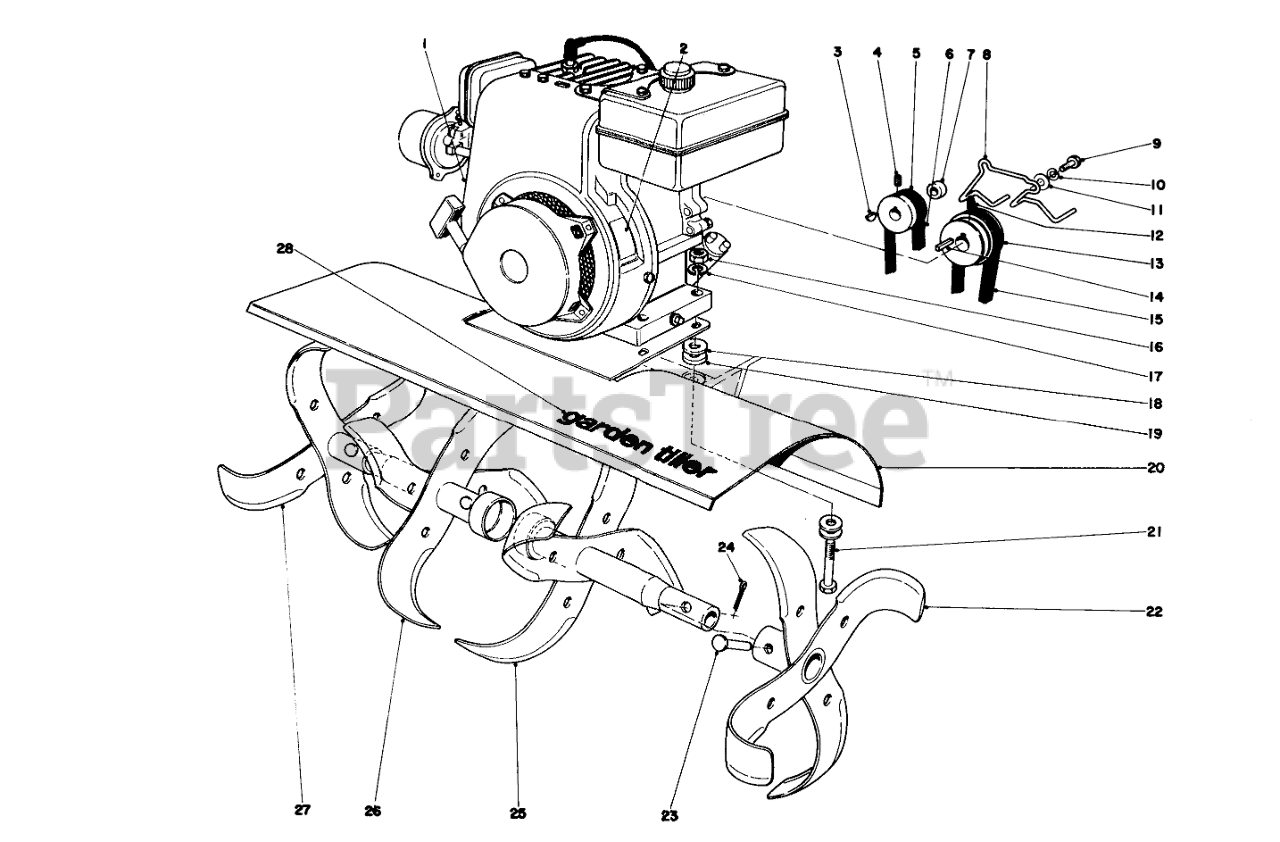

TINE AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-488

Engine

$

$

Currently unavailable

2

Toro 25-4060

Toro Lubrication

$

$

Currently unavailable

3

Toro 3257-37

HI PRO KEY

$

$

Not available

4

Toro 3245-21

Set Screw

$

$

Not available

5

Toro 25-2170

PULLEY

$

$

Not available

6

Toro 24-8940

Belt Reverse
(Superseded to 93-7381)

$20.99

$

In Stock, only 3 left!

0

7

Toro 24-8990

Spacer

$

$

Not available

8

Toro 24-8960

Belt Guide Upper

$

$

Not available

9

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

13

Toro 7-0070

Engine Pulley

$

$

Not available

14

Toro 7-0036

KEY-SQUARE

$

$

Not available

15

Toro 7-0073

Belt
(Superseded to 28-8630)

$24.99

$

Usually ships in 3-6 days

0

16

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

20

Toro 7-0072

Shield
(Superseded to 26-3660)

$

$

Not available

21

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

22

Toro 20-8840

LH OUT SLASH TINE WA

$

$

Not available

23

Toro 7-2116

TINE PIN

$8.99

$

In Stock, only 4 left!

0

24

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

25

Toro 20-8830

Inner Tine L.H.

$

$

Not available

26

Toro 20-8810

Inner Tine R.H.

$

$

Not available

27

Toro 20-8820

RH OUT SLASH TINE EA

$

$

Not available

28

Toro 17-8340

Decal

$

$

Not available
