58116 - Toro 26" Tiller (SN: 005000001 - 005999999) (1975) ENGINE TECUMSEH-MODEL HS40-55473E Parts Diagram

26" Tiller

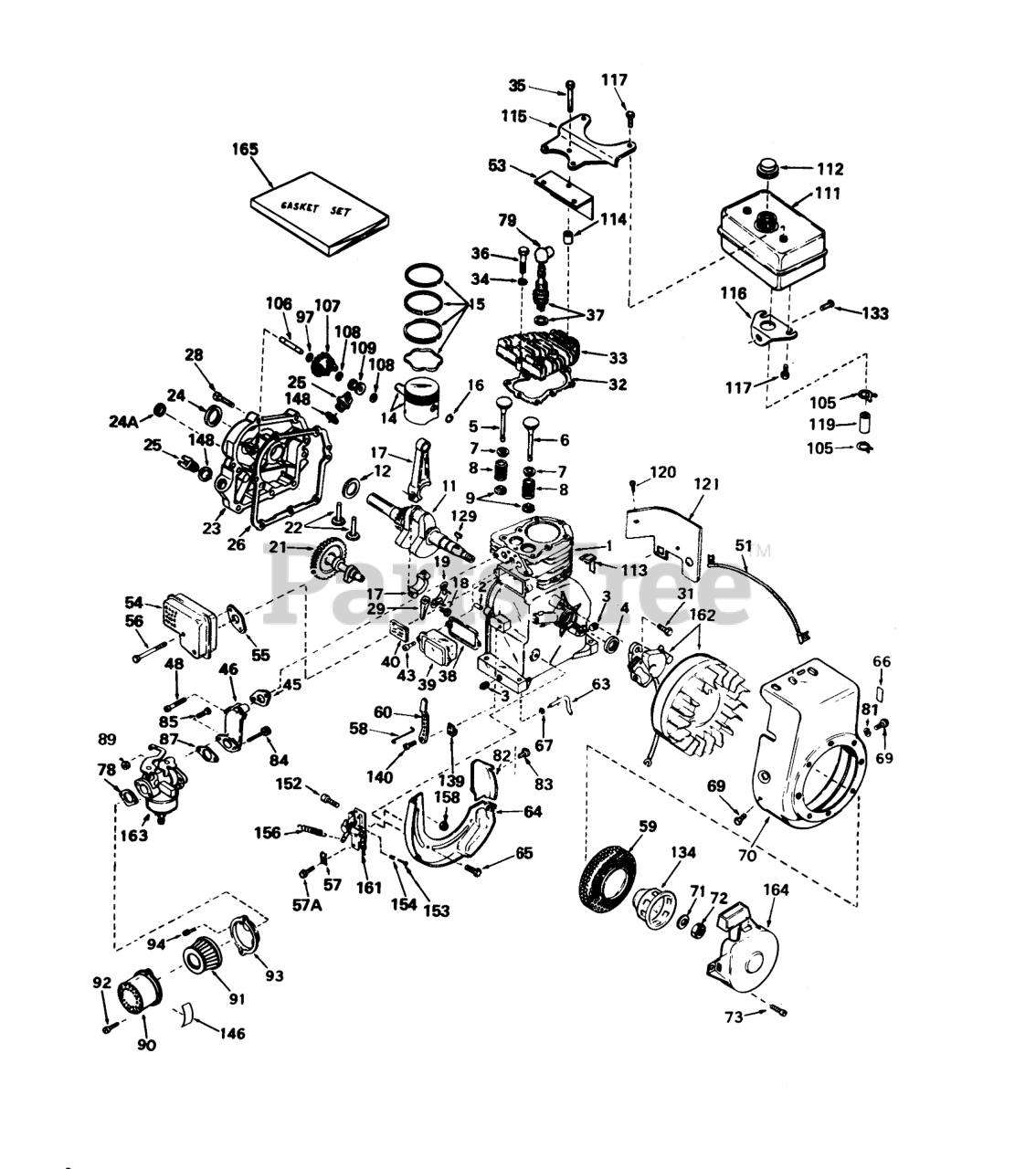

ENGINE TECUMSEH-MODEL HS40-55473E Parts Diagram

  • Title

1

Tecumseh 33014A

Cylinder Assy. (Incl.Nos. 2, 3 & 4)
(Superseded to 36561)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 3 left!

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 32644

Valve, Intake (Std.) (Incl. Nos.7, 8 & 9)
(Superseded to 32644A)

$9.99

$

In Stock, only 3 left!

0

5

Tecumseh 32645

Valve, Intake (1/32" oversize) (Incl. Nos. 7, 8 & 9)
(Superseded to 32645A)

$61.99

$

In Stock, only 2 left!

0

6

Tecumseh 29313B

Valve, Exhaust (Std.) (Incl. #7, 8 & 9)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" over size) (Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 32877A

Crankshaft Assy.

$

$

Not available

12

Tecumseh 32323

Washer-Thrust

$8.49

$

In Stock, only 1 left!

0

14

Tecumseh 32603

Piston& Pin Assy. (Incl. 2 of No. 16) (Std.)
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

14

Tecumseh 32604

Piston & Pin Assy. (Incl. 2 of No. 16) (.010 oversize)
(Superseded to 35545A)

$

$

Not available

14

Tecumseh 32605

Piston & Pin Assy. (Incl. 2 of No. 16) (.020 oversize)
(Superseded to 35546)

$

$

Not available

15

Tecumseh 32606

Ring Set Piston (Std.)
(Superseded to 34854)

$

$

Not available

15

Tecumseh 32607

Ring Set Piston (.010 Oversize)
(Superseded to 34855)

$

$

Not available

15

Tecumseh 32608

Ring Set Piston (.020 Oversize)
(Superseded to 34856)

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 32875

Rod Assy., Connecting (Incl. Nos. 18, 19, & 29)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

18

Tecumseh 32610

Connecting Rod Bolt
(Superseded to 32610A)

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 32609

Plate Lock

$0.99

$

Usually ships in 3-12 days

0

21

Tecumseh 33696

Camshaft (Compression Release) (Extended)

$67.99

$

Usually ships in 3-12 days

0

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 32766A

Cover, Cylinder (Incl. Nos. 24, 24A, 25, 106 & 148)
(Superseded to 32766B)

$

$

Not available

24

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, only 3 left!

0

24A

Tecumseh 30318

Seal, Oil

$7.49

$

In Stock, only 1 left!

0

25

Tecumseh 27625

Plug, Oil filler (Incl. No. 148)

$2.49

$

In Stock, Qty 8

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates items included in Gasket Set part no. 33240

$7.49

$

In Stock, Qty 8

0

28

Tecumseh 30564

Screw
(Superseded to 650451)

$1.99

$

In Stock, only 4 left!

0

29

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 4 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 33015

63573 GIL 42 SNWTHW
(Superseded to 33015A)

Note: Indicates items included in Gasket Set part no. 33240

$11.99

$

In Stock, only 1 left!

0

33

Tecumseh 33016

Head Cylinder
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

34

Tecumseh 26073

Washer

$

$

Not available

35

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 17

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates items included in Gasket Set part no. 33240

$7.49

$

In Stock, only 2 left!

0

39

Tecumseh 31337

Breather Assy. (Incl. Nos. 38 & 40)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

45

Tecumseh 32649

Gasket, Intake
(Superseded to 32649A)

Note: Indicates items included in Gasket Set part no. 33240

$2.99

$

In Stock, Qty 18

0

46

Tecumseh 32699

Pipe, Intake

$

$

Not available

48

Tecumseh 30646

Screw

$8.99

$

In Stock, only 2 left!

0

51

Tecumseh 31388

Wire, Ground
(Superseded to 35349)

$

$

Not available

53

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

54

Tecumseh 32648

Muffler
(Superseded to 35771A)

$32.99

$

In Stock, only 1 left!

0

55

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Indicates items included in Gasket Set part no. 33240

$1.99

$

In Stock, Qty 9

0

56

Tecumseh 650253

Screw, Hex hd. cap
(Superseded to 792020)

$4.49

$

Usually ships in 3-12 days

0

57

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

57A

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 3 left!

0

58

Tecumseh 32698

Link-Governor to Throttle

$1.99

$

Usually ships in 3-12 days

0

59

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, only 2 left!

0

63

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

Note: In original production, the speed control assembly is riveted to the blower housing baffle.Replacement speed control assembly includes screws and nuts for mounting.

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 31906

Decal, Name & Instruction
(Superseded to 36261)

$

$

Not available

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, only 2 left!

0

70

Tecumseh 33663

Housing Blower
(Superseded to 33663E)

$

$

Currently unavailable

71

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

73

Tecumseh 29716

Screw

$1.49

$

In Stock, only 2 left!

0

78

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Indicates items included in Gasket Set part no. 33240

$4.49

$

In Stock, Qty 20+

0

79

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 4 left!

0

81

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

82

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

83

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

85

Tecumseh 650601

Screw-Fil. Hd.

$

$

Currently unavailable

87

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set part no. 33240

$2.99

$

In Stock, Qty 11

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

90

Tecumseh 31692

Body
(Superseded to 31715)

$21.99

$

In Stock, Qty 7

0

91

Tecumseh 30727

Element

$7.49

$

In Stock, only 3 left!

0

92

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

93

Tecumseh 31914

Bracket, Air cleaner

$22.99

$

Usually ships in 3-12 days

0

94

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

Usually ships in 3-12 days

0

97

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 12

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

107

Tecumseh 30591

Gear Assy., Governor (Incl. No. 97)

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 6

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

111

Tecumseh 33120

Tank Assy., Fuel (Incl. No. 117)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

112

Tecumseh 410144B

Cap, Fuel
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

113

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

114

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

115

Tecumseh 28371A

Bracket, Fuel tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

116

Tecumseh 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

117

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

Usually ships in 3-12 days

0

119

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, Qty 5

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

129

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

133

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

134

Tecumseh 33667

Cup, Starter

$

$

Not available

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

146

Tecumseh 31752

Decal

$

$

Not available

148

Tecumseh 29673

Gasket

Note: Indicates items included in Gasket Set part no. 33240

$1.99

$

In Stock, only 3 left!

0

152

Tecumseh 30091

Screw, Hex Slotted Hd.
(Superseded to 650139)

Note: In original production, the speed control assembly is riveted to the blower housing baffle.Replacement speed control assembly includes screws and nuts for mounting.

$1.99

$

In Stock, only 4 left!

0

153

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

154

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

156

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

158

Tecumseh 30322

Nut-Lock

Note: In original production, the speed control assembly is riveted to the blower housing baffle.Replacement speed control assembly includes screws and nuts for mounting.

$1.99

$

Usually ships in 3-12 days

0

161

Tecumseh 33879

Control Assy., Speed (Incl. Nos. 152, 153, 154 & 158)
(Superseded to 36677)

Note: In original production, the speed control assembly is riveted to the blower housing baffle.Replacement speed control assembly includes screws and nuts for mounting.

$47.99

$

In Stock, only 1 left!

0

162

Tecumseh 610862

Magneto

$

$

Currently unavailable

163

Tecumseh 631469

Carburetor (Incl. No.87)
(Superseded to 631795A)

$110.99

$

In Stock, only 1 left!

0

164

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 2 left!

0

165

Tecumseh 33240

Gasket
(Superseded to 33240B)

$34.99

$

In Stock, only 2 left!

0
