58116 - Toro 26" Tiller (SN: 005000001 - 005999999) (1975) CHASSIS ASSEMBLY Parts Diagram

26" Tiller

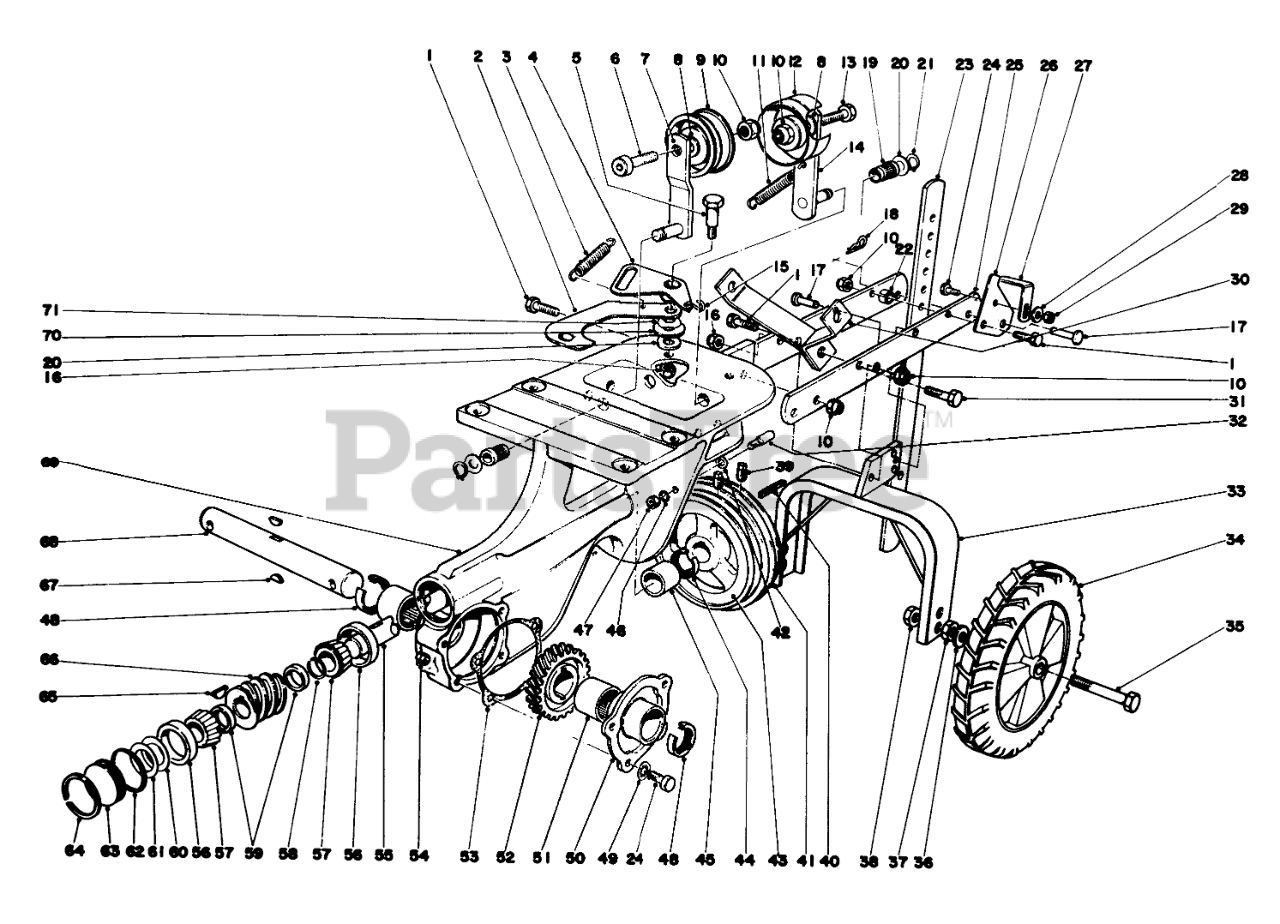

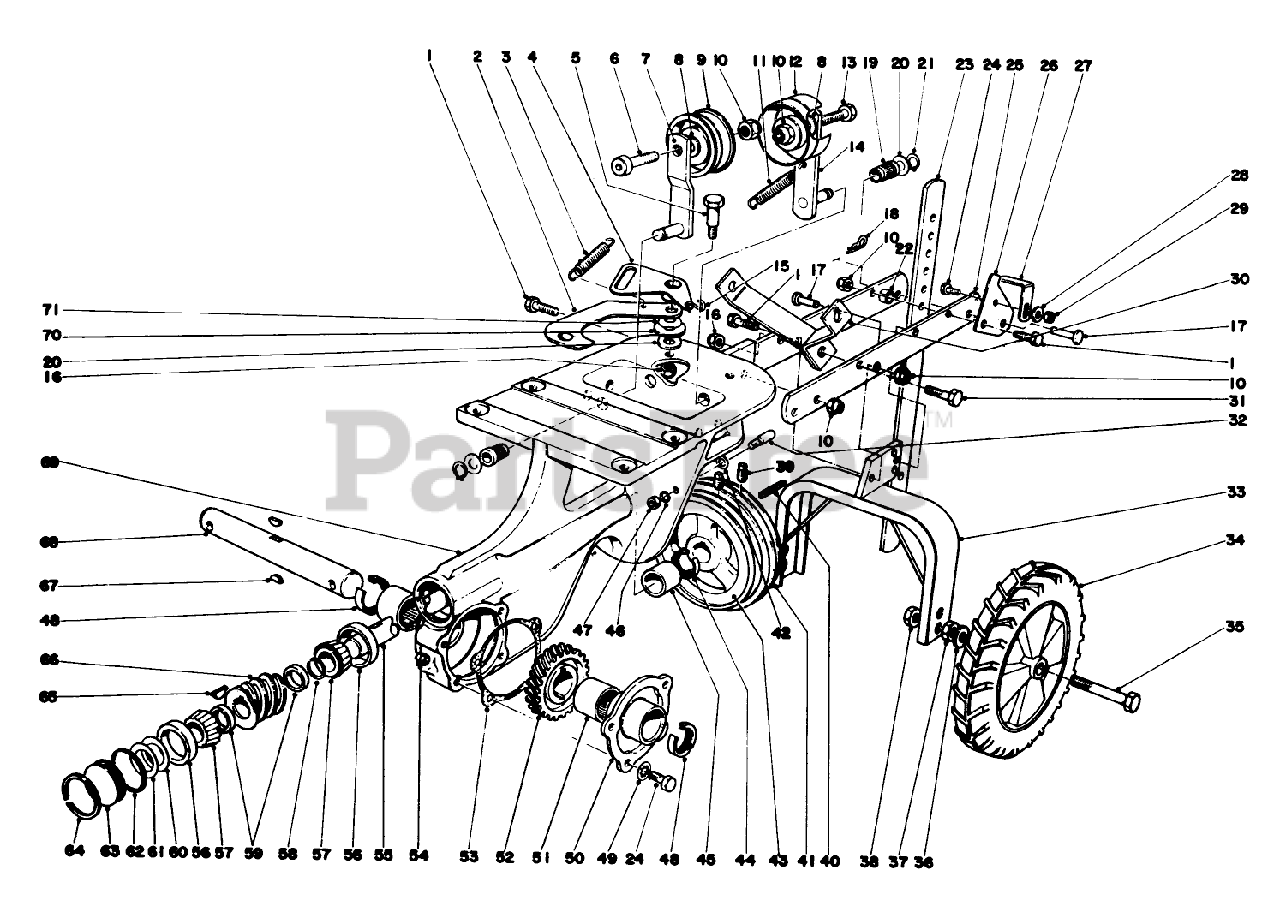

CHASSIS ASSEMBLY Parts Diagram

  • Title
1

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 7-0028

Rev. Link

$

$

Not available

3

Toro 7-1322

Spring

$

$

Not available

4

Toro 7-0027

Bellcrank

$

$

Not available

5

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

6

Toro 327445

Socket Hd. Capscrew

$

$

Currently unavailable

7

Toro 7-0055

IdlerArm

$

$

Not available

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 7-0056

PULLEY IDLER

$

$

Not available

10

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

11

Toro 7-0025

Spring

$

$

Not available

12

Toro 7-0051

IDLER PULLEY

$

$

Not available

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 7-0050

Idler
(Superseded to 26-7100)

$

$

Not available

15

Toro 7-3618

S Hook

$

$

Not available

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

17

Toro 7-2116

TINE PIN

$8.99

$

In Stock, only 4 left!

0

18

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

19

Toro 7-0023

IDLER BRG

$

$

Not available

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 4 left!

0

22

Toro 17-6530

Spacer

$

$

Not available

23

Toro 7-0076

DEPTH GAGE

$

$

Not available

24

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 17-8510

Drawbar

$

$

Currently unavailable

26

Toro 17-8480

Hinge Latch

$

$

Not available

27

Toro 17-8490

Drag Bar Latch

$

$

Not available

28

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

30

Toro 7-9340

Handle Support

$

$

Not available

31

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 7-0031

Belt Guide

$

$

Currently unavailable

33

Toro 17-8360

Wheel Bracket

$

$

Not available

34

Toro 24-8930

Wheel

$

$

Not available

35

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

36

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

38

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

39

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

40

Toro 7-0036

KEY-SQUARE

$

$

Not available

41

Toro 7-0035

Pulley

$

$

Not available

42

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

43

Toro 7-0034

Pulley

$

$

Not available

44

Toro 253-84

SEAL-OIL

$11.99

$

Usually ships in 3-6 days

0

45

Toro 256-167

BUSHING

$

$

Not available

46

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

47

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

48

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, only 2 left!

0

49

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

50

Toro 7-0048

Cover

$

$

Not available

51

Toro 252-88

Needle Bearing
(Superseded to 1528)

$59.99

$

In Stock, only 1 left!

0

52

Toro 7-0047

WORM WHEEL

$

$

Not available

53

Toro 7-0020

GASKET

$

$

Not available

54

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

55

Toro 7-0012

WORM SHAFT

$

$

Not available

56

Toro 254-79

BEARING-ROLLER, CUP

$7.49

$

In Stock, Qty 12

0

57

Toro 254-78

BEARING-CONE

$13.99

$

In Stock, Qty 17

0

58

Toro 7-0013

RETAINER RING

$8.49

$

Usually ships in 3-6 days

0

59

Toro 7-0015

SPACER

$

$

Not available

60

$

$

Not available

61

$

$

Not available

62

Toro 237-71

O-RING

$9.49

$

Usually ships in 3-6 days

0

63

$

$

Not available

64

Toro 7-0018

INTRNL RETAINING RING

$

$

Not available

65

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

66

Toro 7-0016

WORM GEAR

$

$

Not available

67

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

68

Toro 7-0046

WORM WHEEL SHAFT

$

$

Not available

69

Toro 23-7720

Chassis

$

$

Currently unavailable

70

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

71

Toro 3290-213

7/16 SPRING WASHER

$

$

Not available

Toro 25-3900

Loose Parts

Note: Not Illustrated.

$

$

Currently unavailable
