58114 - Toro 26" Tiller (SN: 005000001 - 005999999) (1975) HANDLE ASSEMBLY Parts Diagram

26" Tiller

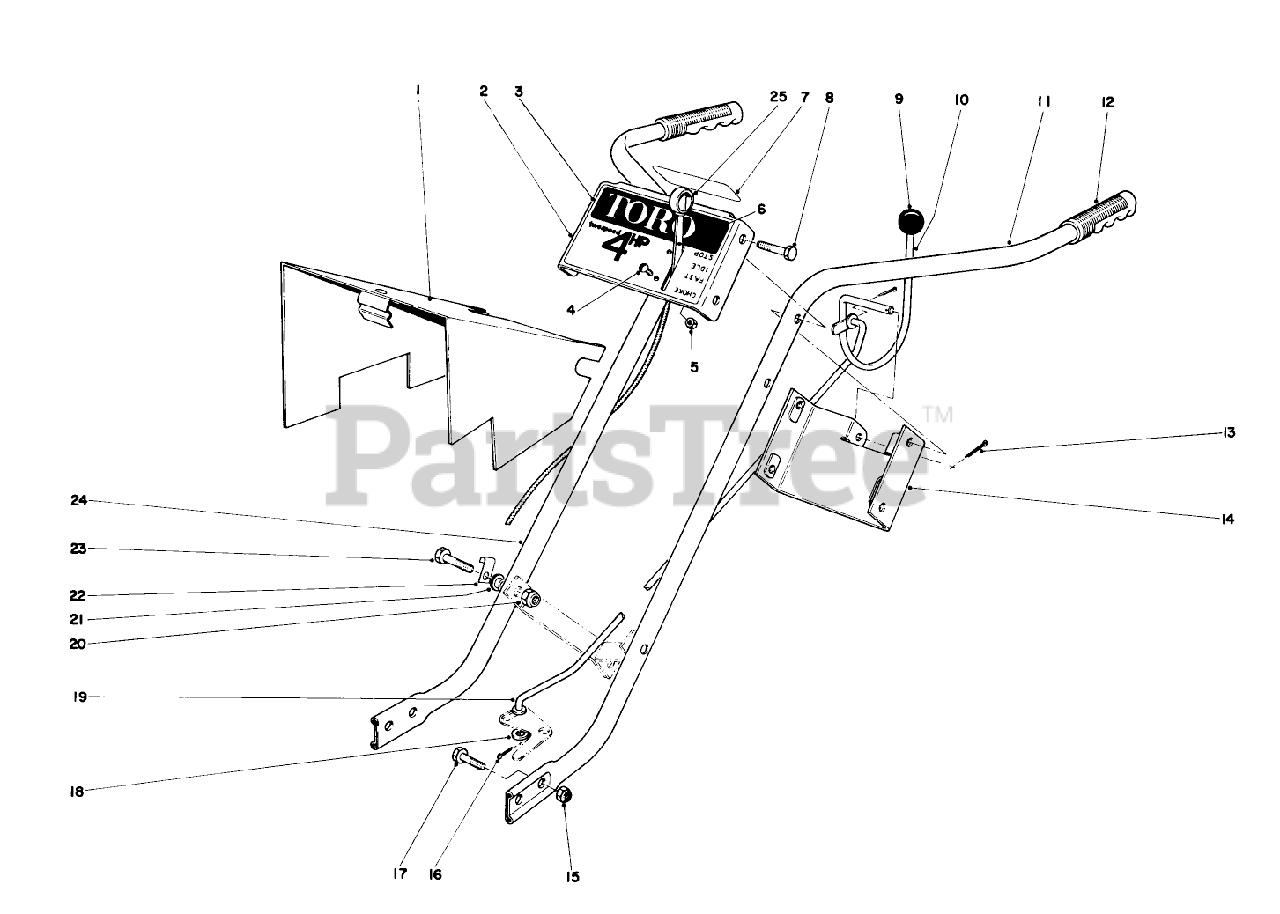

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-9190

Pulley Cover

$

$

Not available

2

Toro 17-8580

Control Plate

$

$

Currently unavailable

3

Toro 17-8420

Decal, Control

$

$

Currently unavailable

4

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

5

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

6

Toro 17-8450

Throttle Control

$

$

Currently unavailable

7

Toro 7-9450

Decal Clutch

$

$

Currently unavailable

8

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

9

Toro 233-22

KNOB-CONTROL

$25.99

$

Usually ships in 3-6 days

0

10

Toro 7-9320

Clutch Control

$

$

Not available

11

Toro 7-9270

Handle L.H.

$

$

Not available

12

Toro 235-19

Handle Grip

$

$

Not available

13

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

14

Toro 17-8460

Handle Brace

$

$

Currently unavailable

15

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

16

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

17

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 7-0078

Clutch Rod

$

$

Not available

20

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

21

Toro 7-2041

Spacer

$

$

Currently unavailable

22

Toro 7-0077

Clip

$

$

Not available

23

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

24

Toro 7-9280

Handle R.H.

$

$

Not available

25

Toro 233-35

KNOB

$9.99

$

Usually ships in 3-6 days

0
