58100 - Toro 26" Tiller (SN: 009000001 - 009999999) (1969) ENGINE MODEL NO. 100292 Parts Diagram

26" Tiller

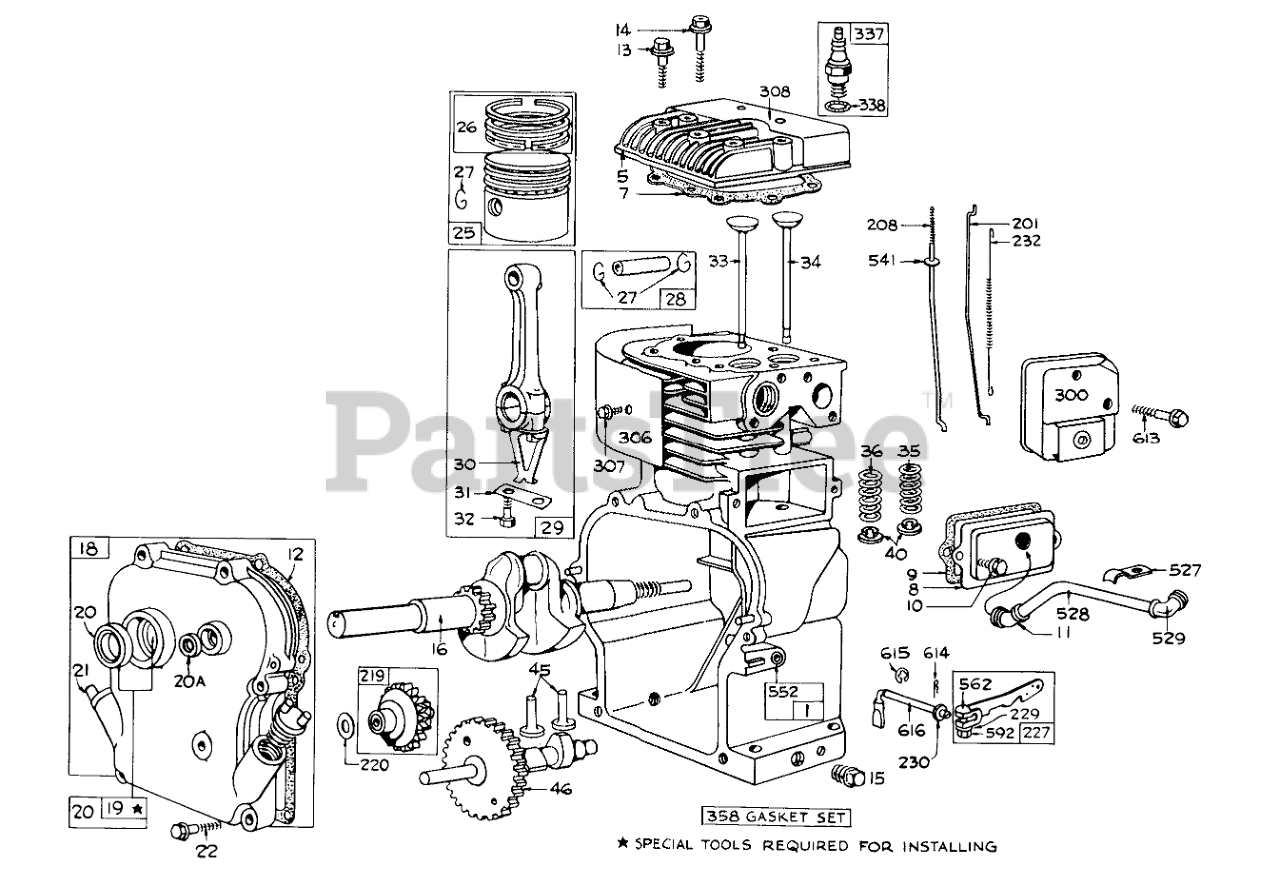

ENGINE MODEL NO. 100292 Parts Diagram

  • Title

1

Toro 297566

Cylinder Assembly

$

$

Currently unavailable

1

Briggs & Stratton 297603

Bushing-Crankcase Cover

$

$

Not available

5

Briggs & Stratton 211127

Head-Cylinder

$

$

Not available

7

Briggs & Stratton 270383

Gasket-Cylinder Head
(Superseded to 272157S)

Note: Included in Gasket Set-Part NO. 297615

$6.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set-Part NO. 297615

$3.99

$

In Stock, Qty 10

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Toro 65786

Grommet-Breather Tube

$

$

Currently unavailable

12

Briggs & Stratton 270080

Gasket (.015"Std.)
(Superseded to 692213)

Note: Included in Gasket Set-Part NO. 297615

$3.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93368

Screw-Cylinder Head
(Superseded to 691640)

$3.49

$

In Stock, Qty 11

0

14

Briggs & Stratton 93369

Screw-Cylinder Head
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91249

Plug-Pipe
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 260719

Crankshaft

$

$

Not available

18

Briggs & Stratton 298183

Cover Assy.-Crankcase
(Superseded to 694375)

$

$

Not available

20

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

20

Briggs & Stratton 298041

Seal-Oil
(Superseded to 691952)

$9.99

$

In Stock, Qty 8

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 298168

Piston Assy. (Standard)

$

$

Not available

Briggs & Stratton 298169

Piston Assy. (.010 oversize)

$

$

Not available

Briggs & Stratton 298170

Piston Assy. (.020 oversize)

$

$

Not available

Briggs & Stratton 298171

Piston Assy. (.030 oversize)

$

$

Not available

26

Briggs & Stratton 298174

Ring Set-Std . Piston, consists of: 211297 Ring, Piston, Comp. Top, 5/64" wide 211298 Ring, Piston, Compression Center, 5/64" wide 211299 Ring, Piston, Oil

$33.99

$

In Stock, only 2 left!

0

Briggs & Stratton 298175

Ring Set-.010" O.S. Piston, Consists of: 211353 Ring, Piston, Comp. Top, .010" O.S., 5/64" wide 211352 Ring, Piston, Compression, Center, .010" O.S. 5/64" wide 211351 Ring, Piston, Oil, .010" O.S.

$

$

Not available

Briggs & Stratton 298176

Ring Set-.020" O.S. Piston, consists of: 211357 Ring, Piston, Comp., Top, .020" O.S., 5/64" wide 211356 Ring, Piston, Compression, Center, .020" O.S., 5/64" wide 211355 Ring, Piston, Oil, .020" O.S.

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298177

Ring Set-030" O.S.Piston consists of: 211361 Ring, Piston, Comp., Top, .030" O.S., 5/64" wide 211360 Ring, Piston, Compression, Center, .030" O.S., 5/64" wide 211359 Ring, Piston, Oil, .030" O.S.

$

$

Not available

27

Briggs & Stratton 260645

Lock-Piston Pin

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 297581

Pin Assy.,-Piston-Standard

$

$

Not available

Briggs & Stratton 297582

Pin Assy.,-Piston-.005"O.S.

$

$

Not available

29

Briggs & Stratton 297569

Rod Assy.,-Connecting

$67.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 221786

Dipper-Connecting Rod

$

$

Not available

31

Briggs & Stratton 221741

Lock-Connecting Rod Screw

$

$

Not available

32

Briggs & Stratton 93450

Screw-Connecting Rod

$

$

Not available

33

Briggs & Stratton 211119

Valve Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 260961

Valve-Intake

$37.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$

$

Not available

46

Briggs & Stratton 211284

Gear-Cam
(Superseded to 691166)

$

$

Not available

201

Briggs & Stratton 260661

Link-Governor

$24.99

$

Usually ships in 2-12 days

0

208

Briggs & Stratton 230737

55335 GIL 11HP SNWT

$

$

Not available

219

Briggs & Stratton 297656

Gear-Governor

$

$

Not available

220

Briggs & Stratton 221551

Washer-Thrust
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 297601

Lever Assy.-Governor

$11.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 220680

Washer
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 221559

Clamp-Casing

$3.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 260478

Spring-Governor Link
(Superseded to 690545)

$4.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 297506

Muffler-Exhaust
(Superseded to 494585)

$23.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 221511

Shield-Cylinder
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

307

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 221512

Cover Cylinder Head
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 298809

Plug Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

338

Toro 29806

Gasket-Spark Plug

$

$

Currently unavailable

358

Briggs & Stratton 297615

Gasket Set
(Superseded to 495603)

$32.99

$

In Stock, Qty 20+

0

527

Briggs & Stratton 221514

Clamp, BreatherTube

$

$

Not available

528

Briggs & Stratton 230722

Condenser

$

$

Not available

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$3.99

$

In Stock, Qty 7

0

541

Briggs & Stratton 22398

Washer
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 230732

Bushing-Governor

$

$

Not available

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 90356

Nut
(Superseded to 690276)

$

$

Not available

613

Briggs & Stratton 93377

Screw-Hex. Hd.

$

$

Not available

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 1 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, Qty 5

0

616

Briggs & Stratton 230723

Crank-Governor

$

$

Not available
