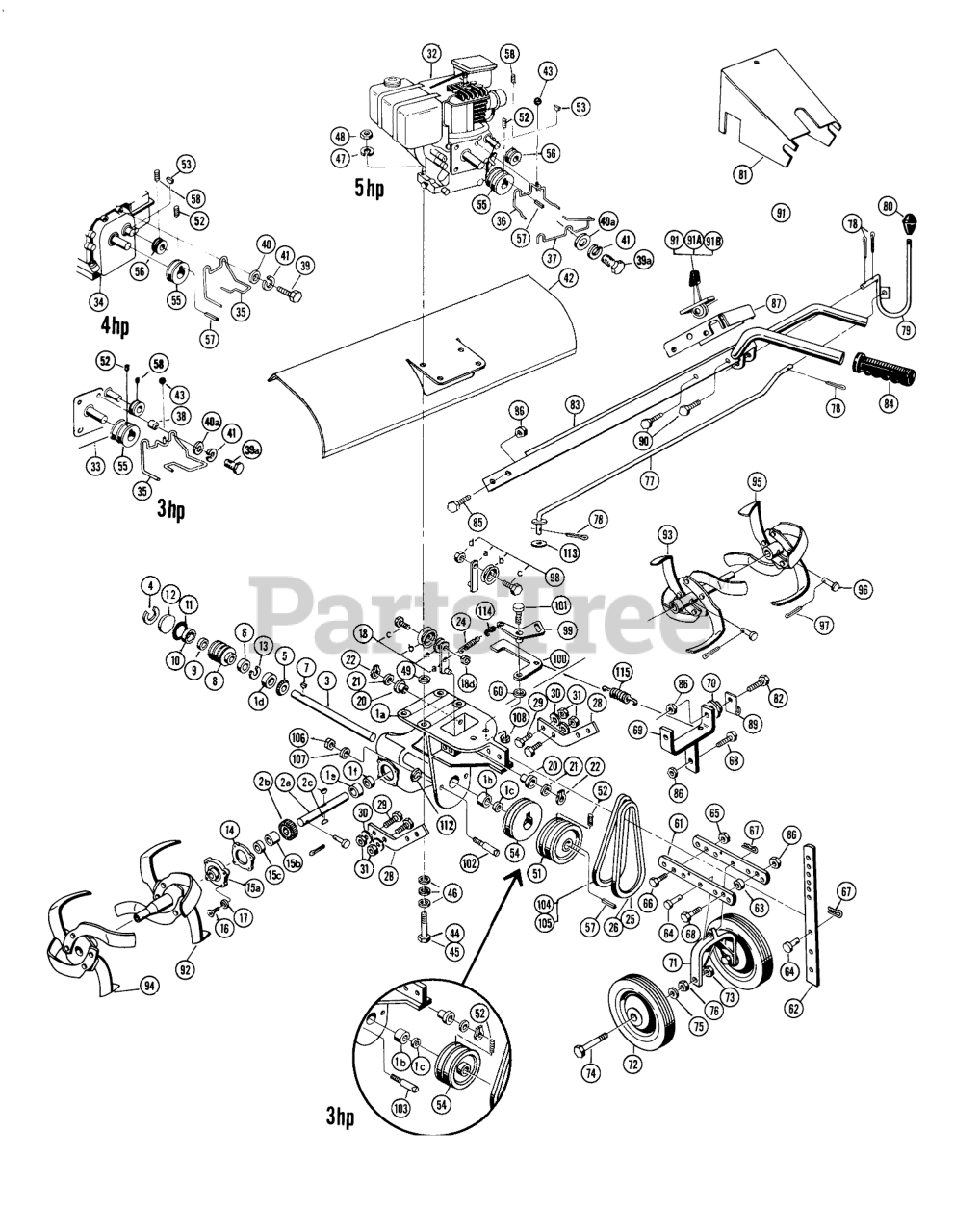

58100 - Toro 26" Tiller (SN: 008000001 - 008999999) (1968) TILLER PARTS LIST Parts Diagram

26" Tiller

TILLER PARTS LIST Parts Diagram

  • Title

1a

Toro 7-0043

Chassis

$

$

Currently unavailable

1b

256-167(s

Bushing

$

$

Not available

1c

Toro 7-0044

Oil Seal
(Superseded to 253-84)

$11.99

$

Usually ships in 3-6 days

0

1d

Toro 254-89(s

d. Bearing Cup

$

$

Currently unavailable

1e

Toro 252-52

Bearing

$

$

Currently unavailable

1f

Toro 7-0045

SEAL-OIL

$17.99

$

Usually ships in 3-6 days

0

2a

Toro 7-0046

WORM WHEEL SHAFT

$

$

Not available

2b

Toro 7-0047

WORM WHEEL

$

$

Not available

2c

Toro 3257-33(s

c. Woodruff Key

$

$

Currently unavailable

2

Toro 7-0011

Worm Wheel Assembly (Consists of)

$

$

Not available

3

Toro 7-0012

WORM SHAFT

$

$

Not available

4

Toro 7-0013

RETAINER RING

$8.49

$

Usually ships in 3-6 days

0

5

Toro 254-88(s

Bearing Cone

$

$

Currently unavailable

6

Toro 7-0014

WORM SHF REAR SPACER

$

$

Not available

7

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

8

Toro 7-0016

WORM GEAR

$

$

Not available

9

Toro 7-0015

SPACER

$

$

Not available

10

Toro 251-207(s

Bearing

$

$

Currently unavailable

11

Toro 237-71(s

O Ring

$

$

Currently unavailable

12

Toro 7-0017

Plug

$

$

Not available

13

Toro 7-0018

INTRNL RETAINING RING

$

$

Not available

14

Toro 7-0020

GASKET

$

$

Not available

15a

Toro 7-0048

Cover

$

$

Not available

15b

Toro 252-52

Bearing

$

$

Currently unavailable

15c

Toro 7-0045

SEAL-OIL

$17.99

$

Usually ships in 3-6 days

0

15

Toro 7-0021

Cap Assy (Consists of)

$

$

Currently unavailable

16

3274-31(s

Screw

$

$

Not available

17

Toro 3274-8

SCREW-HSH
(Superseded to 3274-64)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 7-0022

Idler Pulley & Arm (Consists of)

$

$

Not available

18a

Toro 7-0050

Idler
(Superseded to 26-7100)

$

$

Not available

18b

Toro 7-0051

IDLER PULLEY

$

$

Not available

18c

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18d

32152-2(s

Nut

$

$

Not available

18e

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

19

Toro 7-0352

Idler Pulley & Arm (Consists of)

$

$

Not available

19a

Toro 7-0050

Idler
(Superseded to 26-7100)

$

$

Not available

19b

Toro 7-0136

Pulley
(Superseded to 3-4244)

$27.99

$

In Stock, only 2 left!

0

19c

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19d

32152-2(s

Nut

$

$

Not available

20

Toro 7-0023

IDLER BRG

$

$

Not available

21

Toro 7-0024

Washer

$

$

Currently unavailable

22

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 4 left!

0

23

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

24

Toro 7-0025

Spring

$

$

Not available

25

Toro 7-0073

Belt
(Superseded to 28-8630)

$24.99

$

Usually ships in 3-6 days

0

26

Toro 7-0354

BELT

$

$

Not available

27

32152-2(s

Nut

$

$

Not available

28

Toro 7-0033

Handle Bracket

$

$

Currently unavailable

29

Toro 32141-81(s

Leveler Head Bolt

$

$

Currently unavailable

30

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

31

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

36

Toro 7-0335

Belt Guide

$

$

Currently unavailable

37

Toro 7-0336

Belt Guide

$

$

Currently unavailable

39a

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

40a

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 7-0072

Shield
(Superseded to 26-3660)

$

$

Not available

43

Toro 233-17(s

Knob

$

$

Currently unavailable

44

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

47

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

48

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

49

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

50

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

51

Toro 7-0035

Pulley

$

$

Not available

52

Toro 3242-13(s

Set Screw

$

$

Currently unavailable

53

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

54

Toro 7-0034

Pulley

$

$

Not available

54a

Toro 7-0350

Pulley

$

$

Not available

55

Toro 7-0070

Engine Pulley

$

$

Not available

56

Toro 7-0071

Pulley
(Superseded to 25-2170)

$

$

Not available

57

Toro 7-0036

KEY-SQUARE

$

$

Not available

58

Toro 3245-7

SCREW-SET

$

$

Currently unavailable

59

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

60

Toro 7-0032

Washer
(Superseded to 3256-25)

$0.99

$

In Stock, Qty 20+

0

61

Toro 7-0037

Drawbar

$

$

Currently unavailable

62

Toro 7-0076

DEPTH GAGE

$

$

Not available

63

Toro 7-0042

Spacer

$

$

Currently unavailable

64

Toro 7-0040

Pin
(Superseded to 7-2116)

$8.99

$

In Stock, only 4 left!

0

65

32152-2(s

Nut

$

$

Not available

66

Toro 323-29(s

Bolt

$

$

Currently unavailable

67

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

68

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

69

Toro 7-0041

Support

$

$

Currently unavailable

70

Toro 7-2041

Spacer

$

$

Currently unavailable

71

Toro 7-0038

Wheel Bracket

$

$

Currently unavailable

72

Toro 7-0075

Wheel

$

$

Not available

73

32152-3(s

Nut

$

$

Not available

74

Toro 7-3552

Axle
(Superseded to 325-13)

$0.99

$

In Stock, only 2 left!

0

75

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

76

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

77

Toro 7-0078

Clutch Rod

$

$

Not available

78

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

79

Toro 7-0088

Shift Lever

$

$

Currently unavailable

80

233-18(s

Knob

$

$

Not available

81

Toro 7-0080

Pulley Cover

$

$

Currently unavailable

83

Toro 7-0087

Handle Bar

$

$

Currently unavailable

84

Toro 235-17(s

Grip, Handle

$

$

Currently unavailable

85

Toro 322-5(s

Bolt

$

$

Currently unavailable

86

Toro 32152-1(s

Nut

$

$

Currently unavailable

87

Toro 7-3365

Cover Handle

$

$

Currently unavailable

88

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

89

Toro 7-0077

Clip

$

$

Not available

90

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

91b

Toro 7-3363

Throttle

$

$

Currently unavailable

92

Toro 7-0096

Tines L. H. Inner (Consists of)

$

$

Not available

92a

Toro 7-0104

Axle Hub

$

$

Not available

92b

Toro 7-0103

RH TINE

$67.99

$

Usually ships in 3-6 days

0

92c

Toro 7-0102

LH TINE

$

$

Not available

92d

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

92e

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

92f

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

93

Toro 7-0097

b. Tine R.H.

$

$

Not available

93a

Toro 7-0104

Axle Hub

$

$

Not available

93b

Toro 7-0097

b. Tine R.H.

$

$

Not available

93c

Toro 7-0102

LH TINE

$

$

Not available

93d

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

93e

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

93f

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

94

Toro 7-0098

Tines L.H. Outer (Consists of)

$

$

Not available

94a

Toro 7-0105

Axle Hub

$

$

Currently unavailable

94b

Toro 7-0103

RH TINE

$67.99

$

Usually ships in 3-6 days

0

94c

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

94d

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

94e

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

95

Toro 7-0101

Tines R.H. Outer (Consists of)

$

$

Not available

95a

Toro 7-0105

Axle Hub

$

$

Currently unavailable

95b

Toro 7-0102

LH TINE

$

$

Not available

95c

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

95d

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

95e

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

96

Toro 7-0106

Pin

$

$

Currently unavailable

97

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

98

Toro 7-0026

Idler Pulley Arm Assy. (Consists of)

$

$

Not available

98a

Toro 7-0055

IdlerArm

$

$

Not available

98b

Toro 7-0056

PULLEY IDLER

$

$

Not available

98c

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

98d

32152-2(s

Nut

$

$

Not available

99

Toro 7-0027

Bellcrank

$

$

Not available

100

Toro 7-0028

Rev. Link

$

$

Not available

101

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

102

Toro 7-0031

Belt Guide

$

$

Currently unavailable

105

Toro 7-2166

BELT

$

$

Not available

106

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

107

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

108

Toro 32152-1(s

Nut

$

$

Currently unavailable

110

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

111

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

112

Toro 3256-16(s

Flatwasher

$

$

Currently unavailable

113

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

114

Toro 7-3618

S Hook

$

$

Not available

115

Toro 7-1322

Spring

$

$

Not available

33

Toro 221-272(s

Engine Briggs & Stratton 100292 4HP

$

$

Currently unavailable

35

Toro 7-0068

Belt Guide

$

$

Not available

38

Toro 2-0780

SPACER

$

$

Not available

39

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 7-0024

Washer

$

$

Currently unavailable

41

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

45

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

91

Toro 7-3361

Throttle

$

$

Not available

104

Toro 7-0074

V-BELT

$

$

Not available

32

Toro 221275(s

Engine Tecumseh H50-9378 5HP

$

$

Currently unavailable

34

Toro 221-294

Engine

$

$

Currently unavailable

35

Toro 7-3364

Belt Guide

$

$

Currently unavailable

55

Toro 7-0346

Engine Pulley

$

$

Not available

91a

Toro 7-3362

Throttle Assy.

$

$

Currently unavailable

103

Toro 7-0347

Belt Guide

$

$

Not available
