58100 - Toro 26" Tiller (SN: 000000001 - 000999999) (1970) CHASSIS ASSEMBLY Parts Diagram

26" Tiller

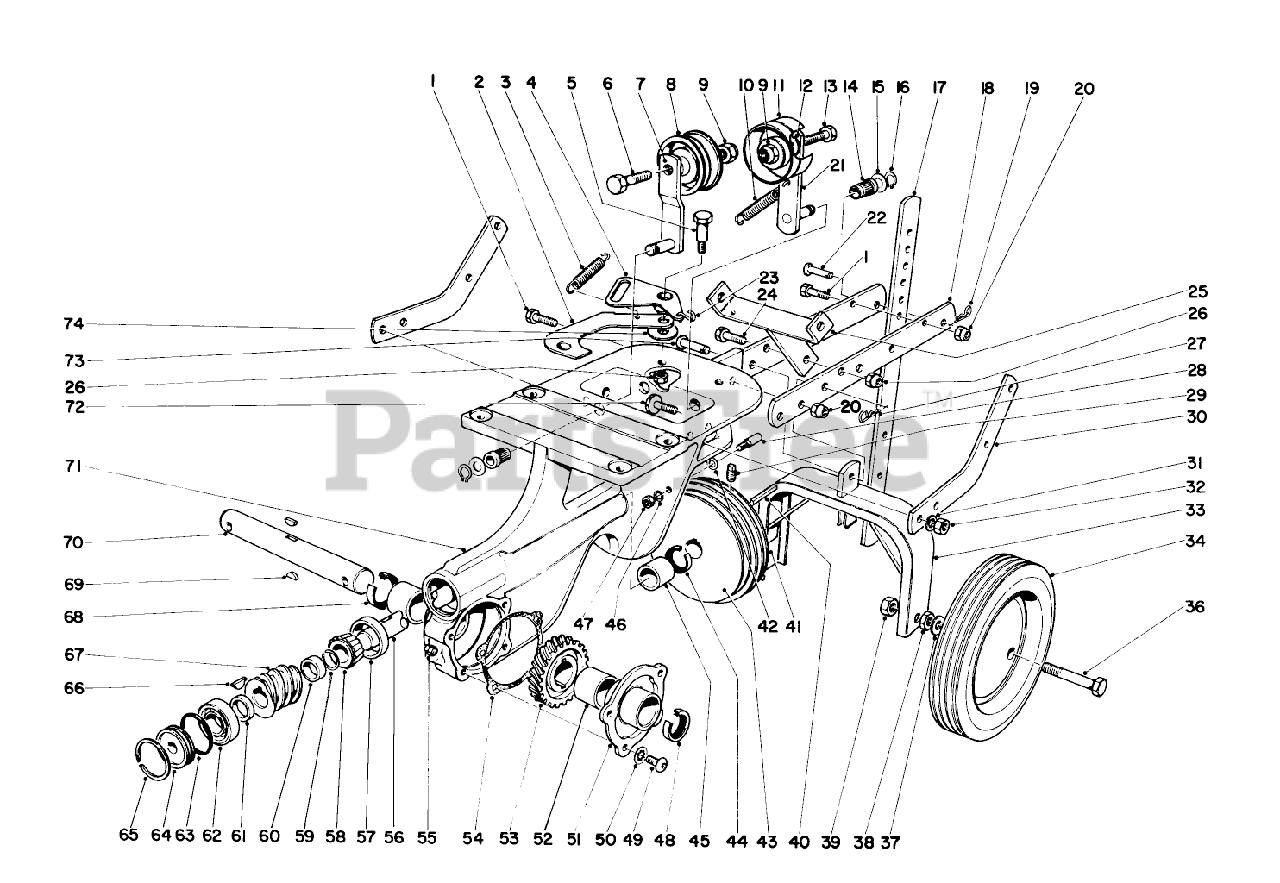

CHASSIS ASSEMBLY Parts Diagram

  • Title
1

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 7-0028

Rev. Link

$

$

Not available

3

Toro 7-1322

Spring

$

$

Not available

4

Toro 7-0027

Bellcrank

$

$

Not available

5

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

6

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 7-0055

IdlerArm

$

$

Not available

8

Toro 7-0056

PULLEY IDLER

$

$

Not available

9

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

10

Toro 7-0025

Spring

$

$

Not available

11

Toro 7-0051

IDLER PULLEY

$

$

Not available

12

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 7-0023

IDLER BRG

$

$

Not available

15

Toro 7-0024

Washer

$

$

Currently unavailable

16

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 4 left!

0

17

Toro 7-0076

DEPTH GAGE

$

$

Not available

18

Toro 7-0037

Drawbar

$

$

Currently unavailable

19

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

20

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

21

Toro 7-0050

Idler
(Superseded to 26-7100)

$

$

Not available

22

Toro 7-0040

Pin
(Superseded to 7-2116)

$8.99

$

In Stock, only 4 left!

0

23

Toro 7-3618

S Hook

$

$

Not available

24

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 7-0041

Support

$

$

Currently unavailable

26

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

27

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

28

Toro 7-0031

Belt Guide

$

$

Currently unavailable

29

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

30

Toro 7-0033

Handle Bracket

$

$

Currently unavailable

31

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

32

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

33

Toro 7-0038

Wheel Bracket

$

$

Currently unavailable

34

Toro 7-0075

Wheel

$

$

Not available

36

Toro 7-3552

Axle
(Superseded to 325-13)

$0.99

$

In Stock, only 2 left!

0

37

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

39

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

40

Toro 7-0036

KEY-SQUARE

$

$

Not available

41

Toro 7-0035

Pulley

$

$

Not available

42

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

43

Toro 7-0034

Pulley

$

$

Not available

44

Toro 7-0044

Oil Seal
(Superseded to 253-84)

$11.99

$

Usually ships in 3-6 days

0

45

Toro 256-167

BUSHING

$

$

Not available

46

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

47

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

48

Toro 7-0045

SEAL-OIL

$17.99

$

Usually ships in 3-6 days

0

49

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

50

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

51

Toro 7-0048

Cover

$

$

Not available

52

Toro 252-52

Bearing

$

$

Currently unavailable

53

Toro 7-0047

WORM WHEEL

$

$

Not available

54

Toro 7-0020

GASKET

$

$

Not available

55

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

56

Toro 7-0012

WORM SHAFT

$

$

Not available

57

Toro 254-89

1.750 ROLLER BRG CUP

$

$

Not available

58

Toro 254-88

3/4 ROLLER BRG CONE

$125.99

$

Usually ships in 3-6 days

0

59

Toro 7-0013

RETAINER RING

$8.49

$

Usually ships in 3-6 days

0

60

Toro 7-0014

WORM SHF REAR SPACER

$

$

Not available

61

Toro 7-0015

SPACER

$

$

Not available

62

Toro 251-207

.750 BALL BEARING

$

$

Not available

63

Toro 237-71

O-RING

$9.49

$

Usually ships in 3-6 days

0

64

$

$

Not available

65

Toro 7-0018

INTRNL RETAINING RING

$

$

Not available

66

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

67

Toro 7-0016

WORM GEAR

$

$

Not available

68

Toro 7-0045

SEAL-OIL

$17.99

$

Usually ships in 3-6 days

0

69

Toro 2357-33

Woodruff Key

$

$

Currently unavailable

70

Toro 7-0046

WORM WHEEL SHAFT

$

$

Not available

71

Toro 7-0043

Chassis

$

$

Currently unavailable

72

Toro 32141-102

Leveler Hd.

$

$

Currently unavailable

73

Toro 7-0040

Pin
(Superseded to 7-2116)

$8.99

$

In Stock, only 4 left!

0

74

Toro 7-0032

Washer
(Superseded to 3256-25)

$0.99

$

In Stock, Qty 20+

0
