58015 - Toro 26" Tiller (SN: 005000001 - 005999999) (1975) ENGINE TECUMSEH - MODEL H35-45437K Parts Diagram

26" Tiller

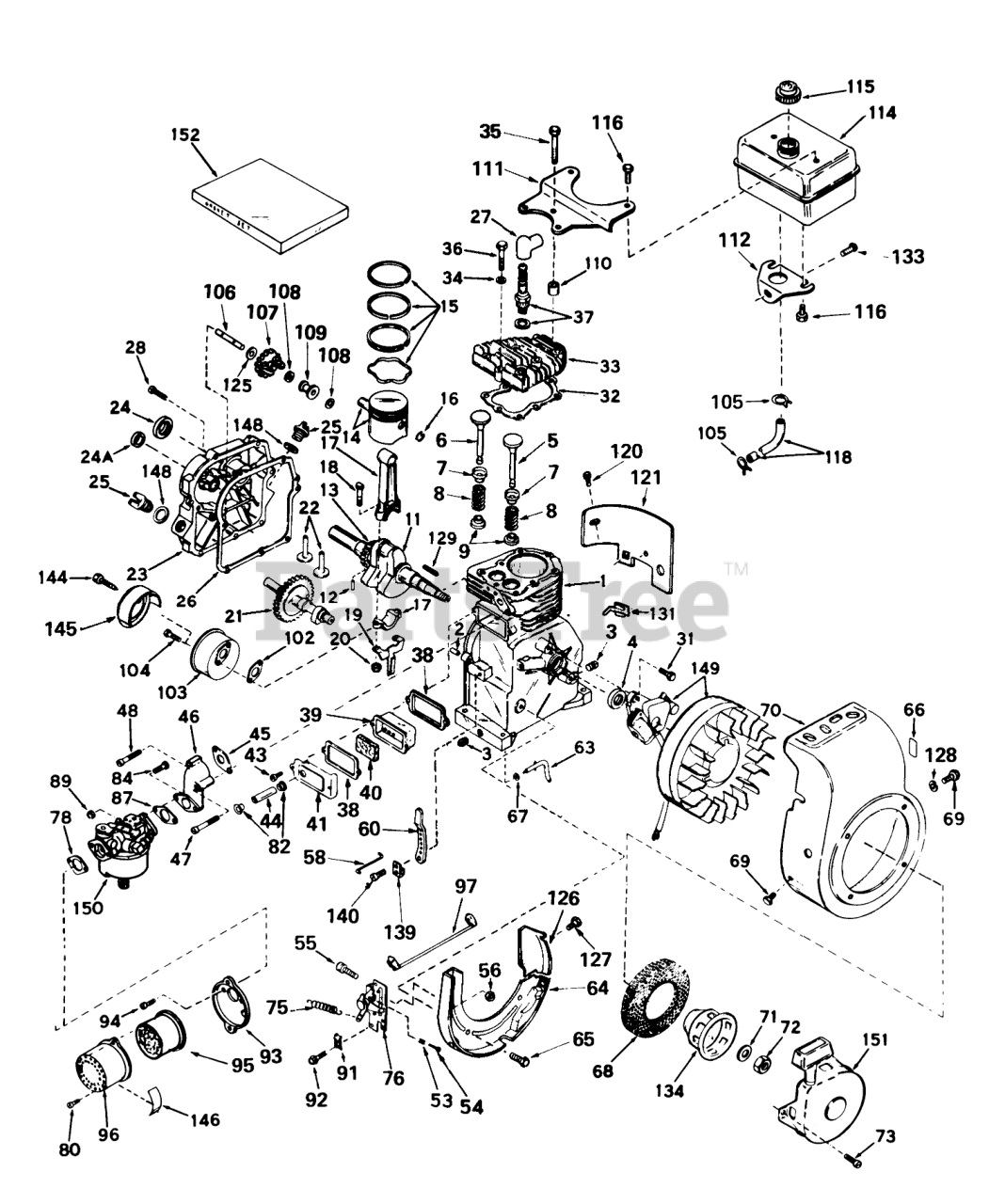

ENGINE TECUMSEH - MODEL H35-45437K Parts Diagram

  • Title

1

Tecumseh 33164

Cylinder Assy. (Incl. Nos. 2, 3 & 4)
(Superseded to 33164A)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 1 left!

0

4

Tecumseh 29183

OIL SEAL

Note: Included In Gasket Set Num 33233.

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 29314A

Valve, Intake (Std.)(Incl. Nos. 7, 8 & 9)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29315B

Valve, Intake (1/32" oversize)(Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313B

Valve, Exhaust (Std.)(Incl. Nos. 7,8 & 9)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" oversize)(Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 32555A

Crankshaft Assy. (Incl. Nos. 12 & 13)
(Superseded to 32555B)

$137.99

$

Usually ships in 3-12 days

0

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Tecumseh 32538

Piston & Pin Assy. (Incl. 2 of No. 16)(Std.)
(Superseded to 32538B)

$

$

Not available

14

Tecumseh 32548

Piston & Pin Assy. (Incl. 2 of No. 16)(.010 oversize)
(Superseded to 32548B)

$

$

Not available

14

Tecumseh 32549

Piston & Pin Assy. (Incl. 2 of No. 16)(.020 oversize)
(Superseded to 32549B)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assy., Connecting (Incl. Nos. 18, 19 & 20)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 26706

Bolt, Connecting

$

$

Currently unavailable

19

Tecumseh 28594

53020/22 GIL.HYDRO

$8.99

$

In Stock, only 2 left!

0

20

Tecumseh 27573

LOCKNUT

$

$

Currently unavailable

21

Tecumseh 33159

Camshaft, BCR, Extended
(Superseded to 33159A)

$

$

Not available

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 30757A

Cover, Cylinder (Incl. Nos. 24, 24A, 25, 106 & 148)
(Superseded to 30757C)

$

$

Not available

24

Tecumseh 30256

Seal, Oil

Note: Included In Gasket Set Num 33233.

$8.99

$

In Stock, only 1 left!

0

24A

Tecumseh 30318

Seal, Oil

Note: Included In Gasket Set Num 33233.

$7.49

$

In Stock, Qty 11

0

25

Tecumseh 27625

Plug, Oil filler (Incl. No. 148)

$2.49

$

In Stock, Qty 5

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Included In Gasket Set Num 33233.

$7.49

$

In Stock, only 4 left!

0

27

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

28

Tecumseh 30564

Screw
(Superseded to 650451)

$1.99

$

In Stock, Qty 6

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Included In Gasket Set Num 33233.

$16.99

$

In Stock, only 1 left!

0

33

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

34

Tecumseh 26073

Washer

$

$

Not available

35

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, only 4 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.99

$

In Stock, Qty 5

0

38

Tecumseh 27234

Gasket-Breather
(Superseded to 27234A)

Note: Included In Gasket Set Num 33233.

$5.99

$

In Stock, only 1 left!

0

39

Tecumseh 27666

Body Assy., Breather (Incl. Nos. 38 & 40)

$14.99

$

In Stock, only 4 left!

0

40

Tecumseh 27233

Element, Breather
(Superseded to 31410)

$1.99

$

In Stock, Qty 17

0

41

Tecumseh 27667

Gasket-Gear Case
(Superseded to 34146)

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

44

Tecumseh 32447

Breather Tube

$7.99

$

In Stock, only 3 left!

0

45

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Included In Gasket Set Num 33233.

$1.99

$

In Stock, Qty 6

0

46

Tecumseh 28416

Pipe, Intake
(Superseded to 28416A)

$

$

Not available

47

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 7

0

48

Tecumseh 30646

Screw

$8.99

$

In Stock, only 1 left!

0

53

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

54

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

55

Tecumseh 30091

Screw, Hex Slotted Hd.
(Superseded to 650139)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

In Stock, only 4 left!

0

56

Tecumseh 30322

Nut-Lock

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

Usually ships in 3-12 days

0

58

Tecumseh 31858

Jet-Main
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

63

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 31906

Decal, Name & Instruction
(Superseded to 36261)

$

$

Not available

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

68

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, only 4 left!

0

70

Tecumseh 33663

Housing Blower
(Superseded to 33663E)

$

$

Currently unavailable

71

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

73

Tecumseh 29716

Screw

$1.49

$

In Stock, only 4 left!

0

75

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

76

Tecumseh 33879

Control Assy., Speed (Incl. Nos. 53 thru 56)
(Superseded to 36677)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$47.99

$

Usually ships in 3-12 days

0

78

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Included In Gasket Set Num 33233.

$4.49

$

In Stock, Qty 20+

0

80

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

82

Tecumseh 32446

GROMMET

$1.99

$

In Stock, only 3 left!

0

84

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

87

Tecumseh 26756

Gasket

Note: Included In Gasket Set Num 33233.

$2.99

$

In Stock, Qty 20+

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

91

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

92

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

93

Tecumseh 31708

BRACKET, AIRCLEANER

$10.99

$

Usually ships in 3-12 days

0

94

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, Qty 20+

0

95

Tecumseh 31700

AIRCLEANER

$12.99

$

In Stock, only 1 left!

0

96

Tecumseh 31692

Body
(Superseded to 31715)

$21.99

$

In Stock, Qty 7

0

97

Tecumseh 31388

Wire, Ground
(Superseded to 35349)

$

$

Not available

102

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Included In Gasket Set Num 33233.

$1.49

$

In Stock, Qty 5

0

103

Tecumseh 30996

Muffler

$

$

Not available

104

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 14

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 2 left!

0

107

Tecumseh 30591

Gear Assy., Governor (Incl. No. 125)

$13.99

$

In Stock, Qty 16

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

110

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

111

Tecumseh 28371A

Bracket, Fuel tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

114

Tecumseh 33120

Tank Assy., Fuel (Incl. No. 116)
(Superseded to 35584)

$45.99

$

In Stock, only 3 left!

0

115

Tecumseh 410144B

Cap, Fuel
(Superseded to 33032)

$7.49

$

Usually ships in 3-12 days

0

116

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

Usually ships in 3-12 days

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 3 left!

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

125

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 5

0

126

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

127

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

128

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

129

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

131

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, only 4 left!

0

133

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

134

Tecumseh 33667

Cup, Starter

$

$

Not available

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 1 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

144

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

Usually ships in 3-12 days

0

145

Tecumseh 30997

Cover-Muffler

$1.99

$

In Stock, Qty 5

0

146

Tecumseh 31871

DECAL, AIRCLEANER
(Superseded to 36261)

$

$

Not available

148

Tecumseh 29673

Gasket

Note: Included In Gasket Set Num 33233.

$1.99

$

In Stock, only 2 left!

0

149

Toro 610932

Magneto (The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

150

Tecumseh 631070A

Carburetor (Incl. Nos. 58 & 57)
(Superseded to 631921)

$124.99

$

In Stock, only 1 left!

0

151

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 1 left!

0

152

Tecumseh 33233

Gasket Set
(Superseded to 33233A)

$16.99

$

In Stock, only 1 left!

0
