58013 - Toro 26" Tiller (SN: 003000001 - 003999999) (1973) CARBURETOR ASSEMBLY Parts Diagram

26" Tiller

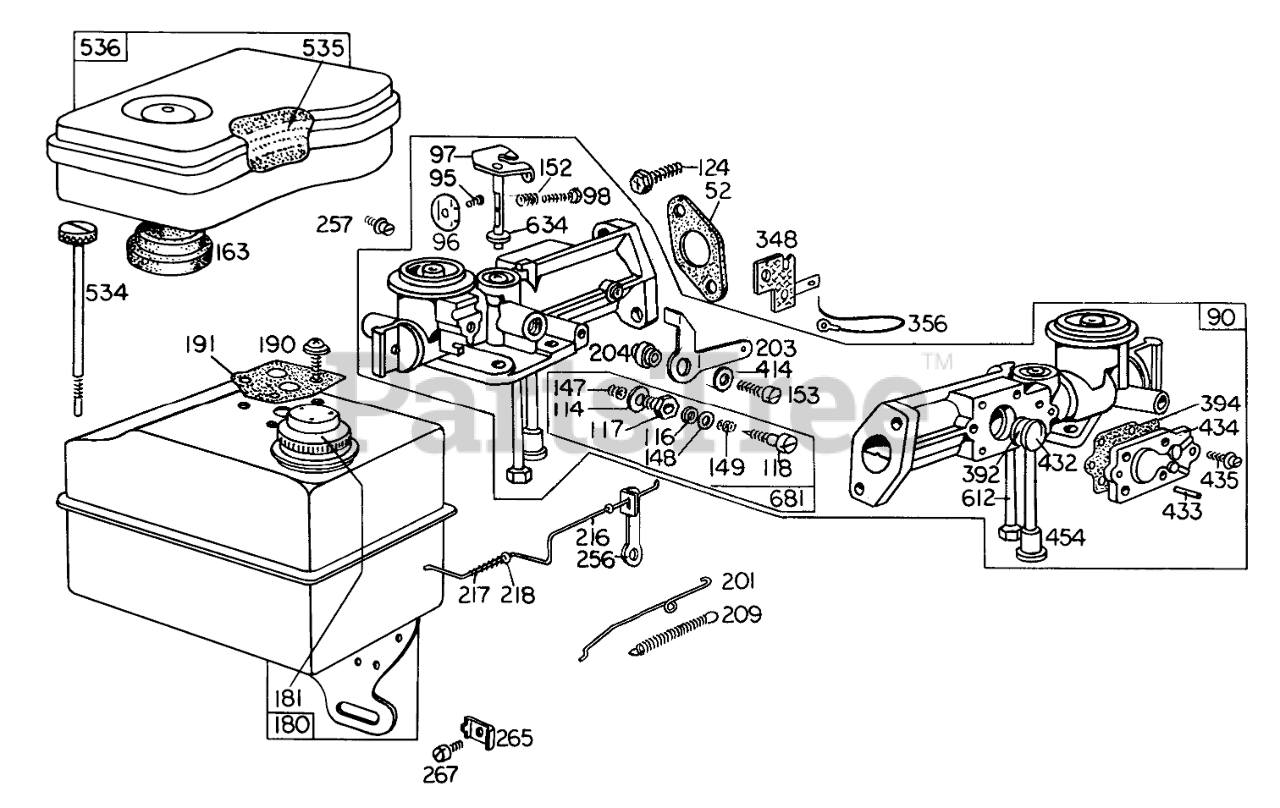

CARBURETOR ASSEMBLY Parts Diagram

  • Title

52

Briggs & Stratton 27355

Gasket-Carburetor
(Superseded to 27355S)

Note: Included in Gasket Set-Part No. 297275.

$3.99

$

In Stock, Qty 20+

0

90

Briggs & Stratton 296882

Carburetor Assy. (Choke-A-Matic)

$135.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93385

Screw-Throttle Valve Mounting Sem
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211203

Valve Throttle

$8.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 297961

Shaft and Lever-Throttle

$18.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 93392

Screw-Machine, Rd. Hd.
(Superseded to 93524)

$3.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 66594

Gasket Valve Nut
(Superseded to 691608)

$5.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 230590

Nut-Needle Valve
(Superseded to 690504)

$3.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

124

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 230591

Seat-Needle Valve
(Superseded to 692134)

$9.49

$

In Stock, only 4 left!

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

Usually ships in 2-12 days

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260746

Spring-Throttle Adj
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

153

Briggs & Stratton 93177

Screw-Bell Crank

$1.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 27660

51048 SUP.SHEET TIL

Note: Included in Gasket Set-Part No. 297275.

$

$

Not available

180

Briggs & Stratton 296591

Tank Assy.-Fuel
(Superseded to 397789)

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

190

Briggs & Stratton 93341

Screw-Fuel Tank Mtg.
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 27911

Gasket-Fuel Tank Mtg.
(Superseded to 272409S)

Note: Included in Gasket Set-Part No. 297275.

$3.99

$

In Stock, Qty 20+

0

201

Briggs & Stratton 260898

Link-Governor
(Superseded to 261663)

$19.99

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 221147

Crank-Bell

$3.49

$

Usually ships in 2-12 days

0

204

Briggs & Stratton 230531

Collar
(Superseded to 690503)

$

$

Not available

209

Briggs & Stratton 260041

Spring-Governor
(Superseded to 692205)

$6.99

$

In Stock, only 1 left!

0

216

Briggs & Stratton 260449

Link-Choke

$9.49

$

In Stock, only 1 left!

0

217

Briggs & Stratton 260189

Spring-Choke Link

$2.99

$

Usually ships in 2-12 days

0

218

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

256

Briggs & Stratton 220952

Lever-Speed Adjuster

$

$

Not available

257

Briggs & Stratton 93263

Screw-Fil. Hd.

$

$

Not available

265

Briggs & Stratton 221370

Clamp-Casing
(Superseded to 690393)

$5.99

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

348

Briggs & Stratton 296110

Plate Assembly-Stop Switch
(Superseded to 691941)

$152.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 391115

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, Qty 10

0

394

Briggs & Stratton 270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

414

Briggs & Stratton 220982

Washer
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 5

0

433

Briggs & Stratton 93265

Pin-Roll
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210959

Cover-Diaphragm
(Superseded to 691713)

$10.99

$

In Stock, only 2 left!

0

435

Briggs & Stratton 93141

Screw
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

454

Briggs & Stratton 296178

Housing-Fuel Pipe

$

$

Not available

535

Briggs & Stratton 27987

Element-Air Cleaner
(Superseded to 27987S)

$6.99

$

In Stock, Qty 16

0

536

Briggs & Stratton 296766

Cleaner Assy.-Air

$25.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

$7.49

$

In Stock, Qty 9

0

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

681

Briggs & Stratton 299060

Kit-Needle Valve

$21.99

$

In Stock, only 3 left!

0
