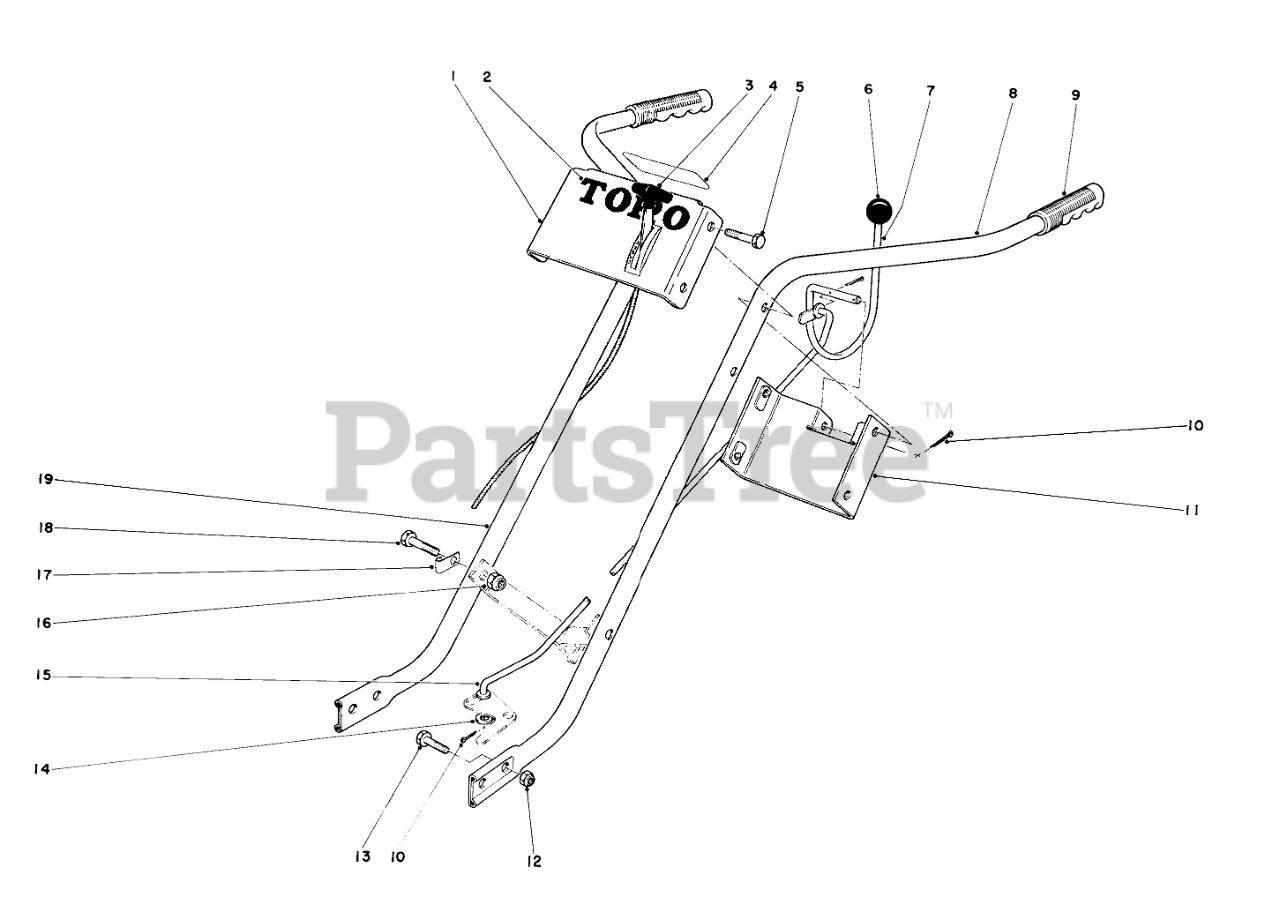

58010 - Toro 26" Tiller (SN: 002000001 - 002999999) (1972) HANDLE ASSEMBLY Parts Diagram

26" Tiller

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-9290

Control Plate

$

$

Currently unavailable

2

Toro 7-9440

Decal, Toro
(Superseded to 20-4690)

$7.99

$

Usually ships in 3-6 days

0

3

Toro 7-3361

Throttle

$

$

Not available

4

Toro 7-9450

Decal Clutch

$

$

Currently unavailable

5

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Toro 233-22

KNOB-CONTROL

$25.99

$

Usually ships in 3-6 days

0

7

Toro 7-9320

Clutch Control

$

$

Not available

8

Toro 7-9270

Handle L.H.

$

$

Not available

9

Toro 235-19

Handle Grip

$

$

Not available

10

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

11

Toro 7-9300

Handle Brace

$

$

Currently unavailable

12

Toro 3215-2

SCREW-HH

$

$

Currently unavailable

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

15

Toro 7-0078

Clutch Rod

$

$

Not available

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

17

Toro 7-0077

Clip

$

$

Not available

18

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

19

Toro 7-9280

Handle R.H.

$

$

Not available
