58007 - Toro 20" Tiller (SN: 007000001 - 007999999) (1977) CHASSIS ASSEMBLY Parts Diagram

20" Tiller

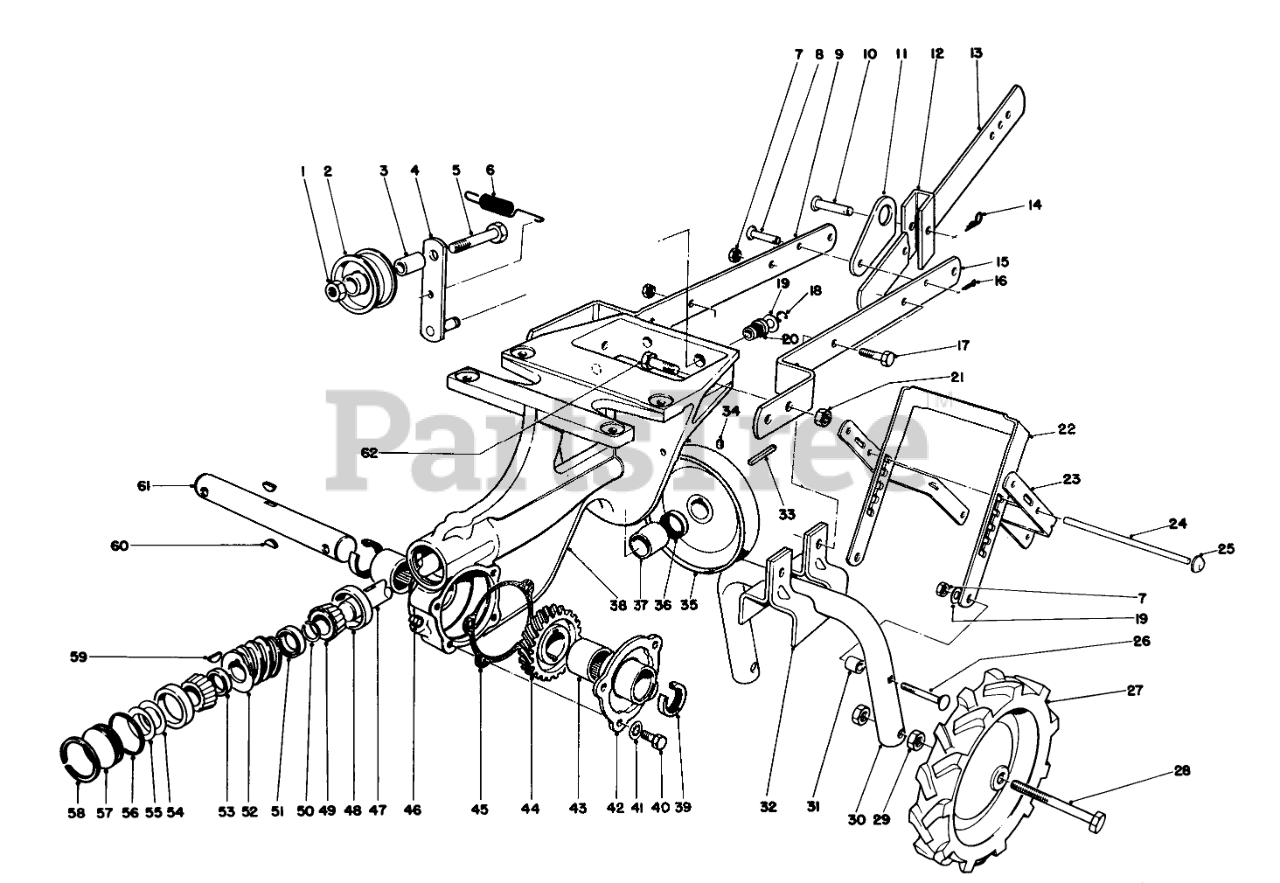

CHASSIS ASSEMBLY Parts Diagram

  • Title

1

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

2

Toro 7-0056

PULLEY IDLER

$

$

Not available

3

Toro 5-2465

Spacer

$

$

Currently unavailable

4

Toro 26-7100

Idler Arm

$

$

Not available

5

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 26-3730

TENSION SPRING

$

$

Not available

7

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

8

Toro 283-14

PIN-CLEVIS

$5.99

$

Usually ships in 3-6 days

0

9

Toro 26-3120

Drawbar R.H.

$

$

Not available

10

Toro 283-23

CLEVIS
(Superseded to 283-82)

$5.49

$

Usually ships in 3-6 days

0

11

Toro 26-3750

Latch-Depth Gauge

$

$

Not available

12

Toro 26-3740

DEPTH GUAGE BRKT

$

$

Not available

13

Toro 26-3760

Depth Gauge

$

$

Not available

14

Toro 3290

216 Washer

$

$

Currently unavailable

15

Toro 26-5850

Drawbar L.H.

$

$

Not available

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 32120-3

Ring-Snap
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 7-0023

IDLER BRG

$

$

Not available

21

Toro 32149-10

NUT-KEPS

$3.49

$

Usually ships in 3-6 days

0

22

Toro 26-3180

Lever Wheel Adjustment

$

$

Not available

23

Toro 26-3130

HANDLE SUPPORT

$

$

Not available

24

Toro 26-3230

Shaft-Wheel Adjustment

$

$

Not available

25

Toro 3290-390

PUSH ON

$

$

Not available

26

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

27

Toro 26-3610

Wheel

$

$

Not available

28

Toro 26-3600

Wheel Bolt

$

$

Not available

29

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

30

Toro 26-3140

Axle Yoke

$

$

Not available

31

Toro 5-1537

Spacer

$

$

Not available

32

Toro 26-3150

Saddle Yoke

$

$

Not available

33

Toro 7-0036

KEY-SQUARE

$

$

Not available

34

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

35

Toro 26-3360

Pulley-Oil Seal

$

$

Not available

36

Toro 253-84

SEAL-OIL

$11.99

$

Usually ships in 3-6 days

0

37

Toro 256-167

BUSHING

$

$

Not available

38

Toro 26-2280

Chassis

$

$

Not available

39

Toro 7-0045

SEAL-OIL

$17.99

$

Usually ships in 3-6 days

0

40

Toro 3235-18

1/4-20 X 5/8 CAPSCREW

$10.99

$

Usually ships in 3-6 days

0

41

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

42

Toro 7-0048

Cover

$

$

Not available

43

Toro 252-88

Needle Bearing
(Superseded to 1528)

$59.99

$

In Stock, only 1 left!

0

44

Toro 7-0047

WORM WHEEL

$

$

Not available

45

Toro 7-0020

GASKET

$

$

Not available

46

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

47

Toro 7-0012

WORM SHAFT

$

$

Not available

48

Toro 254-79

BEARING-ROLLER, CUP

$7.49

$

In Stock, Qty 12

0

49

Toro 254-78

BEARING-CONE

$13.99

$

In Stock, Qty 17

0

50

Toro 7-0013

RETAINER RING

$8.49

$

Usually ships in 3-6 days

0

51

Toro 26-5800

Spacer Rear

$

$

Not available

52

Toro 7-0016

WORM GEAR

$

$

Not available

53

Toro 7-0015

SPACER

$

$

Not available

54

Toro 23-7690

SHIM

$

$

Not available

55

Toro 23-7700

SHIM

$

$

Not available

56

Toro 237-71

O-RING

$9.49

$

Usually ships in 3-6 days

0

57

Toro 23-7710

Plug

$

$

Not available

58

Toro 7-0018

INTRNL RETAINING RING

$

$

Not available

59

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

60

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

61

Toro 7-0046

WORM WHEEL SHAFT

$

$

Not available

62

Toro 323-18

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

Toro 59063

Til Row Attach. (Optional)

Note: Not illustrated

$

$

Currently unavailable

Toro 59063

Til Row Attach. (Optional)

Note: Optional equipment

$

$

Currently unavailable

Toro 17-8200

Pick Tine Kit (Optional)

Note: Optional equipment

$

$

Currently unavailable

Toro 17-8200

Pick Tine Kit (Optional)

Note: Not illustrated

$

$

Currently unavailable

Toro 17-8620

Slasher Tine Kit (Optional)

Note: Not illustrated

$

$

Currently unavailable

Toro 17-8620

Slasher Tine Kit (Optional)

Note: Optional equipment

$

$

Currently unavailable

Toro 7-2084

Bolo Tine Extension Kit (Optional)

Note: Not illustrated

$

$

Currently unavailable

Toro 7-2084

Bolo Tine Extension Kit (Optional)

Note: Optional equipment

$

$

Currently unavailable

Toro 7-2104

8" Furrowing Tool (Optional)

Note: Not illustrated

$

$

Not available

Toro 7-2104

8" Furrowing Tool (Optional)

Note: Optional equipment

$

$

Not available
