58007 - Toro 20" Tiller (SN: 002000001 - 002999999) (1982) MAGNETO NO. 611025 Parts Diagram

20" Tiller

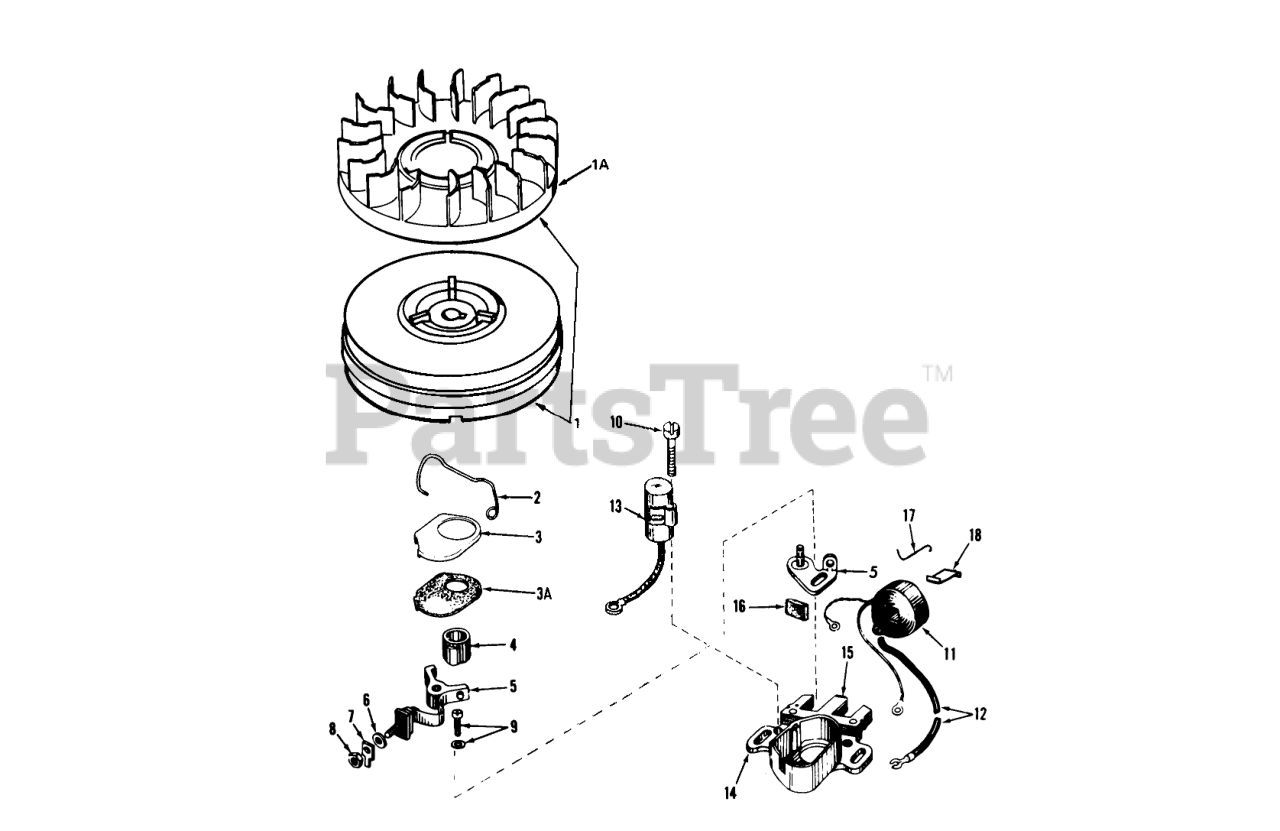

MAGNETO NO. 611025 Parts Diagram

  • Title
1

Tecumseh 611024

Flywheel (Incl. Ref. #1A)

Note: The complete magneto is not available as an assembly.

$

$

Not available

1A

Tecumseh 610933

Fan

Note: The complete magneto is not available as an assembly.

$

$

Not available

2

Tecumseh 30551

Spring Breaker Box

Note: The complete magneto is not available as an assembly.

$

$

Not available

3

Tecumseh 610947

Cover-Dust

Note: The complete magneto is not available as an assembly.

$3.99

$

Usually ships in 3-12 days

0

3A

Tecumseh 610955

Gasket-Dust Cover

Note: The complete magneto is not available as an assembly.

$

$

Not available

4

Tecumseh 30992

Cam-Breaker

Note: The complete magneto is not available as an assembly.

$

$

Not available

5

Tecumseh 30547A

Breaker Assy.

Note: The complete magneto is not available as an assembly.

$18.99

$

In Stock, only 2 left!

0

6

Tecumseh 610385

Washer

Note: The complete magneto is not available as an assembly.

$

$

Not available

7

Tecumseh 33356

Terminal, Ground

Note: The complete magneto is not available as an assembly.

$1.99

$

In Stock, Qty 5

0

8

Tecumseh 610408

DECAL

Note: The complete magneto is not available as an assembly.

$

$

Currently unavailable

9

Tecumseh 29181

Breaker Screw

Note: The complete magneto is not available as an assembly.

$

$

Not available

10

Tecumseh 610593

Condenser Screw

Note: The complete magneto is not available as an assembly.

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 30560A

Coil Assy. (Incl. Ref. #12)

Note: The complete magneto is not available as an assembly.

$48.99

$

In Stock, only 1 left!

0

12

Tecumseh 30554

Wire, Lead

Note: The complete magneto is not available as an assembly.

$

$

Not available

13

Tecumseh 30548B

Condenser

Note: The complete magneto is not available as an assembly.

$13.99

$

In Stock, Qty 10

0

14

Tecumseh 30545

Core & Plate

Note: The complete magneto is not available as an assembly.

$

$

Not available

15

Tecumseh 30561B

Stator Assy. (Incl. Ref.#2, 3, 3A, 5 thru 14 & 16 thru 18)

Note: The complete magneto is not available as an assembly.

$

$

Not available

16

Tecumseh 30549

Felt,Cam Wiper

Note: The complete magneto is not available as an assembly.

$1.99

$

In Stock, only 4 left!

0

17

Tecumseh 31311

Clip, Coil

Note: The complete magneto is not available as an assembly.

$

$

Not available

18

Tecumseh 29629

Spring Coil Wedge

Note: The complete magneto is not available as an assembly.

$

$

Not available
