58007 - Toro 20" Tiller (SN: 001000001 - 001999999) (1981) TINE AND ENGINE ASSEMBLY Parts Diagram

20" Tiller

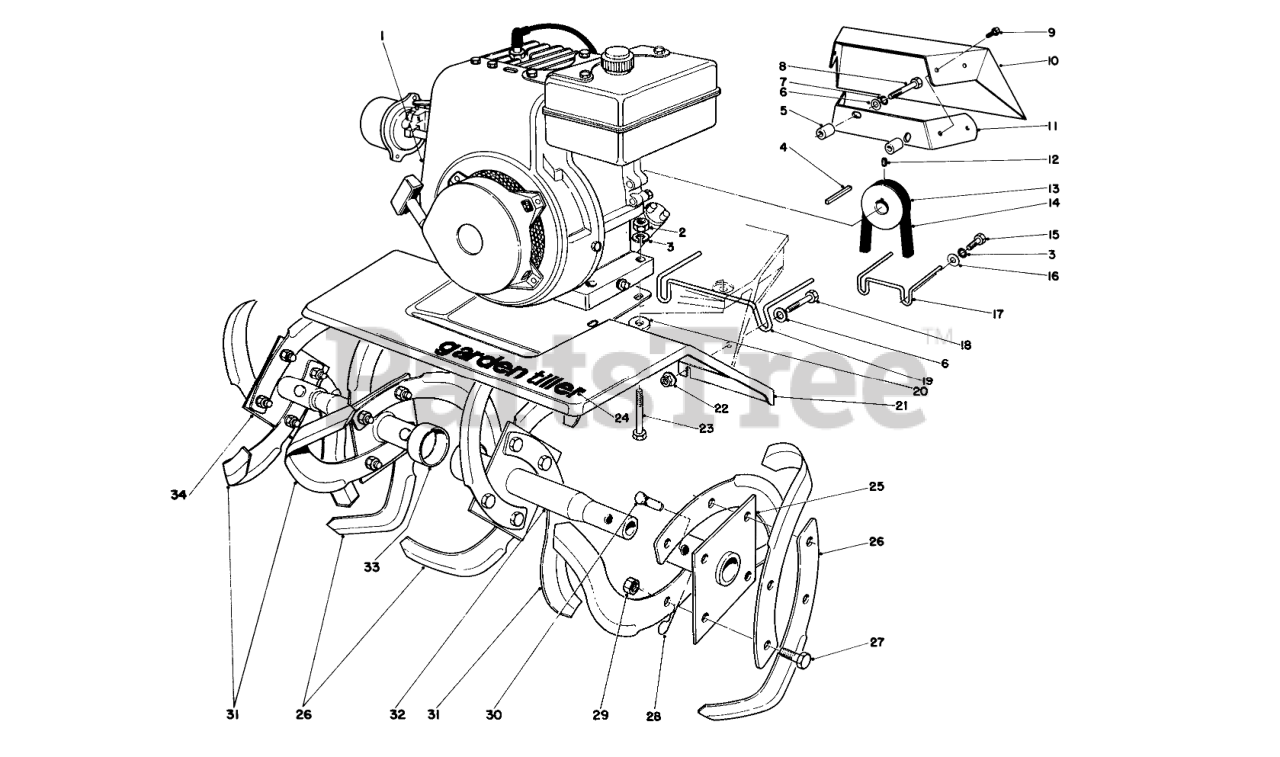

TINE AND ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 221-510

Engine

$

$

Currently unavailable

2

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 7-0036

KEY-SQUARE

$

$

Not available

5

Toro 24-8990

Spacer

$

$

Not available

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 26-3670

PULLEY GUARD

$

$

Not available

11

Toro 26-3650

Strap-Belt Shield

$

$

Not available

12

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

13

Toro 27-5820

Engine Pulley

$

$

Not available

14

Toro 26-3340

V-BELT

$86.99

$

Usually ships in 3-6 days

0

15

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 26-3370

Belt Guide

$

$

Not available

18

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 26-4030

BELT GUIDE

$

$

Not available

20

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

21

Toro 26-3660

TINE SHROUD

$

$

Not available

22

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

23

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

24

Toro 17-8340

Decal

$

$

Not available

25

Toro 24-6960

Axle L.H.Outer

$

$

Not available

26

Toro 7-0103

RH TINE

$67.99

$

Usually ships in 3-6 days

0

27

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

29

Toro 32149-10

NUT-KEPS

$3.49

$

Usually ships in 3-6 days

0

30

Toro 7-2116

TINE PIN

$8.99

$

In Stock, only 4 left!

0

31

Toro 7-0102

LH TINE

$

$

Not available

32

Toro 24-6970

Axle L.H. Inner

$

$

Not available

33

Toro 24-6950

Axle R.H. Inner

$

$

Not available

34

Toro 24-6940

Axle R.H. Outer

$

$

Not available
