58007 - Toro 20" Tiller (SN: 001000001 - 001999999) (1981) ENGINE TECUMSEH MODEL H35-45481N Parts Diagram

20" Tiller

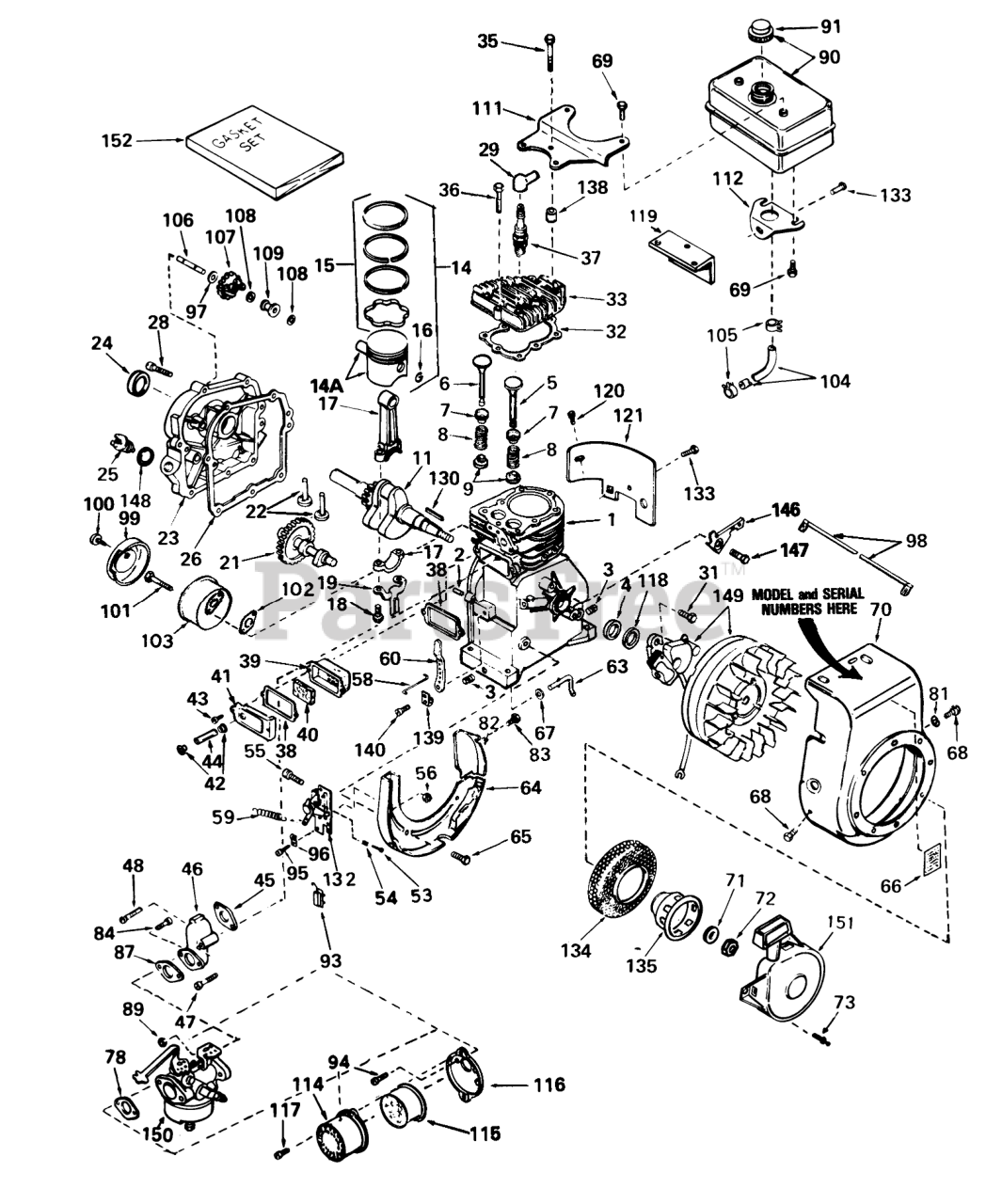

ENGINE TECUMSEH MODEL H35-45481N Parts Diagram

  • Title

1

Tecumseh 34708

Cylinder Assembly (Incl. Ref. #2, 3 & 4)
(Superseded to 36560A)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 3 left!

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 29314A

Valve, Intake (Std.)(Incl. Ref. #7, 8 & 9)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29315B

Valve, Intake (1/32" oversize)(Incl. Ref.#7,8&9)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313B

Valve, Exhaust (Std.)(Incl. Ref.#7,8&9)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" oversize)(Incl. Ref.#7,8&9)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 34709

481-1253 SENATOR RO
(Superseded to 37303)

$127.99

$

Usually ships in 3-12 days

0

14

Tecumseh 34514

Piston, Pin & Ring Assy. (Std.)(Incl. Ref. #14A, 15 & 16)

$

$

Not available

14

Tecumseh 34515

Piston, Pin & Ring Assy. (.010 oversize)(Incl. Ref. #14A, 15 & 16)

$

$

Not available

14

Tecumseh 34516

Piston, Pin & Ring Assy. (.020 oversize)(Incl. Ref. #14A, 15 & 16)

$79.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 32538B

Piston & Pin Assy. (Incl. Ref. #16)(Std.)

$

$

Not available

14A

Tecumseh 32548B

Piston & Pin Assy. (Incl. Ref. #16)(.010 oversize)

$

$

Not available

14A

Tecumseh 32549B

Piston & Pin Assy. (Incl. Ref. #16)(.020 oversize)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assy., Connecting (Incl. Ref. #18 & 19)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 28594

53020/22 GIL.HYDRO

$8.99

$

In Stock, only 2 left!

0

21

Tecumseh 33149

Camshaft (Compression Release
(Superseded to 33149A)

$

$

Not available

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 34773

Cover, Cylinder (Incl. Ref. #24, 25, 106 & 148)
(Superseded to 30941E)

$98.99

$

Usually ships in 3-12 days

0

24

Tecumseh 26208

Seal Oil

$8.49

$

Usually ships in 3-12 days

0

25

Tecumseh 27625

Plug, Oil Filler (Incl. Ref. #148)

$2.49

$

In Stock, Qty 8

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Included In Gasket Set Num 33233

$7.49

$

In Stock, Qty 8

0

28

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 4 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Included In Gasket Set Num 33233

$16.99

$

In Stock, only 1 left!

0

33

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

35

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 15

0

37

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 15

0

38

Tecumseh 27234

Gasket-Breather
(Superseded to 27234A)

Note: Included In Gasket Set Num 33233

$5.99

$

In Stock, only 1 left!

0

39

Tecumseh 27666

Body-Breather

$14.99

$

In Stock, only 4 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

41

Tecumseh 34146

Cover-Breather

$3.99

$

In Stock, only 2 left!

0

42

Tecumseh 32446

GROMMET

$1.99

$

In Stock, only 3 left!

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

44

Tecumseh 32447

Breather Tube

$7.99

$

In Stock, only 4 left!

0

45

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Included In Gasket Set Num 33233

$1.99

$

In Stock, Qty 9

0

46

Tecumseh 28416

Pipe, Intake
(Superseded to 28416A)

$

$

Not available

47

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 9

0

48

Tecumseh 30646

Screw

$8.99

$

In Stock, only 2 left!

0

53

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

54

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

55

Toro t650139

Screw, Fil. Hd.

$

$

Currently unavailable

56

Toro t30322

Nut & Lockwasher Assy.

$

$

Currently unavailable

58

Tecumseh 31858

Jet-Main
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

59

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

63

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 34374

Decal, Instruction
(Superseded to 36261)

$

$

Not available

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

68

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, Qty 5

0

69

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

Usually ships in 3-12 days

0

70

Tecumseh 33663B

Housing, Blower
(Superseded to 33663E)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order four (4) nuts illustrated to attach replacement starter to replacement blower ho

$

$

Not available

71

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 6

0

73

Rivet, Pop (Can be purchased locally)

$

$

Not available

78

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Included In Gasket Set Num 33233

$4.49

$

In Stock, Qty 20+

0

81

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

82

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

83

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

87

Tecumseh 26756

Gasket

Note: Included In Gasket Set Num 33233

$2.99

$

In Stock, Qty 10

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

90

Tecumseh 34711

Tank Assy., Fuel (Incl. Ref. #69 & 91)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

91

Tecumseh 32387A

Cap, Fuel
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

93

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 1 left!

0

94

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

Usually ships in 3-12 days

0

95

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 1 left!

0

96

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

97

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

98

Tecumseh 34231

Wire-Ground

$3.99

$

Usually ships in 3-12 days

0

99

Tecumseh 30997

Cover-Muffler

$1.99

$

In Stock, Qty 5

0

100

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

Usually ships in 3-12 days

0

101

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

102

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Included In Gasket Set Num 33233

$1.49

$

Usually ships in 3-12 days

0

103

Tecumseh 30996

Muffler

$

$

Not available

104

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 10

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

107

Tecumseh 30591

Gear Assy., Governor (Incl. Ref. #97)

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

111

Tecumseh 28371B

Plate-Fuel Tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 34182

Bracket-Fuel Tank

$13.99

$

Usually ships in 3-12 days

0

114

Tecumseh 31715

Body-Air Cleaner

$21.99

$

In Stock, Qty 7

0

115

Tecumseh 31700

AIRCLEANER

$12.99

$

In Stock, only 1 left!

0

116

Tecumseh 31708

BRACKET, AIRCLEANER

$10.99

$

Usually ships in 3-12 days

0

117

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

118

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

119

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

130

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

132

Tecumseh 33879A

Speed Control Assy. (Incl. Ref. #53 thru 56)
(Superseded to 36677)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly indudes screws and nuts for mounting. Replacement baffle has threaded holes.

$47.99

$

In Stock, only 1 left!

0

133

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

134

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

135

Tecumseh 34694

Cup-Starter

$11.99

$

Usually ships in 3-12 days

0

138

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

146

Tecumseh 34212

Bracket-Hold Down

$1.99

$

In Stock, Qty 5

0

147

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

148

Tecumseh 29673

Gasket

Note: Included In Gasket Set Num 33233

$1.99

$

In Stock, only 3 left!

0

149

Tecumseh 611025

Magneto (The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

150

Tecumseh 631921

Carburetor (Incl. Ref. #87)

$124.99

$

In Stock, only 1 left!

0

151

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order four (4) nuts illustrated to attach replacement starter to replacement blower ho

$68.99

$

In Stock, only 2 left!

0

152

Tecumseh 33233

Gasket Set
(Superseded to 33233A)

$16.99

$

In Stock, only 1 left!

0
