58007 - Toro 20" Tiller (SN: 000000001 - 000999999) (1980) ENGINE TECUMSEH MODEL H35-45481M Parts Diagram

20" Tiller

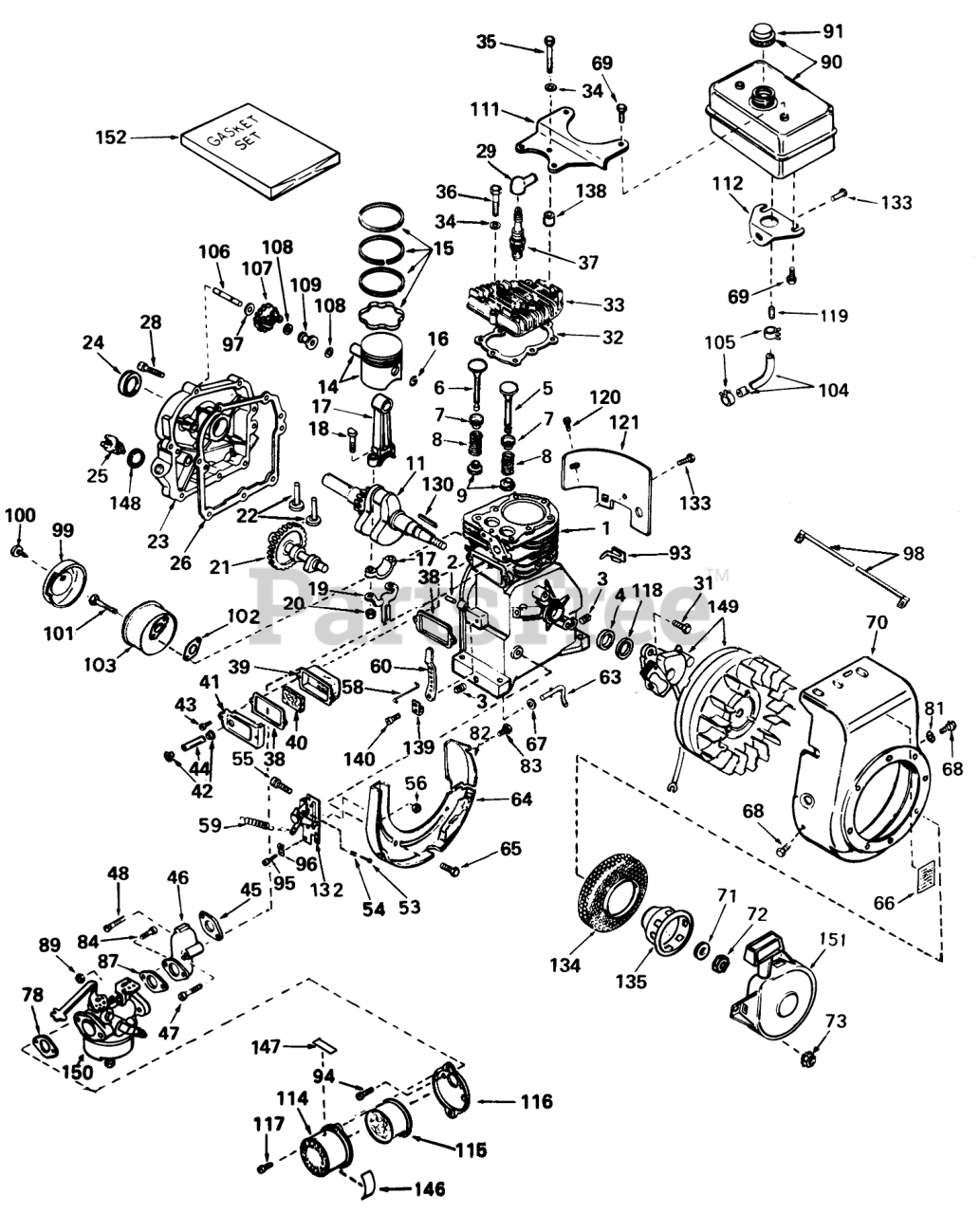

ENGINE TECUMSEH MODEL H35-45481M Parts Diagram

  • Title

1

Tecumseh 33164

Cylinder Assy. (Incl. Nos. 2, 3 & 4)
(Superseded to 33164A)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 29183

OIL SEAL

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 29314A

Valve, Intake (Std.)(Incl. Nos. 7, 8 & 9)
(Superseded to 29314C)

$5.99

$

Usually ships in 3-12 days

0

5

Tecumseh 29315B

Valve, Intake (1/32" oversize)(Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313B

Valve, Exhaust (Std.)(Incl. Nos. 7, 8 & 9) Valve,
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" oversize)(Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

11

Tecumseh 32555A

Crankshaft Assy.
(Superseded to 32555B)

$137.99

$

Usually ships in 3-12 days

0

14

Tecumseh 32538

Piston & Pin Assy. (Incl. 2 of No. 16)(Std.)
(Superseded to 32538B)

$

$

Not available

14

Tecumseh 32548

Piston & Pin Assy. (Incl. 2 of No. 16)(.010 oversize)
(Superseded to 32548B)

$

$

Not available

14

Tecumseh 32549

Piston & Pin Assy. (Incl. 2 of No. 16)(.020 oversize)
(Superseded to 32549B)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assy., Connecting (Incl. Nos. 18, 19 & 20)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 26706

Bolt, Connecting

$

$

Currently unavailable

19

Tecumseh 28594

53020/22 GIL.HYDRO

$8.99

$

In Stock, only 2 left!

0

20

Tecumseh 27573

LOCKNUT

$

$

Currently unavailable

21

Tecumseh 33149

Camshaft (Compression Release
(Superseded to 33149A)

$

$

Not available

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 30941D

Cover, Cylinder (Incl. Nos. 24, 25, 106 & 148)
(Superseded to 30941E)

$98.99

$

Usually ships in 3-12 days

0

24

Tecumseh 30256

Seal, Oil

$8.99

$

In Stock, only 1 left!

0

25

Tecumseh 27625

Plug, Oil Filler (Incl. No.148)

$2.49

$

In Stock, Qty 5

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Included In Gasket Set Num 33233.

$7.49

$

In Stock, only 4 left!

0

28

Tecumseh 30564

Screw
(Superseded to 650451)

$1.99

$

In Stock, only 2 left!

0

29

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Included In Gasket Set Num 33233.

$16.99

$

In Stock, only 1 left!

0

33

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

34

Tecumseh 26073

Washer

$

$

Not available

35

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, Qty 6

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.99

$

In Stock, Qty 8

0

38

Tecumseh 27234

Gasket-Breather
(Superseded to 27234A)

Note: Included In Gasket Set Num 33233.

$5.99

$

In Stock, only 1 left!

0

39

Tecumseh 27666

Body-Breather

$14.99

$

In Stock, only 4 left!

0

40

Tecumseh 27233

Element, Breather
(Superseded to 31410)

$1.99

$

In Stock, Qty 18

0

41

Tecumseh 27667

Gasket-Gear Case
(Superseded to 34146)

$3.99

$

In Stock, only 1 left!

0

42

Tecumseh 32446

GROMMET

$1.99

$

In Stock, only 3 left!

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

44

Tecumseh 32447

Breather Tube

$7.99

$

In Stock, only 3 left!

0

45

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Included In Gasket Set Num 33233.

$1.99

$

In Stock, Qty 6

0

46

Tecumseh 28416

Pipe, Intake
(Superseded to 28416A)

$

$

Not available

47

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 7

0

48

Tecumseh 30646

Screw

$8.99

$

In Stock, only 1 left!

0

53

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

54

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

55

Tecumseh 650139

Screw

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

In Stock, only 4 left!

0

56

Tecumseh 30322

Nut-Lock

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

Usually ships in 3-12 days

0

58

Tecumseh 31858

Jet-Main
(Superseded to 37735)

$13.99

$

Usually ships in 3-12 days

0

59

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

Usually ships in 3-12 days

0

63

Tecumseh 31334

Rod-Governor

$5.49

$

Usually ships in 3-12 days

0

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 32078

INSTRUCTION DECAL
(Superseded to 36261)

$

$

Not available

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

68

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, only 4 left!

0

69

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, Qty 5

0

70

Tecumseh 33663

Housing Blower
(Superseded to 33663E)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order four (4) nuts illustrated to attach replacement starter to replacement blower ho

$

$

Currently unavailable

71

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

73

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order four (4) nuts illustrated to attach replacement starter to replacement blower ho

$1.99

$

In Stock, Qty 7

0

78

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Included In Gasket Set Num 33233.

$4.49

$

In Stock, Qty 20+

0

81

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

82

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

83

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

87

Tecumseh 26756

Gasket

Note: Included In Gasket Set Num 33233.

$2.99

$

In Stock, only 2 left!

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

90

Tecumseh 33120

Tank Assy., Fuel (Incl. Nos. 69 & 91)
(Superseded to 35584)

$45.99

$

In Stock, only 3 left!

0

91

Tecumseh 410144B

Cap, Fuel
(Superseded to 33032)

$7.49

$

Usually ships in 3-12 days

0

93

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, only 4 left!

0

94

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

95

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

96

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

97

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 5

0

98

Tecumseh 31388

Wire, Ground
(Superseded to 35349)

$

$

Not available

99

Tecumseh 30997

Cover-Muffler

$1.99

$

In Stock, Qty 5

0

100

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, Qty 5

0

101

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

102

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Included In Gasket Set Num 33233.

$1.49

$

In Stock, Qty 5

0

103

Tecumseh 30996

Muffler

$

$

Not available

104

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 2 left!

0

107

Tecumseh 30591

Gear Assy., Governor (Incl. No. 97)

$13.99

$

Usually ships in 3-12 days

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

111

Tecumseh 28371B

Plate-Fuel Tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

114

Tecumseh 31692

Body
(Superseded to 31715)

$21.99

$

In Stock, Qty 7

0

115

Tecumseh 31700

AIRCLEANER

$12.99

$

Usually ships in 3-12 days

0

116

Tecumseh 31708

BRACKET, AIRCLEANER

$10.99

$

Usually ships in 3-12 days

0

117

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

118

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

119

Tecumseh 28819

Spring, Coil

$

$

Not available

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

130

Tecumseh 610949

Key, Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

132

Tecumseh 33879

Speed Control Assy. (Incl. Nos. 53 thru 56)
(Superseded to 36677)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$47.99

$

Usually ships in 3-12 days

0

133

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

134

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

135

Tecumseh 33667

Cup, Starter

$

$

Not available

138

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 1 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

146

Tecumseh 31871A

Decal, Air Cleaner
(Superseded to 36261)

$

$

Not available

147

Tecumseh 31268

Decal, "Choke"

$

$

Currently unavailable

148

Toro 39673

Gasket, Oil Filler

Note: Included In Gasket Set Num 33233.

$

$

Currently unavailable

149

Tecumseh 610940A

Magneto (The complete magneto is not available as an assembly The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

150

Tecumseh 631921

Carburetor (Incl. No. 87)

$124.99

$

In Stock, only 1 left!

0

151

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order four (4) nuts illustrated to attach replacement starter to replacement blower ho

$68.99

$

In Stock, only 1 left!

0

152

Tecumseh 33233

Gasket Set
(Superseded to 33233A)

$16.99

$

Usually ships in 3-12 days

0
