58000 - Toro 26" Tiller (SN: 009000001 - 009999999) (1969) HANDLE ASSEMBLY Parts Diagram

26" Tiller

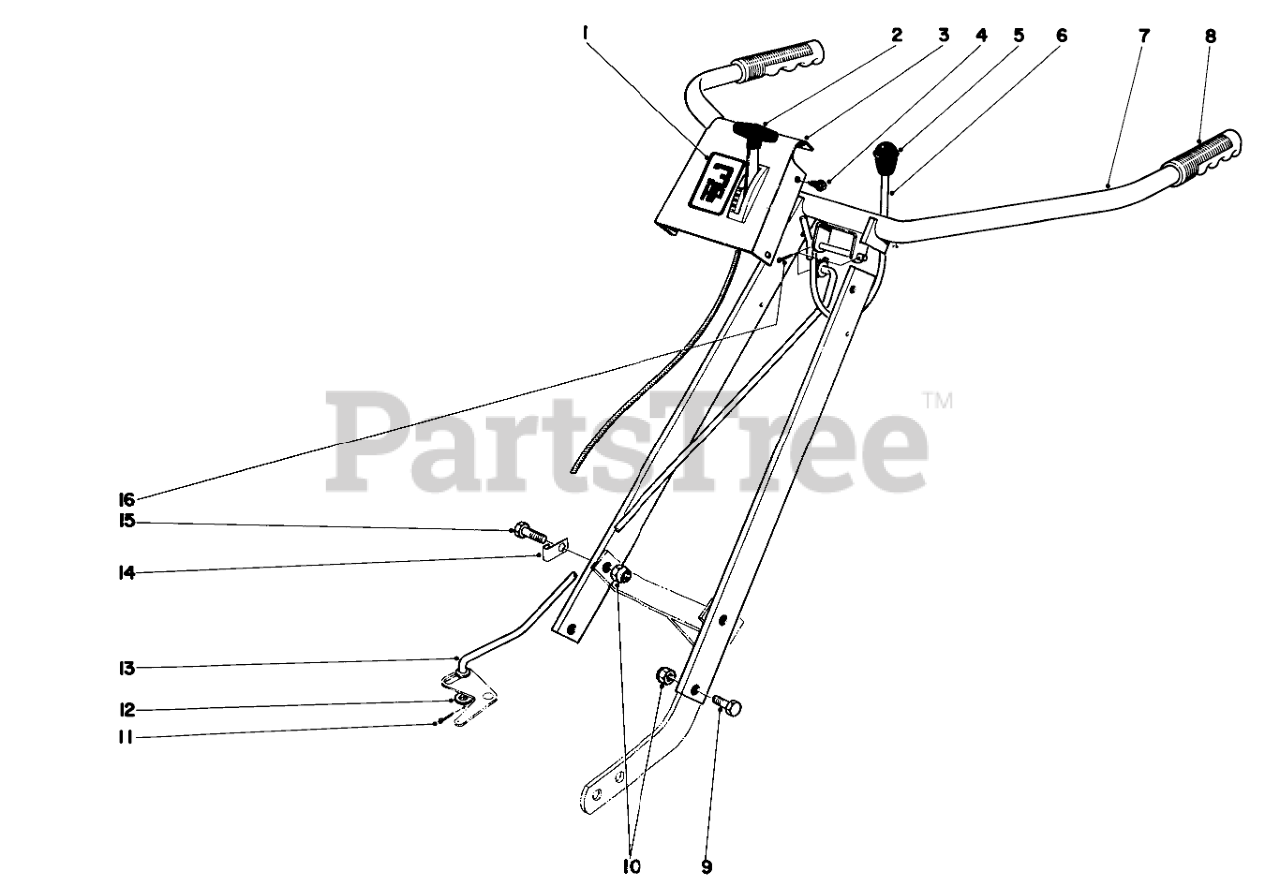

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 7-4340

Decal

$

$

Currently unavailable

2

Toro 7-3361

Throttle

$

$

Not available

3

Toro 7-3365

Cover Handle

$

$

Currently unavailable

4

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

5

Toro 233-18

Knob
(Superseded to 233-22)

$25.99

$

Usually ships in 3-6 days

0

6

Toro 7-0088

Shift Lever

$

$

Currently unavailable

7

Toro 7-0087

Handle Bar

$

$

Currently unavailable

8

Toro 235-17

Handle Grip

$

$

Currently unavailable

9

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

11

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

12

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

13

Toro 7-0078

Clutch Rod

$

$

Not available

14

$

$

Not available

15

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

16

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
