58000 - Toro 26" Tiller (SN: 009000001 - 009999999) (1969) ENGINE MODEL NO. H30-35168H PARTS LIST Parts Diagram

26" Tiller

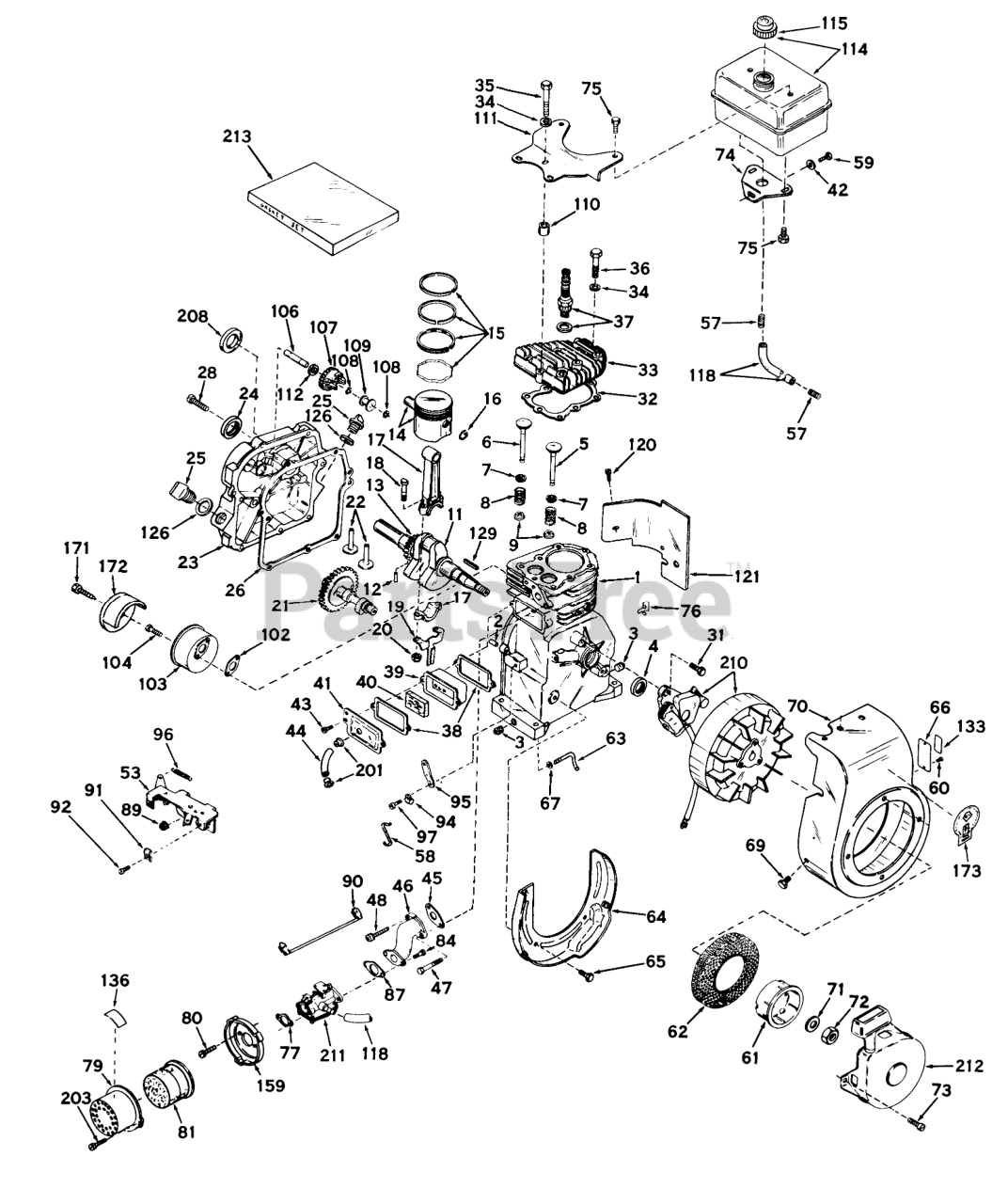

ENGINE MODEL NO. H30-35168H PARTS LIST Parts Diagram

  • Title

1

Tecumseh 32668

Cylinder Assy.(Incl. Nos.2, 3 &4)
(Superseded to 32668A)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 29183

OIL SEAL

Note: Included in Gasket Set part no. 31346E

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 29314A

Valve, Intake (Standard)(Incl. Nos. 7, 8 & 9)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29316A

Valve, Intake (1/32" oversize)(Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313A

Valve, Exhaust (Standard)(Incl. Nos. 7, 8 & 9)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315A

Valve, Exahust (1/32" oversize)(Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 31737

Crankshaft Assy. (Incl. Nos. 12 & 13)
(Superseded to 32555B)

$137.99

$

Usually ships in 3-12 days

0

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Tecumseh 31761

Piston & Pin Assy. (Standard)(Incl. 2 of No. 16)
(Superseded to 31761B)

$40.99

$

Usually ships in 3-12 days

0

14

Tecumseh 32662

Piston & Pin Assy. (Incl. 2 of No. 16)(.010 oversize)
(Superseded to 32662B)

$30.99

$

Usually ships in 3-12 days

0

14

Tecumseh 32663

Piston & Pin Assy. (Incl. 2 of No. 16)(.020 oversize)
(Superseded to 32663B)

$

$

Not available

15

Tecumseh 27565

Ring Set, Piston (Std.)

$24.99

$

Usually ships in 3-12 days

0

15

Tecumseh 27566

Ring Set, Piston (.010 o.s.)

$18.99

$

Usually ships in 3-12 days

0

15

Tecumseh 27567

Ring Set, Piston (.020 o.s.)

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assy., Connecting (Incl. Nos. 18, 19 & 20)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 26706

Bolt, Connecting

$

$

Currently unavailable

19

Tecumseh 28594

53020/22 GIL.HYDRO

$8.99

$

In Stock, only 2 left!

0

20

Tecumseh 27573

LOCKNUT

$

$

Currently unavailable

21

Tecumseh 33159

Camshaft, BCR, Extended
(Superseded to 33159A)

$

$

Not available

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 30757A

Cover, Cylinder (Incl. Nos. 24, 25, 26, 106, 126 & 208)
(Superseded to 30757C)

$

$

Not available

24

Tecumseh 30256

Seal, Oil

Note: Included in Gasket Set part no. 31346E

$8.99

$

In Stock, only 1 left!

0

25

Tecumseh 27625

Plug-Fill, Oil

$2.49

$

In Stock, Qty 7

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Included in Gasket Set part no. 31346E

$7.49

$

In Stock, Qty 7

0

28

Tecumseh 30564

Screw
(Superseded to 650451)

$1.99

$

In Stock, only 4 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Included in Gasket Set part no. 31346E

$16.99

$

In Stock, only 1 left!

0

33

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

34

Tecumseh 26073

Washer

$

$

Not available

35

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 21943

SPARK PLUG
(Superseded to 33636)

$5.49

$

In Stock, Qty 13

0

38

Tecumseh 27234

Gasket-Breather
(Superseded to 27234A)

Note: Included in Gasket Set part no. 31346E

$5.99

$

In Stock, only 1 left!

0

39

Tecumseh 27666

Breather Assy.(Incl. Nos. 38 & 40)

$14.99

$

In Stock, only 4 left!

0

40

Tecumseh 27233

Element, Breather
(Superseded to 31410)

$1.99

$

In Stock, Qty 20+

0

41

Tecumseh 27667

Gasket-Gear Case
(Superseded to 34146)

$3.99

$

In Stock, only 1 left!

0

42

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

44

Tecumseh 32447

Breather Tube

$7.99

$

In Stock, only 4 left!

0

45

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Included in Gasket Set part no. 31346E

$1.99

$

In Stock, Qty 8

0

46

Tecumseh 28416

Pipe, Intake
(Superseded to 28416A)

$

$

Not available

47

Tecumseh 30647

Screw
(Superseded to 650664)

$1.99

$

In Stock, Qty 9

0

48

Tecumseh 30646

Screw

$8.99

$

In Stock, only 2 left!

0

53

Tecumseh 33114

Bracket Control
(Superseded to 33114A)

$

$

Currently unavailable

57

Tecumseh 28819

Spring, Coil

$

$

Not available

58

Tecumseh 31858

Jet-Main
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

59

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

60

Tecumseh 29309

DRIVE STUD

$

$

Currently unavailable

61

Tecumseh 590416

Starter Cup

$9.99

$

Usually ships in 3-12 days

0

62

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

63

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

64

Tecumseh 30658

Baffle, Blower Hsg.

$

$

Currently unavailable

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

69

Tecumseh 650556

Screw

$

$

Not available

70

Tecumseh 30655

Housing,Blower
(Superseded to 30655A)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 screws illustrated to attach replacement starter to replacement blower housing

$

$

Currently unavailable

71

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

73

Tecumseh 29716

Screw

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 screws illustrated to attach replacement starter to replacement blower housing

$1.49

$

In Stock, Qty 6

0

74

Tecumseh 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

75

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

76

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

77

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Included in Gasket Set part no. 31346E

$4.49

$

In Stock, Qty 20+

0

79

Tecumseh 31692

Body
(Superseded to 31715)

$21.99

$

In Stock, Qty 7

0

80

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

81

Tecumseh 31700

AIRCLEANER

$12.99

$

In Stock, only 1 left!

0

84

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

87

Tecumseh 26756

Gasket

Note: Included in Gasket Set part no. 31346E

$2.99

$

In Stock, Qty 8

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 3 left!

0

90

Tecumseh 28468

Wire, Ground
(Superseded to 35349)

$

$

Not available

91

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

92

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

94

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

95

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

96

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

97

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

102

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Included in Gasket Set part no. 31346E

$1.49

$

In Stock, only 2 left!

0

103

Tecumseh 30996

Muffler

$

$

Not available

104

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 3 left!

0

107

Tecumseh 30591

Governor Gear ASM

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

111

Tecumseh 28371A

Bracket, Fuel tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

114

Tecumseh 33120

Tank Assy., Fuel (Incl. No. 115)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

115

Tecumseh 33032

Cap-Fuel

$7.49

$

In Stock, only 1 left!

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, Qty 9

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

126

Tecumseh 29673

Gasket

Note: Included in Gasket Set part no. 31346E

$1.99

$

In Stock, only 3 left!

0

129

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

133

Tecumseh 30586

Decal, Instruction
(Superseded to 36261)

$

$

Not available

136

Tecumseh 31871

DECAL, AIRCLEANER
(Superseded to 36261)

$

$

Not available

159

Tecumseh 31708

BRACKET, AIRCLEANER

$10.99

$

Usually ships in 3-12 days

0

171

Tecumseh 650539

Screw, Muffler
(Superseded to 650665)

$1.99

$

In Stock, only 3 left!

0

172

Tecumseh 30997

Cover-Muffler

$1.99

$

In Stock, Qty 5

0

173

Tecumseh 30597

Decal, Name & H.P.
(Superseded to 550223)

$

$

Not available

201

Tecumseh 32446

GROMMET

$1.99

$

In Stock, only 3 left!

0

203

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

208

Tecumseh 30318

Seal, Oil

$7.49

$

Usually ships in 3-12 days

0

210

Tecumseh 610690A

Magneto

$

$

Currently unavailable

211

Tecumseh 631144

Carburetor
(Superseded to 631798A)

$104.99

$

Usually ships in 3-12 days

0

212

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 screws illustrated to attach replacement starter to replacement blower housing

$68.99

$

In Stock, only 1 left!

0

213

Tecumseh 31346E

Gasket Set
(Superseded to 33233A)

$16.99

$

In Stock, only 1 left!

0
