580 RSW (601100022) - Husqvarna Walk-Behind Mower (2000-03) Engine & Electrical Parts Diagram

Walk-Behind Mower

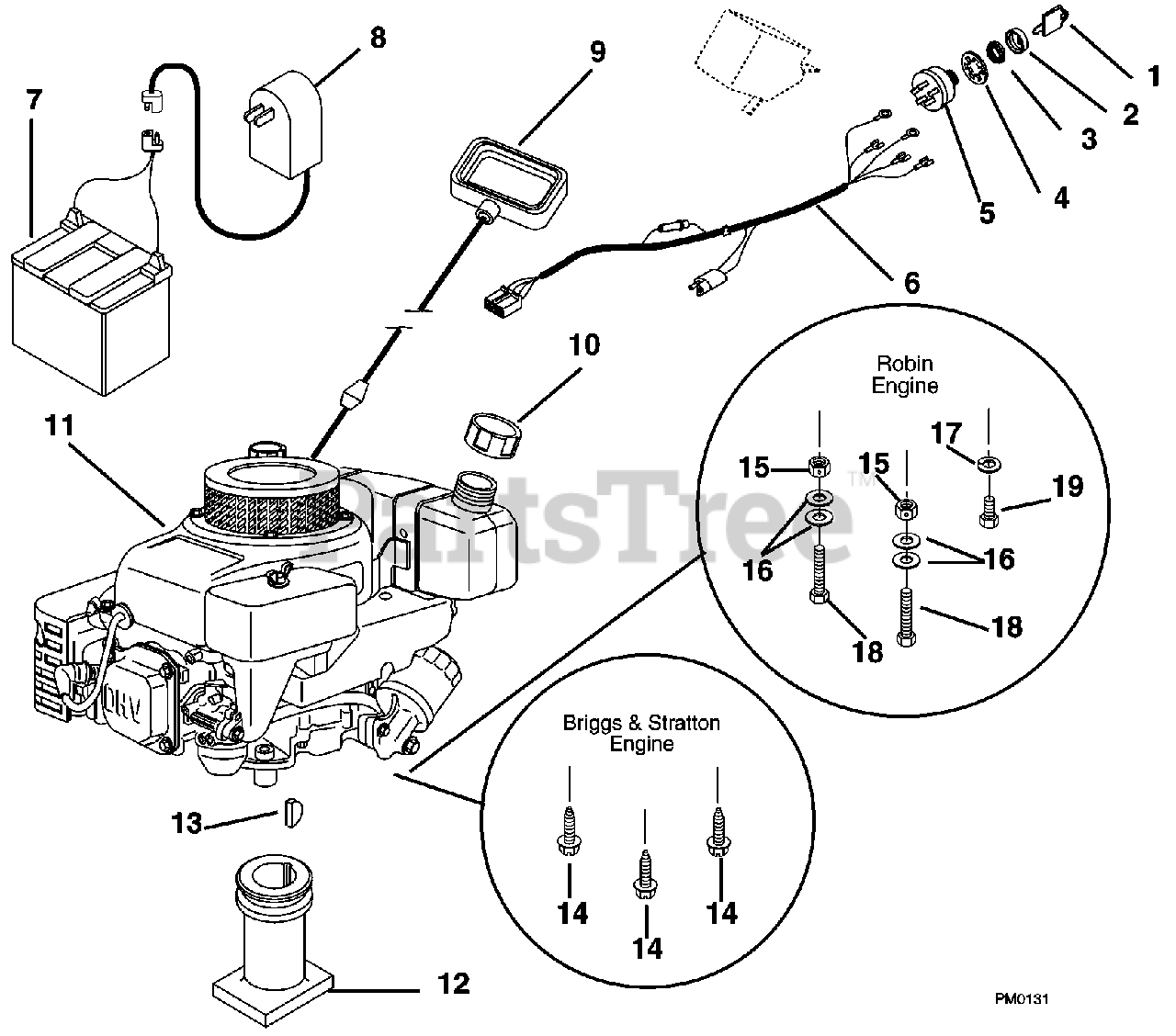

Engine & Electrical Parts Diagram

  • Title

1

Husqvarna 606000236

Key w/Cap (580 RSE)

$

$

Not available

2

Husqvarna 606000247

Cap-Ignition Switch (580 RSE)

$

$

Not available

3

Husqvarna 606000242

Nut, Panel .625-32 (580 RSE)

$

$

Not available

4

Husqvarna 606000239

Washer-Locking Internal .625 x .045 (580 RSE)

$

$

Not available

5

Husqvarna 606000231

Key Switch (580 RSE)

$

$

Not available

6

Husqvarna 606000235

Wire Harness (580 RSE)

$

$

Not available

7

Husqvarna 606000234

Battery (580 RSE)

$

$

Not available

8

Husqvarna 606000230

Battery Charger (580 RSE)
(Superseded to 606000284)

Note: (Not included with unit)

$

$

Not available

9

Husqvarna 606000232

Recoil Start Handle

$

$

Not available

10

Husqvarna 606000246

Fuel Cap

$

$

Not available

11

Engine, Robin 6 HP 4 Cycle (600 C)

$

$

Not available

Engine, Briggs & Stratton Intek OHV 6.5HP Recoil (580 RS, 580 RSW)

$

$

Not available

Engine, Briggs & Stratton Intek OHV 6.5HP Electric Start (580 RSE)

$

$

Not available

12

606 00 02 33

Blade Adapter .875 Dia w/Keyway (580 RS, RSE, RSW)

$

$

Not available

Husqvarna 606000229

Blade Adapter (600 C)

$

$

Not available

13

Husqvarna 606000244

Key-Woodruff .156 x .625 x .25

$

$

Not available

14

Husqvarna 606000245

Screw-Tapping .38-16 x 1.00 Hex Washer Head

$

$

Not available

15

Husqvarna 606000050

Nut-Locking-Center .31-18 (600 C)
(Superseded to 606000243)

$3.49

$

In Stock, only 1 left!

0

16

Husqvarna 606000241

Washer-Flat-Steel .312 x .734 x .065 (600 C)

$

$

Not available

17

Husqvarna 606000199

Washer-Locking .312 x .097 Heavy

$

$

Not available

18

Husqvarna 606000238

Bolt-Hex .31-18 x 1.25 Grade 5 (600 C)

$

$

Not available

19

Husqvarna 606000036

Bolt-Hex .31-18 x .75 Grade 5 (600 C)

$

$

Not available
