580 RSE (601100021) - Husqvarna Walk-Behind Mower (2000-11) Wheels And Adjusters Parts Diagram

Walk-Behind Mower

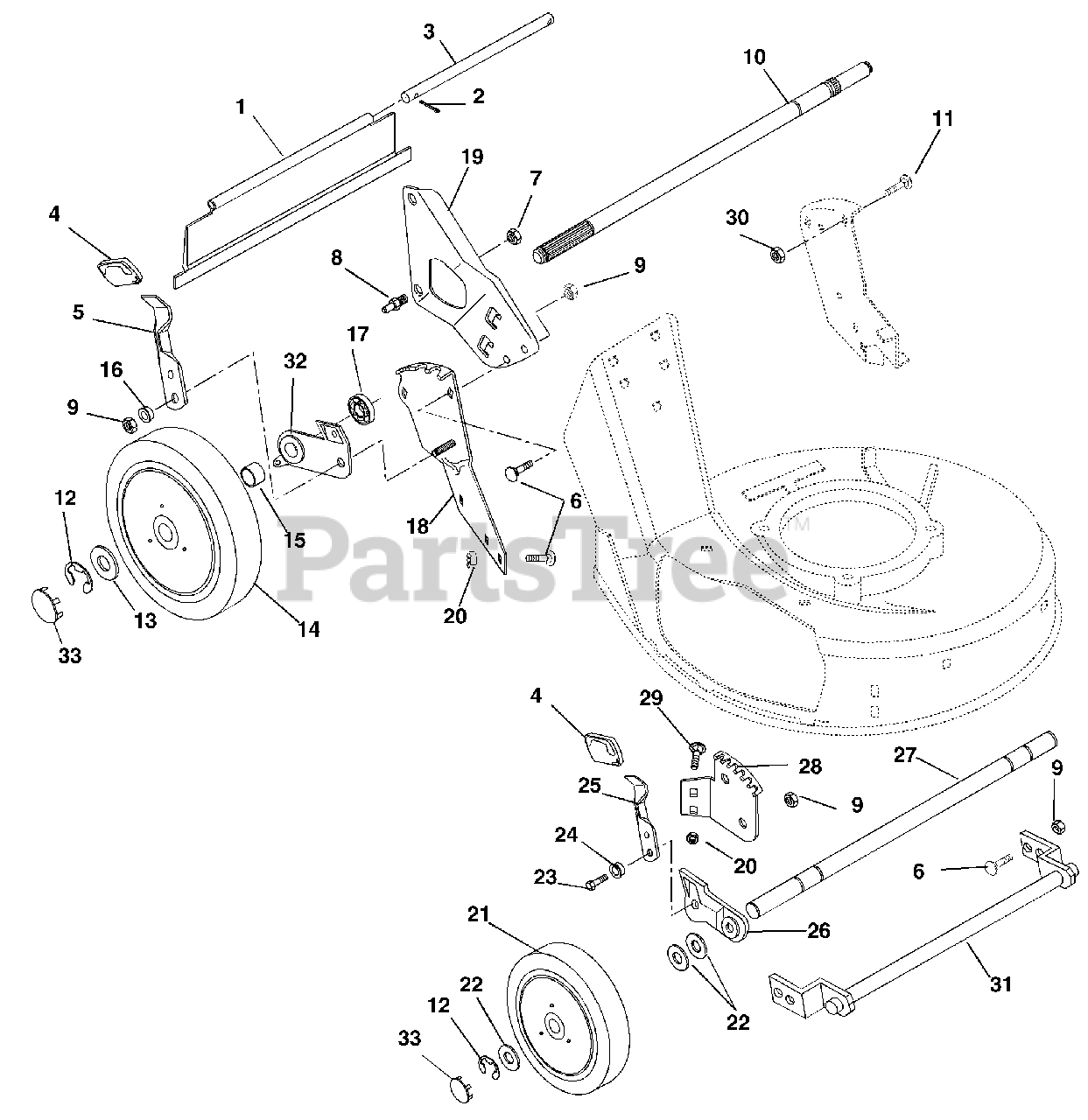

Wheels And Adjusters Parts Diagram

  • Title

1

Husqvarna 606000142

Rear Protective Guard, Self Propelled

Note: (Models 580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C

$

$

Not available

1

Husqvarna 606000315

Rear Protective Guard, Push

Note: (Model 580 R)

$

$

Not available

2

Husqvarna 606000051

Pin-Cotter .06 x .50

$

$

Not available

3

Husqvarna 606000108

Rod

$

$

Not available

4

Husqvarna 606000141

Knob

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

4

Husqvarna 606000141

Knob

Note: (Model 580 RSW)

$

$

Not available

5

Husqvarna 606000104

Height Adjustment Lever

$

$

Not available

6

Husqvarna 606000127

Bolt-Round Head Square Short Neck .31-18 x .62

Note: (Models 580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

6

Husqvarna 606000127

Bolt-Round Head Square Short Neck .31-18 x .62

Note: (Model 600 C)

$

$

Not available

7

Husqvarna 606000048

Nut-Locking-Center .38-16

$

$

Not available

8

Husqvarna 606000119

Handlebar Stud

$

$

Not available

9

Husqvarna 606000050

Nut-Locking-Center .31-18
(Superseded to 606000243)

Note: (Models 580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 606000050

Nut-Locking-Center .31-18
(Superseded to 606000243)

Note: (Model 600 C)

$3.49

$

In Stock, only 1 left!

0

10

Husqvarna 606000109

Rear Axle

Note: (Models 580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

10

Husqvarna 606000310

Rear Axle Push Mower

Note: (Model 580 R)

$

$

Not available

11

Husqvarna 606000128

Bolt-Round Head Square Short Neck .31-18 x 1.00

$

$

Not available

12

Husqvarna 606000125

Ring-Retaining-External .500 x .042

$

$

Not available

12

Husqvarna 606000125

Ring-Retaining-External .500 x .042

$

$

Not available

13

Husqvarna 606000130

Washer-Flat-Steel .505 x .880 x .072

$

$

Not available

14

Husqvarna 606000278

Wheel,Left Hand Rear
(Superseded to 606000331)

Note: (Models 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

14

Husqvarna 606000279

Wheel Right Hand Rear
(Superseded to 606000331)

Note: (Models 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

14

Husqvarna 606000309

Wheel, Push

Note: (Model 580 R)

$

$

Not available

15

Husqvarna 606000110

Spacer Tube

Note: (Models 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

15

Husqvarna 606000311

Spacer Tube-Push Left Hand

Note: (Model 580 R)

$

$

Not available

15

Husqvarna 606000312

Spacer Tube-Push Right Hand

Note: (Model 580 R)

$

$

Not available

16

Husqvarna 606000123

Bushing-Flange .312 x .500 x .344 x .880

$

$

Not available

17

Husqvarna 606000122

Bearing-Ball .625 x 1.383 x .50

Note: (Model 600 C)

$

$

Not available

18

Husqvarna 606000114

Rear Quadrant-Left Hand

$

$

Not available

18

Husqvarna 606000115

Rear Quadrant-Right Hand

$

$

Not available

19

Husqvarna 606000107

Bracket-Handlebar Mounting-Right Hand

$

$

Not available

19

Husqvarna 606000106

Bracket-Handlebar Mounting-Left Hand

$

$

Not available

20

Husqvarna 606000136

Nut-Locking-Flanged .31-18

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

21

Husqvarna 606000277

Wheel-Front

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

22

Husqvarna 606000132

Washer-Flat-Steel .520 x .827 x .062

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

23

Husqvarna 606000126

Bolt-Hex .31-18 x 1.00 Grade 5

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

24

Husqvarna 606000123

Bushing-Flange .312 x .500 x .344 x .880

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

25

Husqvarna 606000103

Lever, Front Height Adjustment

Note: (Models 580 RS, 580 RSE,)

$

$

Not available

26

Husqvarna 606000101

Left Hand Bracket Assembly

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

26

Husqvarna 606000102

Right Hand Bracket Assembly

Note: (Models 580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

27

Husqvarna 606000120

Front Axle

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

28

Husqvarna 606000112

Front Quadrant, Left Hand

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

28

Husqvarna 606000113

Front Quadrant, Right Hand

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

29

Husqvarna 606000082

Bolt-Round Head Square Neck .31-18 x .50 Grade 5

Note: (Models 580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

30

Husqvarna 606000089

Nut-Locking-Nylon .31-18

$

$

Not available

31

Husqvarna 606000116

De-Thatcher Retainer Weldment

Note: (Model 600 C)

$

$

Not available

32

Husqvarna 606000117

Rear Adjuster Bracket-Right Hand

Note: (Model 600 C)

$

$

Not available

32

Husqvarna 606000105

Rear Adjuster Bracket-Left Hand

Note: (Models 580 RS, 580 RSE, 580 RSW, 600 C)

$

$

Not available

32

Husqvarna 606000111

Rear Bracket and Bearing Assembly

Note: (Models 580 RS, 580 RSE, 580 RSW)

$

$

Not available

33

Husqvarna 606000308

Cap, Hub

$

$

Not available
