580 RSE (601100021) - Husqvarna Walk-Behind Mower (2000-03) Handlebar & Controls Parts Diagram

Walk-Behind Mower

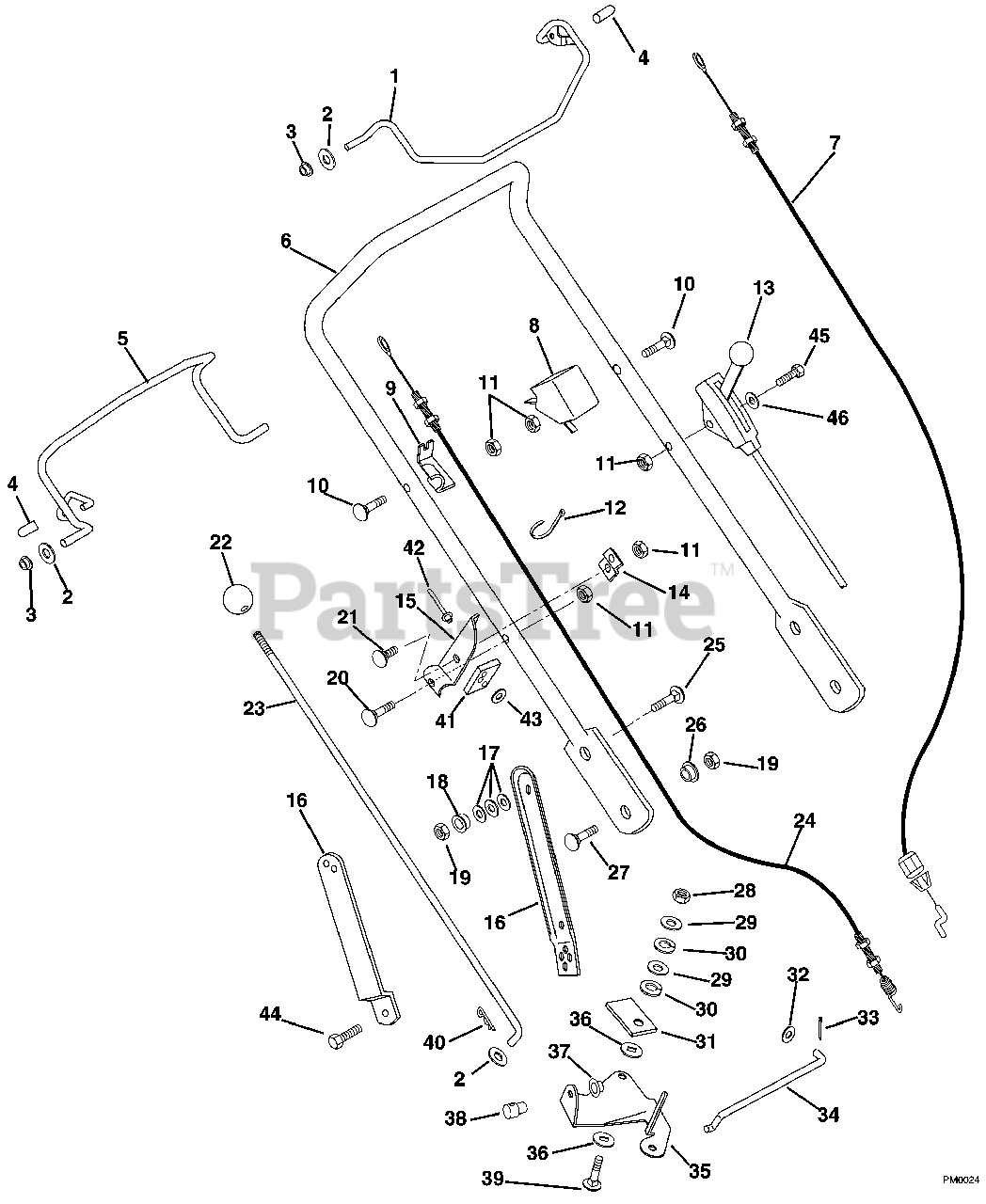

Handlebar & Controls Parts Diagram

  • Title

1

Husqvarna 606000030

Engine Bail Weldment

$

$

Not available

2

Husqvarna 606000045

Washer-Flat-Steel .325 x .688 x .065

$

$

Not available

3

Husqvarna 606000034

Bushing-Flange .325 x .688 x .560

$

$

Not available

4

Husqvarna 606000060

Cap, Vinyl .25 I.D.

$

$

Not available

5

Husqvarna 606000029

Traction Bail

$

$

Not available

6

Husqvarna 606000031

Handlebar, Self Propelled

$

$

Not available

7

Husqvarna 606000056

Engine Control Cable (580 RS, 580 RSE, 580 RSW)

$

$

Not available

Husqvarna 606000057

Engine Control Cable (600 C)

$

$

Not available

8

Husqvarna 606000026

Switch-Cable Anchor (580 RSE)

$

$

Not available

9

Husqvarna 606000019

Cable Anchor-Right Hand

$

$

Not available

Husqvarna 606000272

Cable Anchor-Left Hand

$

$

Not available

10

Husqvarna 606000039

Bolt-Round Head Square Neck .25-20 x 1.25

$

$

Not available

11

Husqvarna 606000049

Nut-Locking-Center .25-20

$

$

Not available

12

Husqvarna 606000061

Cable Tie

$

$

Not available

13

Husqvarna 606000058

Throttle Cable (600 C)

$

$

Not available

14

Husqvarna 606000022

Brace-Speed Control

$

$

Not available

15

Husqvarna 606000018

Bracket-Speed Control

$

$

Not available

16

Husqvarna 606000023

Link-Handlebar Adjuster Left Hand (580 RS, 580 RSE, 580 RSW)

$

$

Not available

Husqvarna 606000024

Link-Handlebar Adjuster Right Hand (580 RS, 580 RSE, 580 RSW)

$

$

Not available

Husqvarna 606000027

Handlebar Bracket (600 C)

$

$

Not available

17

Husqvarna 606000032

Washer-Bellville Spring (580 RS, 580 RSE, 580 RSW)

$

$

Not available

18

Husqvarna 606000035

Bushing-Flange .325 x .500 x .513 x .875 (580 RS, 580 RSE, 580 RSW)

$

$

Not available

19

Husqvarna 606000050

Nut-Locking-Center .31-18
(Superseded to 606000243)

$3.49

$

In Stock, only 1 left!

0

20

Husqvarna 606000042

Bolt-Round Head Square Neck .25-20 x 1.38

$

$

Not available

21

Husqvarna 606000040

Bolt-Round Head Square Neck .25-20 x .50 Grade 5

$

$

Not available

22

Husqvarna 606000059

Knob

$

$

Not available

23

Husqvarna 606000021

Rod-Speed Control

$

$

Not available

24

Husqvarna 606000055

Traction Cable

$

$

Not available

25

Husqvarna 606000038

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5

$

$

Not available

26

Husqvarna 606000033

Shoulder Spacer

$

$

Not available

27

Husqvarna 606000037

Bolt-Round Head Square Neck .31-18 x .75 Grade 5 (580 RS, 580 RSE, 580 RSW)

$

$

Not available

Husqvarna 606000038

Bolt-Round Head Square Neck .31-18 x .75 Grade 5 (600 C)

$

$

Not available

28

Husqvarna 606000048

Nut-Locking-Center .38-16

$

$

Not available

29

Husqvarna 606000044

Washer-Flat-Steel .406 x .812 x .065

$

$

Not available

30

Husqvarna 606000274

Washer-Lock .375 x .115 Heavy

$

$

Not available

31

Husqvarna 606000025

Pressure Flange

$

$

Not available

32

Husqvarna 606000046

Washer-Flat-Steel .281 x .620 x .065

$

$

Not available

33

Husqvarna 606000051

Pin-Cotter .06 x .50

$

$

Not available

34

Husqvarna 606000017

Shift Link

$

$

Not available

35

Husqvarna 606000016

Bell Crank-Speed Control

$

$

Not available

36

Husqvarna 606000015

Friction Washer

$

$

Not available

37

Husqvarna 606000014

Cap, Rod .375

$

$

Not available

38

Husqvarna 606000020

Swivel

$

$

Not available

39

Husqvarna 606000041

Bolt-Round Head Square Neck .38-16 x 1.50

$

$

Not available

40

Husqvarna 606000052

Pin-Hair-Internal .08 x .18 x 1.18

$

$

Not available

41

Husqvarna 606000028

Support Pad

$

$

Not available

42

Husqvarna 606000053

Rivet .187 x .575

$

$

Not available

43

Husqvarna 606000047

Washer-Flat Steel .219 x .50 x .049

$

$

Not available

44

Husqvarna 606000036

Bolt-Hex .31-18 x .75 Grade 5 (600 C)

$

$

Not available

45

Husqvarna 606000276

Bolt-Hex .25-20 x 1.75 Grade 5 (600 C)

$

$

Not available

46

Husqvarna 606000275

Washer-Flat-Steel .250 x .562 x .049 (600 C)

$

$

Not available
