580 BBC (601100025) - Husqvarna Walk-Behind Mower (2000-11) Engine - BBC Parts Diagram

Walk-Behind Mower

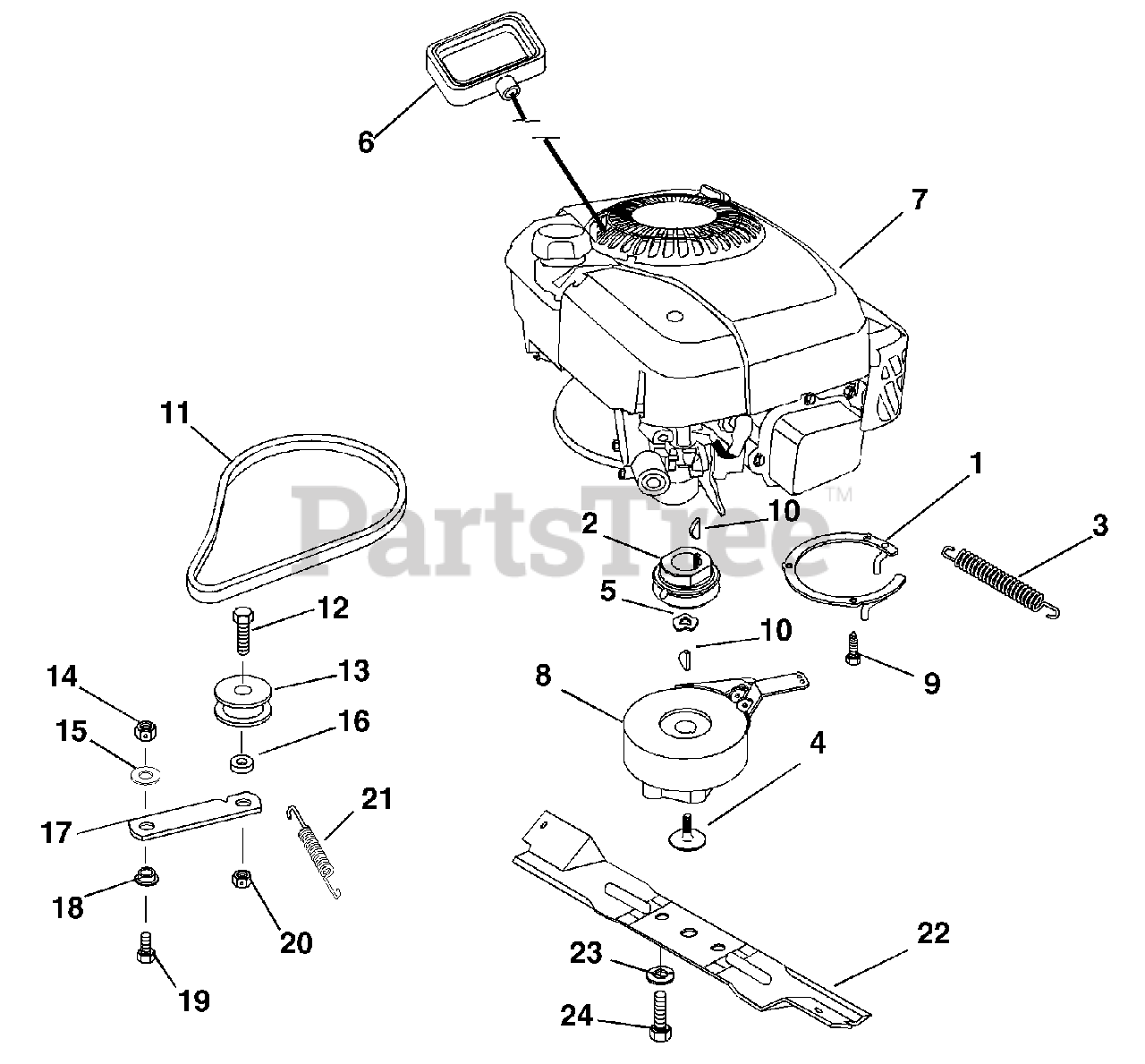

Engine - BBC Parts Diagram

  • Title

1

Husqvarna 606000293

Bracket- Spring Retainer

$

$

Not available

2

Husqvarna 606000294

Pulley- Blade Brake/Clutch

$

$

Not available

3

Husqvarna 606000228

Spring-Tension .1278 x .735 x 4.71

$

$

Not available

4

Husqvarna 606000320

Screw-Socket Head-Special .375-24 x 1.50

$

$

Not available

5

Husqvarna 606000307

Washer-Wave .88 x 1.31 x .125

$

$

Not available

6

Husqvarna 606000232

Recoil Start Handle

$

$

Not available

7

Engine, Briggs & Stratton Intek OHV 6.5HP Recoil

Note: See your Dealer for Engine Specifications

$

$

Not available

8

Husqvarna 606000290

Blade Brake Clutch

$

$

Not available

9

Husqvarna 606000245

Screw-Tapping .38-16 x 1.00 Hex Washer Head

$

$

Not available

10

Husqvarna 606000244

Key-Woodruff .156 x .625 x .25

$

$

Not available

11

Husqvarna 606000226

V-Belt 3L Section

$62.99

$

Usually ships in 3-10 days

0

12

Husqvarna 606000220

Bolt-Hex .44-14 x 1.50 Grade 5

$

$

Not available

13

Husqvarna 606000227

Idler-Flat 1.75 x .47

$

$

Not available

14

Husqvarna 606000050

Nut-Locking-Center .31 -18
(Superseded to 606000243)

$3.49

$

In Stock, only 1 left!

0

15

Husqvarna 606000222

Washer-Flat-Steel .323 x .625 x .062

$

$

Not available

16

Husqvarna 606000302

Bushing-Sleeve .469 x .750 x .430

$

$

Not available

17

Husqvarna 606000215

Idler Arm

$

$

Not available

18

Husqvarna 606000217

Bushing-Flange .325 x .501 x .250 x 1.120

$

$

Not available

19

Husqvarna 606000036

Bolt-Hex .31-18 x .75 Grade 5

$

$

Not available

20

Husqvarna 606000225

Nut-Locking-Center .44-14

$

$

Not available

21

Husqvarna 606000228

Spring, Tension .043 x .44 x 3.31

$

$

Not available

22

Husqvarna 606000291

Blade- Blade Brake/Clutch

$

$

Not available

23

Husqvarna 606000327

Washer-Locking .44 x .109 Regular

$

$

Not available

24

Husqvarna 606000328

Bolt-Hex M10 x 1.5 x 25

$

$

Not available
