580.768332 (1433-2) - Craftsman 2,400 PSI Pressure Washer Main Unit Parts Diagram

2,400 PSI Pressure Washer

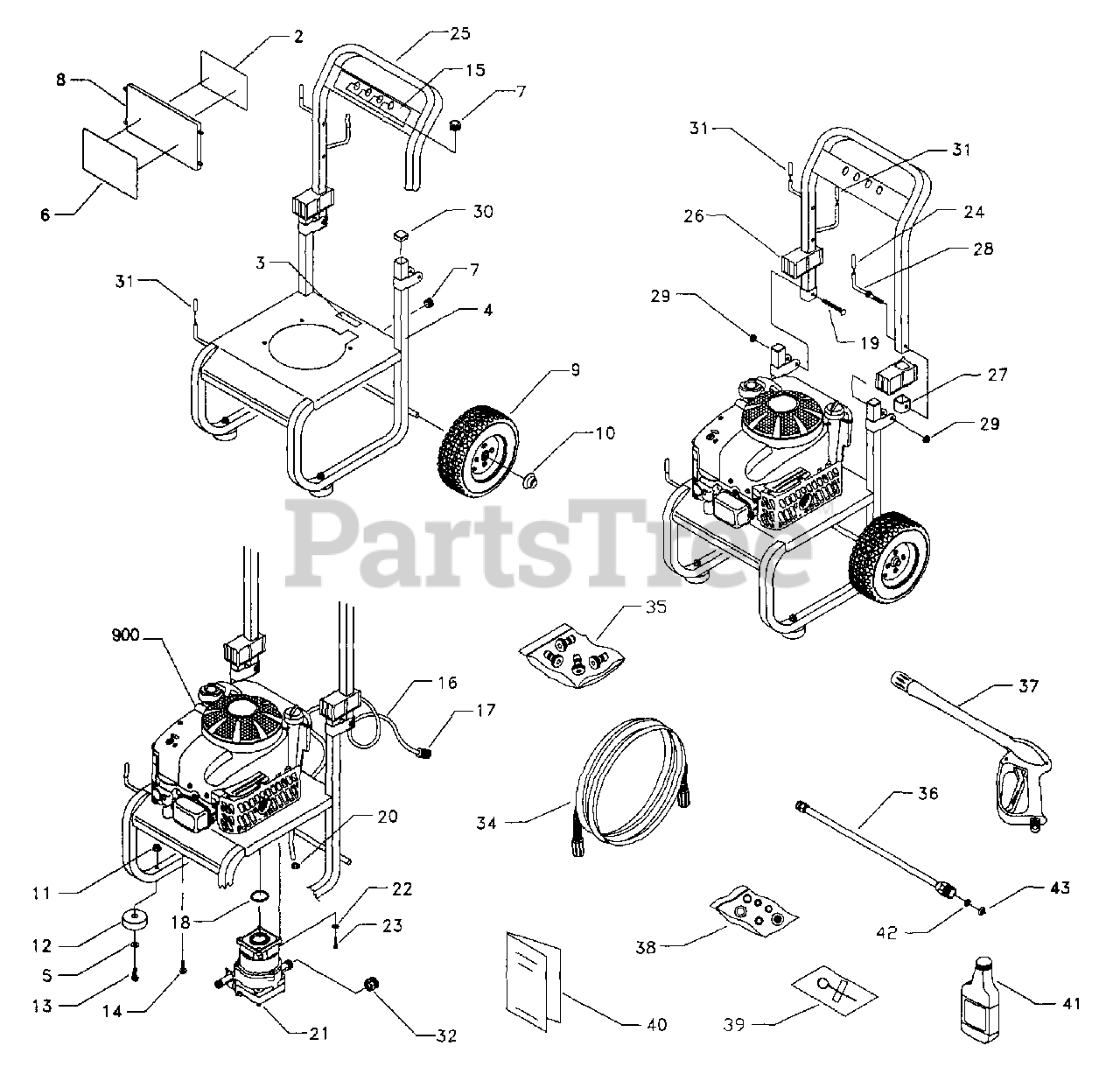

Main Unit Parts Diagram

  • Title

2

Briggs & Stratton B1932

DECAL, Instructions
(Superseded to B1932GS)

$15.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96307

DECAL, 1-800 Number
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton E186548

BASE, Polo Green
(Superseded to E186548GS)

$204.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 50190

WASHER, .34" x 1" Flat
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton B5670

DECAL, Unit
(Superseded to B5670GS)

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 30809

GROMMET, Rubber
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B1631B

BILLBOARD
(Superseded to B1631BGS)

$29.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 186402A

TIRE, 10"
(Superseded to 186402AGS)

$69.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 3 left!

0

11

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 27007

MOUNT, Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

13

Briggs & Stratton 39288

HHCS, M8 - 1.25 x 55
(Superseded to 39288GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 75246

TAPTITE, 3/8" - 16 x 1-1/4"
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B4163

DECAL, 4 QD Nozzles
(Superseded to B4163GS)

$17.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040B

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B2218

SEAL, Engine Donut
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 31669

CARRIAGE BOLT, 1/4"-20 x 1 3/4"
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 48031G

CLAMP, Hose 3/8"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

21

-----

PUMP

Note: (For Replacement, order 193461GS)

$

$

Not available

21

Briggs & Stratton 193461GS

REPLACEMENT PUMP ASSEMBLY

$371.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 92479

WASHER, MS Conical Ribbed
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 23707

SHCS, 5/16" - 24 x 1"
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton B1460

CAP, Vinyl
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton EB5676

HANDLE, Polo Green
(Superseded to EB5676GS)

$93.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B2347

CAP, End
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B2759

HOOK, Chemical Bottle
(Superseded to B2759GS)

$3.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B2071

NUT, 1/4"-20 Locking Flange
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 46476

CAP, Plug
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B2516

CAP, Vinyl
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B5689

HOSE, 1/4" x 30'
(Superseded to 708962)

$59.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton B5646

KIT, Quick Connect
(Superseded to B5646GS)

$60.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3858

EXTENSION, Nozzle
(Superseded to 207784GS)

$38.99

$

In Stock, Qty 8

0

37

Briggs & Stratton B3263

SPRAY GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, Qty 8

0

38

Briggs & Stratton B5830

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

39

Briggs & Stratton B2509

KIT, Nozzle, Cleaning

$

$

Currently unavailable

40

Briggs & Stratton 186546

MANUAL, Owner

$

$

Not available

41

Briggs & Stratton AB3061B

OIL, Engine
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$

$

Not available

43

Briggs & Stratton 97837

O-RING, Hi Pressure Trns.
(Superseded to 97837GS)

$3.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE, B & S, 6HP Intek

$

$

Currently unavailable
