580.768040 (1211-0) - Craftsman 2,500 PSI Pressure Washer Briggs & Stratton 6.5 HP (Part I) Parts Diagram

2,500 PSI Pressure Washer

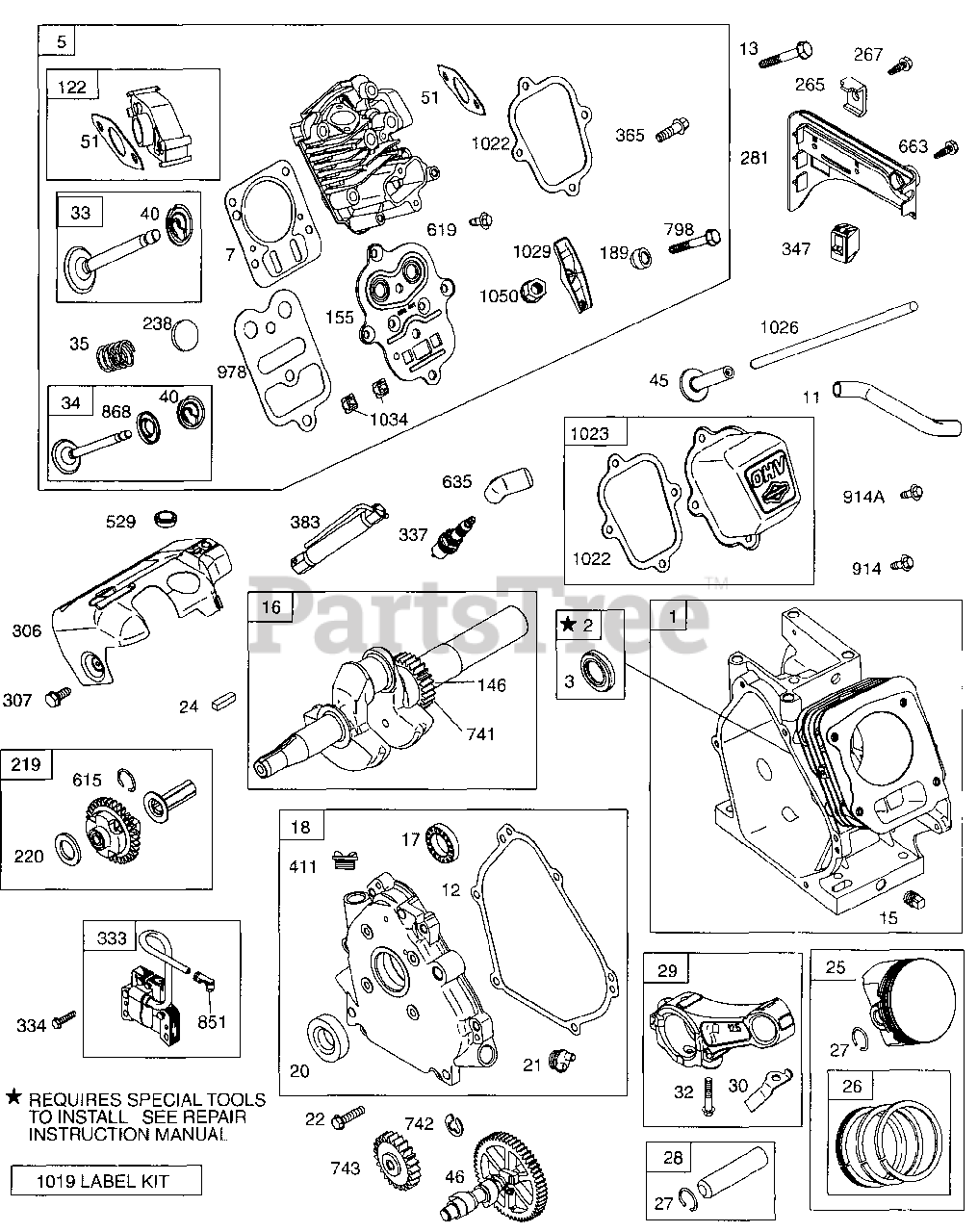

Briggs & Stratton 6.5 HP (Part I) Parts Diagram

  • Title

1

Briggs & Stratton 690045

Cylinder Assembly
(Superseded to 699505)

$255.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing/Seal Kit
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: (Incl. in Gasket Set, Ref Number 358.)

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 693643

Head-Cylinder
(Superseded to 594514)

$

$

Not available

7

Briggs & Stratton 273489

Gasket-Cylinder Head
(Superseded to 698210)

Note: (Incl. in Gasket Set, Ref Number 358 & Valve Overhaul Kit, Ref Number 1033.)

$8.99

$

In Stock, Qty 16

0

11

Briggs & Stratton 693647

Tube-Breather

$10.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 692549

Gasket-Crankcase
(Superseded to 699485)

Note: (Incl. in Gasket Set, Ref Number 358.)

$8.99

$

In Stock, Qty 15

0

13

Briggs & Stratton 95049

Screw (Cylinder Head)
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94916

Plug-Oil Drain
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 693887

Crankshaft
(Superseded to 797070)

$192.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 498185

Bearing-Ball
(Superseded to 798538)

$31.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 693605

Cover-Crankcase
(Superseded to 699672)

$199.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil

Note: (Incl. in Gasket Set, Ref Number 358.)

$8.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 281658

Cap-Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692551

Screw (Crankcase Cover)

$3.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 222698

Key-Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499627

Piston Assembly (Standard)
(Superseded to 799063)

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 692788

Piston Assembly (.010" O/S)

$55.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692789

Piston Assembly (.020" O/S)
(Superseded to 799064)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692790

Piston Assembly (.030" O/S)

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499631

Ring Set (Standard)

$53.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 692785

Ring Set (.010" O/S)

$

$

Not available

26

Briggs & Stratton 692786

Ring Set (.020" O/S)

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 692787

Ring Set (.030" O/S)

$26.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263190

Lock-Piston Pin
(Superseded to 691866)

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 690124

Rod-Connecting
(Superseded to 798813)

$43.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 225279

Dipper-Connecting Rod
(Superseded to 791584)

$6.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 94699

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 499642

Valve-Exhaust

$35.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 499641

Valve-Intake
(Superseded to 795443)

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 263149

Spring-Valve
(Superseded to 691304)

$5.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 93312

Retainer-Valve
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 262679

Tappet-Valve
(Superseded to 690977)

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 693404

Camshaft

$73.99

$

In Stock, Qty 5

0

51

Briggs & Stratton 692555

Gasket-Intake (2 Required)

Note: (Incl. in Gasket Set Ref No. 358, Carburetor Kit Ref No. 121, Carburetor Gasket Set Ref No. 977 & Valve Overhaul Kit Ref No. 1033.)

$3.99

$

In Stock, Qty 15

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: (Incl. in Carburetor Kit Ref No. 121.)

$13.99

$

In Stock, Qty 8

0

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

$3.49

$

In Stock, Qty 7

0

155

Briggs & Stratton 225430

Plate-Cylinder Head
(Superseded to 696268)

$

$

Not available

189

Briggs & Stratton 263108

Ball-Rocker Arm
(Superseded to 694543)

$

$

Not available

219

Briggs & Stratton 693578

Gear-Governor

$26.99

$

In Stock, only 1 left!

0

220

Briggs & Stratton 221551

Washer-Thrust
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

238

Briggs & Stratton 263131

Cap-Valve
(Superseded to 691300)

$9.49

$

In Stock, Qty 9

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, only 3 left!

0

267

Briggs & Stratton 692577

Screw (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 693407

Panel-Control

$11.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 693610

Shield-Cylinder
(Superseded to 795334)

$21.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Screw (Cylinder Shield)
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 692605

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw (Magneto Armature)
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

347

Briggs & Stratton 692599

Switch-Rocker
(Superseded to 795333)

$13.99

$

In Stock, only 1 left!

0

365

Briggs & Stratton 692568

Screw (Carburetor)

$3.99

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

411

Briggs & Stratton 693463

Cap-Oil Fill

$3.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 692553

Grommet

$3.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 93555

Ring-Retainer

$1.49

$

Usually ships in 2-12 days

0

619

Briggs & Stratton 94744

Screw (Cylinder Head Plate)
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 805529

Boot-Spark Plug
(Superseded to 692076)

$5.49

$

In Stock, Qty 20+

0

663

Briggs & Stratton 692577

Screw (Control Panel)

$3.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 692565

Gear-Timing
(Superseded to 695087)

$18.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 692564

Ring-Retaining

$4.49

$

In Stock, only 2 left!

0

743

Briggs & Stratton 692566

Gear-Idler
(Superseded to 790278)

$17.99

$

Usually ships in 2-12 days

0

798

Briggs & Stratton 692559

Screw (Rocker Arm)

$3.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493850

Terminal Cable

$

$

Currently unavailable

868

Briggs & Stratton 498592

Seal-Valve
(Superseded to 795440)

Note: (Incl. in Gasket Set Ref No. 358 & Valve Overhaul Kit Ref No. 1033.)

$13.99

$

In Stock, Qty 9

0

914

Briggs & Stratton 94786

Screw (Rocker Cover 7/16" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

914A

Briggs & Stratton 692557

Screw (Rocker Cover 3/8" Long)

$3.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 273346

Gasket-Plate
(Superseded to 694088)

Note: (Incl. in Gasket Set Ref No. 358 & Valve Overhaul Kit Ref No. 1033.)

$8.49

$

In Stock, Qty 16

0

1019

Briggs & Stratton 690035

Label Kit

$34.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 273241

Gasket-Rocker Cover
(Superseded to 691890)

Note: (Incl. in Gasket Set Ref No. 358 & Valve Overhaul Kit Ref No. 1033.)

$7.99

$

In Stock, Qty 6

0

1023

Briggs & Stratton 499924

Cover-Rocker
(Superseded to 595245)

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 693517

Rod-Push

$9.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 225246

Arm-Rocker
(Superseded to 691230)

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 281621

Guide-Push Rod
(Superseded to 691343)

$9.99

$

In Stock, only 2 left!

0

1050

Briggs & Stratton 95137

Nut (Rocker Arm)
(Superseded to 694543)

$

$

Not available
