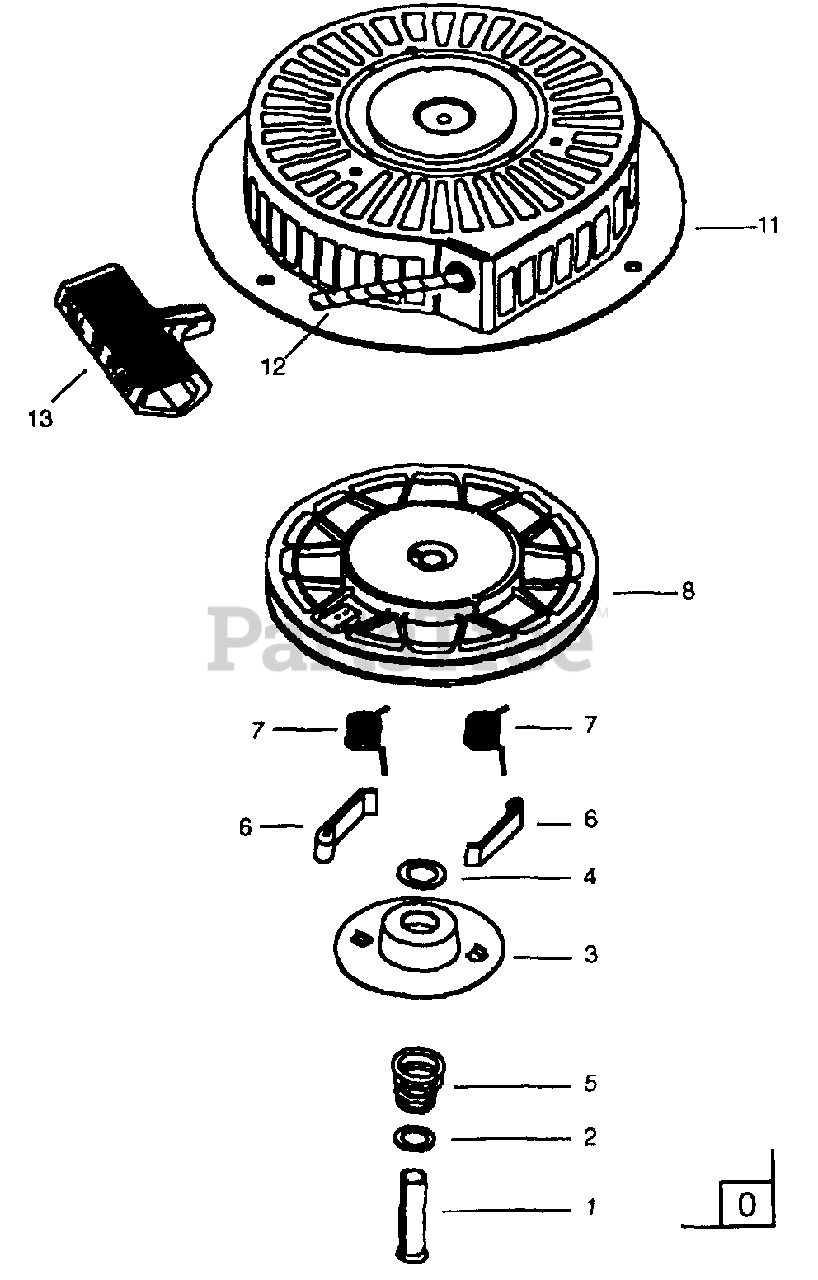

580.768030 (1212-0) - Craftsman 2,250 PSI Pressure Washer Rewind Starter Parts Diagram

2,250 PSI Pressure Washer

Rewind Starter Parts Diagram

  • Title

Briggs & Stratton 590736

Rewind Starter

$

$

Currently unavailable

1

Briggs & Stratton 590599A

Spring Pin

Note: (Incl. 4)

$

$

Currently unavailable

2

Briggs & Stratton 590600

Washer

$

$

Currently unavailable

3

Briggs & Stratton 590696

Retainer

$

$

Currently unavailable

4

Briggs & Stratton 590601

Washer

$18.99

$

In Stock, Qty 10

0

5

Briggs & Stratton 590697

Brake Spring

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 590698

Starter Dog

$8.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 590699

Dog Spring
(Superseded to 590643)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 590700

Pulley & Rewind Spring Ass'y.
(Superseded to 590850)

$3.99

$

In Stock, Qty 7

0

11

Briggs & Stratton 590705

Starter Housing Ass'y.

$34.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 590535

Starter Rope (98" x 9/64" dia.)

$12.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 590701

Starter Handle
(Superseded to 590850)

$3.99

$

In Stock, Qty 7

0
