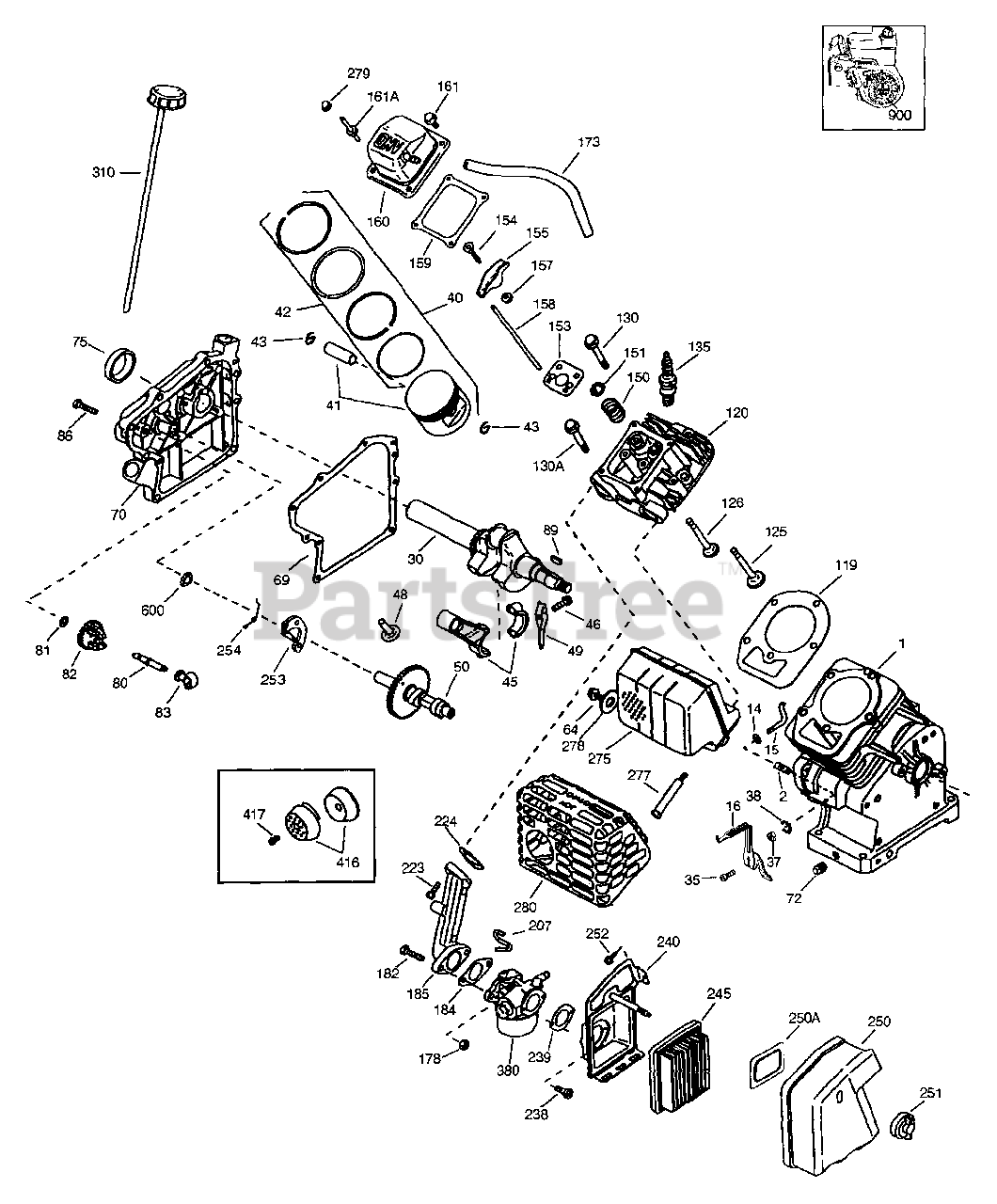

580.768030 (1212-0) - Craftsman 2,250 PSI Pressure Washer Engine (Part 1) Parts Diagram

2,250 PSI Pressure Washer

Engine (Part 1) Parts Diagram

  • Title

1

Briggs & Stratton 37120A

Cylinder

Note: (Incl. 2, 20 & 72)

$

$

Currently unavailable

2

Briggs & Stratton 26727

Dowel Pin
(Superseded to 26727GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 651052

Washer

$

$

Currently unavailable

15

Briggs & Stratton 37108

Governor Rod

$

$

Currently unavailable

16

Briggs & Stratton 37110

Governor Lever

$

$

Currently unavailable

30

Briggs & Stratton 34740

Crankshaft

$

$

Currently unavailable

35

Briggs & Stratton 651053

Screw, Torx T-25, 10-32 x 63/64"

$

$

Currently unavailable

37

Briggs & Stratton 29216

Lock Nut, 10-32
(Superseded to 7029216YP)

$78.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 37109

Retaining Ring

$

$

Currently unavailable

40

Briggs & Stratton 40004

Piston, Pin & Ring Set (Std.)

$

$

Currently unavailable

40

Briggs & Stratton 40005

Piston, Pin & Ring Set (.010" OS)

$

$

Currently unavailable

41

Briggs & Stratton 36070

Piston & Pin Ass'y (Std.)

Note: (Incl. 43)

$

$

Currently unavailable

41

Briggs & Stratton 36071

Piston & Pin Ass'y (.010" OS)

Note: (Incl. 43)

$

$

Currently unavailable

42

Briggs & Stratton 40006

Ring Set (Std.)

$

$

Currently unavailable

42

Briggs & Stratton 40007

Ring Set (.010" OS)

$

$

Currently unavailable

43

Briggs & Stratton 20381

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Briggs & Stratton 32875A

Connecting Rod Ass'y

Note: (Incl. 46 & 49)

$

$

Currently unavailable

46

Briggs & Stratton 32610A

Connecting Rod Bolt

$

$

Currently unavailable

48

Briggs & Stratton 35616

Valve Lifter

$

$

Currently unavailable

49

Briggs & Stratton 36611

Oil Dipper

$

$

Currently unavailable

50

Briggs & Stratton 37040

Camshaft

Note: (Incl. 253 & 254)

$

$

Currently unavailable

64

Briggs & Stratton 651015

Screw, 1/4-20 x 1-1/8"

$

$

Currently unavailable

69

Briggs & Stratton 36624

Cylinder Cover Gasket

$

$

Currently unavailable

70

Briggs & Stratton 36766

Cylinder Cover

Note: (Incl. 75 thru 83)

$

$

Currently unavailable

72

Briggs & Stratton 27642

Oil Drain Plug

$

$

Not available

75

Briggs & Stratton 36742

Oil Seal

$

$

Currently unavailable

80

Briggs & Stratton 30574A

Governor Shaft

$

$

Currently unavailable

81

Briggs & Stratton 30590A

Washer

$

$

Currently unavailable

82

Briggs & Stratton 30591

Governor Gear Ass'y

Note: (Incl. 81)

$

$

Currently unavailable

83

Briggs & Stratton 36057

Governor Spool

$

$

Currently unavailable

86

Briggs & Stratton 650488

Screw, 1/4-20 x 1-1/4"

$

$

Currently unavailable

89

Briggs & Stratton 610961

Flywheel Key

$

$

Currently unavailable

119

Briggs & Stratton 36719

Cylinder Head Gasket

$

$

Currently unavailable

120

Briggs & Stratton 36721

Cylinder Head

$

$

Currently unavailable

125

Briggs & Stratton 36471

Exhaust Valve (Std.)

Note: (Incl. 151)

$

$

Currently unavailable

125

Briggs & Stratton 36472

Exhaust Valve (1/32" OS)

Note: (Incl. 151)

$

$

Currently unavailable

126

Briggs & Stratton 29314C

Intake Valve (Std.)

Note: (Incl. 151)

$

$

Currently unavailable

126

Briggs & Stratton 29315C

Intake Valve (1/32" OS)

Note: (Incl. 151)

$

$

Currently unavailable

130

Briggs & Stratton 650912

Screw, 5/16-18 x 1-1/2"

$

$

Currently unavailable

130A

Briggs & Stratton 650999

Screw, 5/16-18 x 2-41/64"

$

$

Currently unavailable

135

Briggs & Stratton 34645

Resistor Spark Plug (RN4C)

$

$

Currently unavailable

150

Briggs & Stratton 37039

Valve Spring

$

$

Currently unavailable

151

Briggs & Stratton 31673

Valve Spring Cap

$

$

Currently unavailable

153

Briggs & Stratton 36649

Push Rod Guide

$

$

Currently unavailable

154

Briggs & Stratton 650913

Rocker Arm Stud

$

$

Currently unavailable

155

Briggs & Stratton 35624A

Rocker Arm

$

$

Currently unavailable

157

Briggs & Stratton 650914

Nut, 1/4-28

$

$

Currently unavailable

158

Briggs & Stratton 36629

Push Rod

$

$

Currently unavailable

159

Briggs & Stratton 35626

Rocker Arm Cover Gasket

$

$

Currently unavailable

160

Briggs & Stratton 36630A

Rocker Arm Cover

$

$

Currently unavailable

161

Briggs & Stratton 651008

Screw, 1/4-20 x 31/64"

$

$

Currently unavailable

161A

Briggs & Stratton 651012

Stud

$

$

Currently unavailable

173

Briggs & Stratton 36675A

Breather Tube

$

$

Currently unavailable

178

Briggs & Stratton 650852

Nut, 1/4-20

$

$

Currently unavailable

182

Briggs & Stratton 650451

Screw, 1/4-20 x 1"

$

$

Currently unavailable

184

Briggs & Stratton 26756

Carburetor To Intake Pipe Gasket

$

$

Currently unavailable

185

Briggs & Stratton 36631

Intake Pipe

$

$

Currently unavailable

207

Briggs & Stratton 36632

Throttle Link

$

$

Currently unavailable

223

Briggs & Stratton 650451

Screw, 1/4-20 x 1"

$

$

Currently unavailable

224

Briggs & Stratton 36581

Intake Pipe Gasket

$

$

Currently unavailable

238

Briggs & Stratton 28820

Screw, 10-32 x 1/2"
(Superseded to 7045199YP)

$222.99

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 27272A

Air Cleaner Gasket

$

$

Currently unavailable

240

Briggs & Stratton 36633A

Air Cleaner Body

Note: (Incl. 239)

$

$

Currently unavailable

245

Briggs & Stratton 36046

Air Cleaner Filter

$

$

Currently unavailable

250

Briggs & Stratton 37073

Air Cleaner Cover

$

$

Currently unavailable

250A

Briggs & Stratton 37074

Air Cleaner Baffle

$

$

Currently unavailable

251

Briggs & Stratton 650886

Wing Nut

$

$

Currently unavailable

252

Briggs & Stratton 650821

Screw, 10-32 x 1/2"

$

$

Currently unavailable

253

Briggs & Stratton 36701

Compression Release Weight

$

$

Currently unavailable

254

Briggs & Stratton 36702

Compression Release Spring

$

$

Currently unavailable

275

Briggs & Stratton 36722

Muffler

$

$

Currently unavailable

277

Briggs & Stratton 650988

Screw 1/4-20 x 2-9/32"

$

$

Currently unavailable

278

Briggs & Stratton 36674

Spacer

$

$

Currently unavailable

279

Briggs & Stratton 650852

Nut & Lock Washer

$

$

Currently unavailable

280

Briggs & Stratton 36893

Heat Shield

$

$

Currently unavailable

310

Briggs & Stratton 36678

Dipstick

$

$

Currently unavailable

380

Briggs & Stratton 640060

Carburetor

Note: (Incl. 184)

$

$

Currently unavailable

416

Briggs & Stratton 36085

Spark Arrestor Kit

Note: (Incl. 417)

$

$

Currently unavailable

417

Briggs & Stratton 650760

Screw, 8-32 x 3/8"

$

$

Currently unavailable

600

Briggs & Stratton 651013

Washer

$

$

Currently unavailable

900

Briggs & Stratton ~NSP

Replacement engine - None

$

$

Currently unavailable
