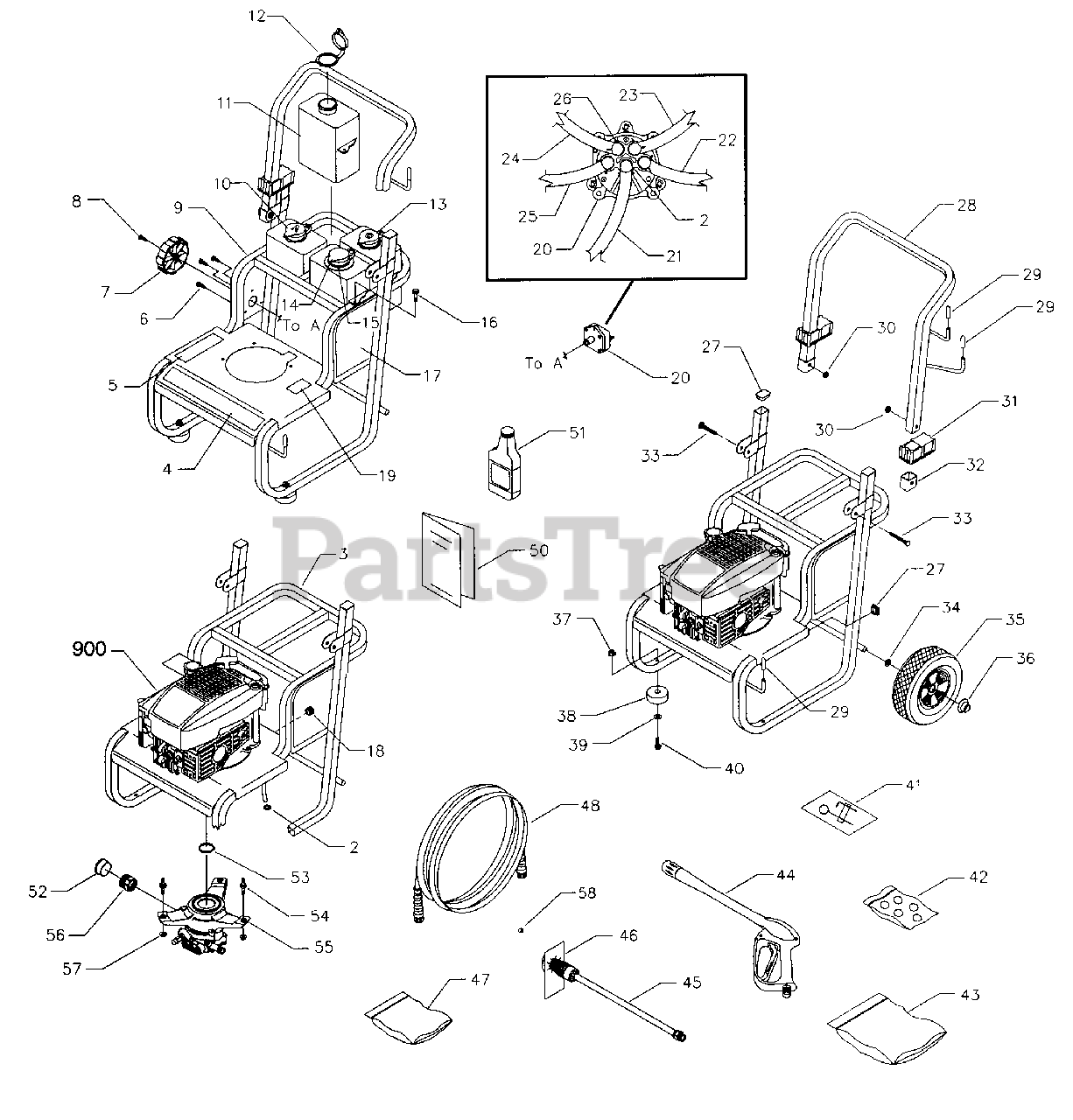

580.768020 (1282-0) - Craftsman 2,000 PSI Pressure Washer Main Unit Parts Diagram

2,000 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

2

Briggs & Stratton 48031C

CLAMP, Hose 1/2"

$

$

Not available

3

Briggs & Stratton EB3637

CRADLE, Polo Green
(Superseded to EB3637GS)

$

$

Not available

4

Briggs & Stratton B3615

DECAL, Logo

$

$

Currently unavailable

5

Briggs & Stratton B4141

DECAL, Start Instructions
(Superseded to B4141GS)

$17.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B3377

SCREW, Plastite 8 - 11 3/4"
(Superseded to B3377GS)

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B3721

HANDLE, 4-Way Valve
(Superseded to B3721GS)

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B3311

SCREW, Plastite 10 - 9
(Superseded to B3311GS)

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B3650

DECAL, Control Panel 1282
(Superseded to B3650GS)

$15.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B3222A

CAP, Chem Container "A"
(Superseded to B3222AGS)

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B3594

ASSY., Chemical Tank 1/2 Gal.
(Superseded to B3594AGS)

$23.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B3222B

CAP, Chem Container "B"
(Superseded to B3222BGS)

$5.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B3222C

CAP, Chem Container "C"
(Superseded to B3222CGS)

$5.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B3222D

CAP, Chem Container "Water"
(Superseded to B3222DGS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B3376B

TAG, System Flush Water
(Superseded to B3376BGS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B3695

BOLT, 1/4"- 20 with Washer
(Superseded to B3695GS)

$18.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B3603

DECAL, Warning/Start
(Superseded to B3603GS)

$15.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 30809

GROMMET, Chemical Hose
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 96307

DECAL, 1-800 Number
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B3306

ASSY., Sub 4-Way Valve
(Superseded to B3306GS)

$

$

Not available

21

Briggs & Stratton B3601B

HOSE, Chemical Pump 22"
(Superseded to 194074GS)

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B3577A

HOSE, "A" - 6"
(Superseded to B3577GS)

$9.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B3577B

HOSE, "B" - 12"
(Superseded to B3577GS)

$9.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3577C

HOSE, "C" - 14"
(Superseded to B3577GS)

$9.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B3577D

HOSE, "Water" - 12"
(Superseded to B3577GS)

$9.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 48031G

CLAMP, Hose 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 46476

CAP PLUG, Tubing
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton EB3782

HANDLE, Polo Green

$

$

Not available

29

Briggs & Stratton B2516

CAP, Vinyl Black
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B2071

NUT, 1/4" - 20 Flange Locking
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B2347

END CAP, Tube
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 31669

BOLT, 1/4"-20 x 1-3/4" Carriage
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 49808

WASHER, M12 Flat
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton B2142

ASSY., Wheel & Tire 2" x 9"
(Superseded to B2142GS)

$19.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 3 left!

0

37

Briggs & Stratton 52858

NUT, M8 - 1.25 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

38

Briggs & Stratton 27007

MOUNT, Vibration Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

39

Briggs & Stratton 50190

FLAT WASHER, M8
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 51731

HHCS, M8 x 1.25 x 50 Long

$

$

Not available

41

Briggs & Stratton B3708

KIT, Cleaning Nozzle

$

$

Currently unavailable

42

Briggs & Stratton B2730

KIT, Maintenance
(Superseded to B2730GS)

$18.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton B3589

KIT, 3 Pak Concentrate
(Superseded to B3589GS)

$22.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, Qty 8

0

45

Briggs & Stratton B3335

WAND, Nozzle Hi/Lo
(Superseded to 205015CGS)

$67.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 97566

TAG, Nozzle Instructions
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B3454

KIT, Tag
(Superseded to B3454GS)

$16.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton B3607

HOSE, 1/4" x 25'

$

$

Currently unavailable

50

Briggs & Stratton B3639

MANUAL
(Superseded to B3639GS)

$14.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton AB3061B

OIL BOTTLE, 20 oz
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton A1408

CAP, Hose Connector
(Superseded to A1408GS)

$

$

Not available

53

Briggs & Stratton 98300

SEAL, Engine Donut
(Superseded to 98300GS)

$11.99

$

In Stock, only 2 left!

0

54

Briggs & Stratton B1735

STUD, Double Ended
(Superseded to B1735GS)

$

$

Not available

55

-----

ASSY., Pump EG with Thermal

Note: (For replacement, order 209940GS)

$

$

Not available

55

Briggs & Stratton 209940GS

REPLACEMENT PUMP ASSEMBLY

$

$

Not available

56

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton B1880

NUT, with Washer
(Superseded to B1880GS)

$3.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 21761

NOZZLE, Replacement

$

$

Not available

900

Briggs & Stratton ~NSP

ENGINE, B&S 6HP, #12H802-2383-E1

$

$

Currently unavailable

--

Briggs & Stratton 7174300

House Wash Concentrate
(Superseded to 6159)

Note: Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174301

Deck Wash Concentrate
(Superseded to 100524GS)

Note: Optional Accessories Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174302

Vehicle Wash Concentrate
(Superseded to 6160)

Note: Optional Accessories Not Illustrated

$

$

Not available

--

Briggs & Stratton 7174303

Degreaser Concentrate
(Superseded to 100526GS)

Note: Optional Accessories Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175115

Replacement Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O-Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 7175187

Garden Hose Quick Connect Kit
(Superseded to 7175187GS)

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197

Accessory Quick Connect Kit
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175199

Rotating Brush Kit
(Superseded to 7175199GS)

Note: Optional Accessories Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7176485

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable
