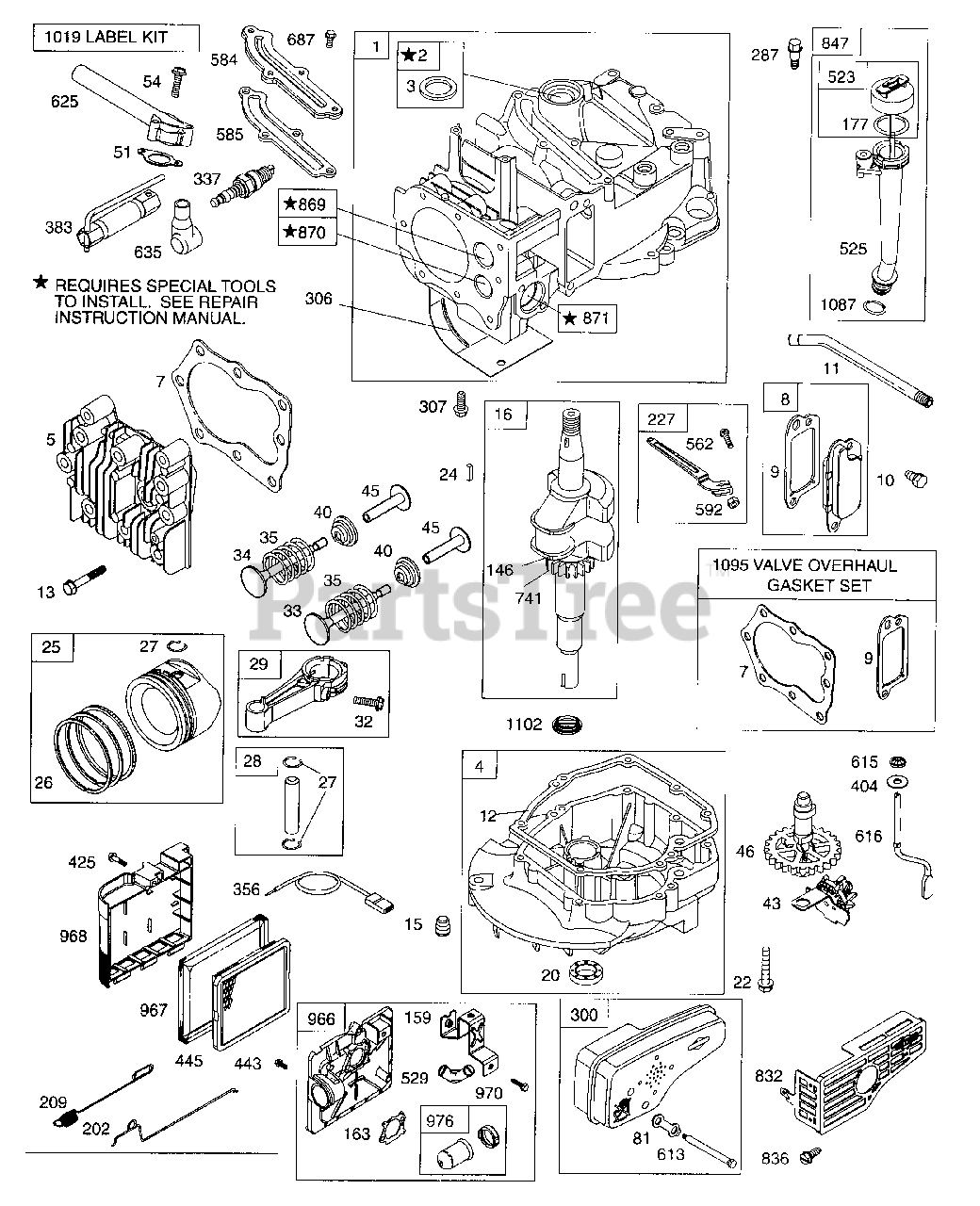

580.768020 (1282-0) - Craftsman 2,000 PSI Pressure Washer Briggs & Stratton 6 HP Quantum #12H802-2383-E1 (Part 2) Parts Diagram

2,000 PSI Pressure Washer

Briggs & Stratton 6 HP Quantum #12H802-2383-E1 (Part 2) Parts Diagram

  • Title

1

Briggs & Stratton 493260

Cylinder Assembly
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 293708

Bushing/Seal Kit
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included In Gasket Set, Ref Number 358

$5.49

$

In Stock, Qty 17

0

4

Briggs & Stratton 493279

Sump-Engine

$120.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 214368

Head-Cylinder
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

Gasket-Cylinder Head
(Superseded to 692249)

Note: Included In Gasket Set, Ref Number 358. Included In Valve Overhaul Kit, Ref Number 1095

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495786

Breather Assembly
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket-breather
(Superseded to 699833)

Note: Included In Gasket Set, Ref Number 358. Included In Valve Overhaul Kit, Ref Number 1095

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691125

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691781

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 272198

Gasket-Crankcase
(Superseded to 692232)

Note: Included In Gasket Set, Ref Number 358

$5.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 94547

Screw
(Superseded to 690912)

Note: (Cylinder Head)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94720

Plug-Oil Drain
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 498565

Crankshaft
(Superseded to 797018)

$179.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included In Gasket Set, Ref Number 358

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

Screw
(Superseded to 691092)

Note: (Engine Sump)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94612

Screw
(Superseded to 691092)

Note: (One Used in Hole Nearest Breather)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key-Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499429

Piston Assembly
(Superseded to 799063)

Note: (Standard)

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 499430

Piston Assy. (.010" O.S.)

$39.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499431

Piston Assy. (.020" O.S.)
(Superseded to 799064)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499432

Piston Assy. (.030" O.S.)

$46.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499425

Ring Set

Note: (Standard)

$

$

Not available

26

Briggs & Stratton 499426

Ring Set (.010" O.S.)

$20.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499427

Ring Set (.020" O.S.)

$52.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499428

Ring Set (.030" O.S.)

$29.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263190

Lock-Piston Pin
(Superseded to 691866)

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 94699

Screw
(Superseded to 691664)

Note: (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262224

Spring-Valve
(Superseded to 691270)

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

Retainer-Valve
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

43

Briggs & Stratton 493737

Governor/Oil Slinger
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 262204

Tappet-Valve
(Superseded to 690548)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 498275

Gear-Cam
(Superseded to 691449)

$73.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included In Gasket Set, Ref Number 358

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 94526

Screw
(Superseded to 691650)

Note: (Intake Manifold)

$2.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 223664

Lock-Muffler Screw
(Superseded to 691740)

$5.49

$

In Stock, Qty 6

0

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

159

Briggs & Stratton 224815

Bracket-Support
(Superseded to 795259)

$32.99

$

In Stock, Qty 7

0

163

Briggs & Stratton 272653

Gasket-Air Cleaner
(Superseded to 795629)

Note: Included In Gasket Set, Ref Number 358. Included In Carburetor Kit, Ref Number 121. Included In Carburetor Set, Ref Number 977

$3.49

$

In Stock, Qty 20+

0

177

Briggs & Stratton 280393

Seal-O-Ring
(Superseded to 691031)

Note: Included In Gasket Set, Ref Number 358

$5.49

$

In Stock, Qty 20+

0

202

Briggs & Stratton 262579

Link-Mechanical Governor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 693187

Spring-Governor

$11.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 492349

Lever-Governor
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 94511

Screw
(Superseded to 690940)

Note: (Oil Fill Tube)

$3.99

$

In Stock, Qty 8

0

300

Briggs & Stratton 497838

Muffler-Exhaust
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 224324

Shield-Cylinder
(Superseded to 690450)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Screw
(Superseded to 690345)

Note: (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497833

Wire-Stop
(Superseded to 692390)

$

$

Not available

383

Briggs & Stratton 89838

Wrench-Spark Plug
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

404

Briggs & Stratton 67072

Washer
(Superseded to 690272)

Note: (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

425

Briggs & Stratton 94872

Screw
(Superseded to 690670)

Note: (Air Cleaner Cover)

$5.99

$

In Stock, Qty 5

0

443

Briggs & Stratton 692523

Screw

Note: (Interlock Switch)

$7.49

$

In Stock, only 1 left!

0

445

Briggs & Stratton 491588

Filter-A/C Cartridge
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

523

Briggs & Stratton 495264

Dipstick
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

525

Briggs & Stratton 495265

Tube-Oil Fill

$

$

Not available

529

Briggs & Stratton 281299

Grommet
(Superseded to 691923)

$9.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 92613

Bolt

Note: (Governor Lever)

$

$

Not available

584

Briggs & Stratton 224328

Breather Passage Cover
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 272238

Gasket-Breather Passage
(Superseded to 691879)

Note: Included In Gasket Set, Ref Number 358

$6.99

$

In Stock, only 1 left!

0

592

Briggs & Stratton 231082

Nut
(Superseded to 691251)

Note: (Governor Lever)

$3.49

$

In Stock, Qty 9

0

613

Briggs & Stratton 94231

Screw
(Superseded to 691340)

Note: (Exhaust Muffler)

$4.99

$

In Stock, Qty 7

0

615

Briggs & Stratton 94474

Retainer
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 263175

Crank-Governor
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 497465

Manifold-Intake
(Superseded to 794305)

$

$

Not available

635

Briggs & Stratton 66538

Boot-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 11

0

687

Briggs & Stratton 94515

Screw
(Superseded to 690345)

Note: (Breather Passage Cover)

$4.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262598

Gear-Timing
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 499034

Guard-Muffler
(Superseded to 593875)

$55.99

$

In Stock, only 3 left!

0

836

Briggs & Stratton 49874

Screw
(Superseded to 5402555B)

Note: (Muffler Guard)

$16.99

$

In Stock, only 1 left!

0

847

Briggs & Stratton 495263

Dipstick/Tube Assembly
(Superseded to 692047)

$

$

Not available

869

Briggs & Stratton 213512

Seat-Valve (Intake)
(Superseded to 691155)

$8.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 213513

Seat-Valve (Exhaust)
(Superseded to 690380)

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Guide

Note: (Exhaust Valve)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide

Note: (Intake Valve)

$14.99

$

Usually ships in 2-12 days

0

966

Briggs & Stratton 496116

Base-A/C Primer
(Superseded to 795259)

$32.99

$

In Stock, Qty 7

0

967

Briggs & Stratton 493537

Filter-Pre Cleaner
(Superseded to 493537S)

$6.49

$

In Stock, Qty 12

0

968

Briggs & Stratton 281340

Cover-Air Cleaner
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

970

Briggs & Stratton 94749

Screw
(Superseded to 691669)

Note: (Support Bracket)

$3.99

$

In Stock, only 1 left!

0

976

Briggs & Stratton 496115

Primer-Carburetor
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

1019

Briggs & Stratton 494256

Label Kit

$26.99

$

Usually ships in 2-12 days

0

1087

Briggs & Stratton 280966

Seal-O-Ring
(Superseded to 692296)

Note: Included In Gasket Set, Ref Number 358

$4.99

$

In Stock, only 4 left!

0

1095

Briggs & Stratton 498528

Gasket Set-Valve Overhaul

$26.99

$

Usually ships in 2-12 days

0

1102

Briggs & Stratton 232153

Pilot-Guide
(Superseded to 691266)

$15.99

$

Usually ships in 2-12 days
