580.768011 (1052-1) - Craftsman 1,800 PSI Pressure Washer Engine Assembly Parts Diagram

1,800 PSI Pressure Washer

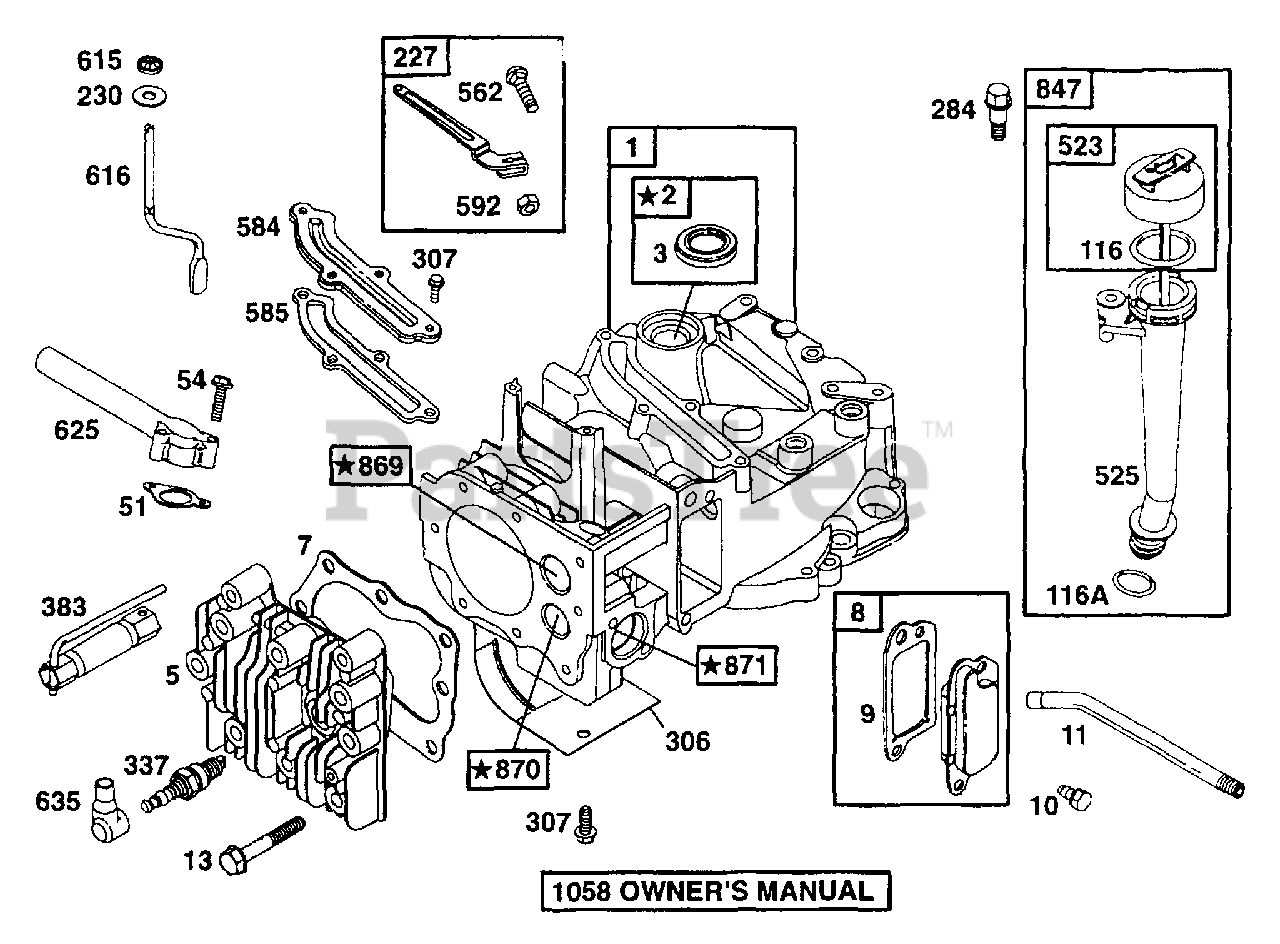

Engine Assembly Parts Diagram

  • Title

1

Briggs & Stratton 493260

Cylinder Assembly
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214626

Head-Cylinder
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

Gasket-Cylinder Head
(Superseded to 692249)

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495786

Breather Assembly
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket-Breather
(Superseded to 699833)

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 94650

Screw-Hex.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 231685

Tube-Breather
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 94547

Screw-Hex.
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

$4.99

$

In Stock, only 2 left!

0

54

Briggs & Stratton 94526

Screw-Hex.
(Superseded to 691650)

$2.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280393

Seal-O-Ring
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

116A

Briggs & Stratton 280966

Seal-O-Ring
(Superseded to 692296)

$4.99

$

In Stock, Qty 8

0

227

Briggs & Stratton 492349

Lever-Governor
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 67072

Washer
(Superseded to 690272)

$3.99

$

In Stock, only 2 left!

0

284

Briggs & Stratton 94511

Screw-Shoulder
(Superseded to 690940)

$3.99

$

In Stock, Qty 14

0

306

Briggs & Stratton 224324

Shield-Cylinder
(Superseded to 690450)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Screw-Hex.
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Spark Plug
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 495264

Dipstick
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

525

Briggs & Stratton 495265

Tube-Oil Fill

$

$

Not available

562

Briggs & Stratton 92613

Bolt-Carriage

$

$

Not available

584

Briggs & Stratton 224328

Baffle-Cylinder
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

592

Briggs & Stratton 231082

Nut-Hex.
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

615

Briggs & Stratton 94474

Retainer
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 263175

Crank-Governor
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 497465

Manifold-Intake
(Superseded to 794305)

$

$

Not available

635

Briggs & Stratton 66538

Boot-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

847

Briggs & Stratton 495263

Dipstick/Tube Assembly
(Superseded to 692047)

$

$

Not available

869

Briggs & Stratton 213512

Seat-Valve (Intake)
(Superseded to 691155)

$8.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 213513

Seat-Valve (Exhaust)
(Superseded to 690380)

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Guide (Exhaust Valve)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Intake Valve)

$14.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 273693

Owner's Manual
(Superseded to 380567TRI)

$

$

Not available

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 2 left!

0

Briggs & Stratton 498528

Valve Overhaul Gasket Set

$26.99

$

Usually ships in 2-12 days

0
