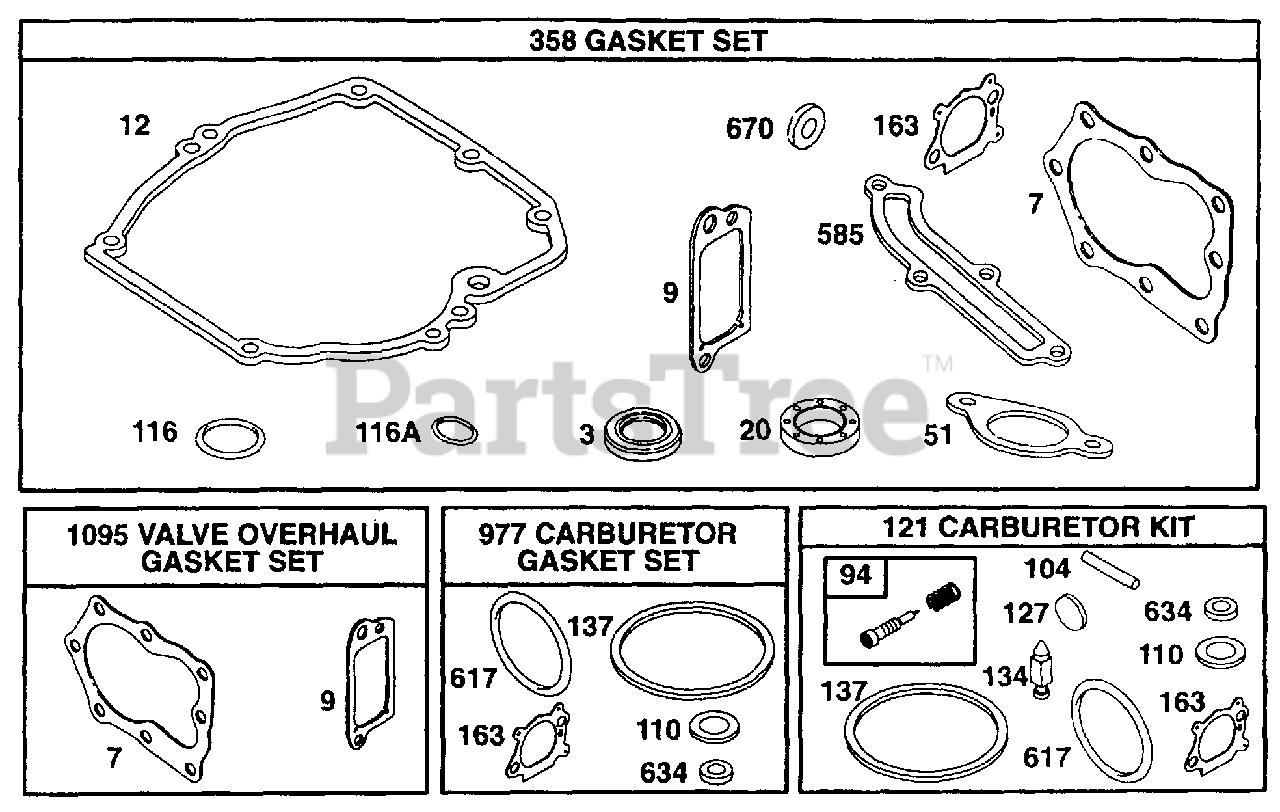

580.768010 (1052-0) - Craftsman 1,800 PSI Pressure Washer Gasket Sets, Carburetor Kit Parts Diagram

1,800 PSI Pressure Washer

Gasket Sets, Carburetor Kit Parts Diagram

  • Title
3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: (Included in Gasket Set - P/N 497316)

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 272916

Gasket-Cylinder Head
(Superseded to 692249)

Note: (Included in Gasket Set - P/N 497316, Valve Overhaul Gasket Set - P/N 498528)

$8.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 272481

Gasket-Breather
(Superseded to 699833)

Note: (Included in Gasket Set - P/N 497316, Valve Overhaul Gasket Set - P/N 498528)

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 272198

Gasket-Crankcase
(Superseded to 692232)

Note: (Included in Gasket Set - P/N 497316)

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal Oil
(Superseded to 399781S)

Note: (Included in Gasket Set - P/N 497316)

$7.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: (Included in Gasket Set - P/N 497316)

$4.99

$

In Stock, only 1 left!

0

94

Briggs & Stratton 493765

Valve-Idle Adjustment

Note: (Included in Carburetor Kit - P/N 498260)

$14.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Pin-Float Hinge
(Superseded to 797622)

Note: (Included in Carburetor Kit - P/N 498260)

$3.99

$

In Stock, Qty 10

0

110

Washer-Bowl

Note: (Sold in Kit Only); (Included in Carburetor Kit - P/N 498260, Carburetor Gasket Set - P/N 498261)

$

$

Not available

116

Briggs & Stratton 280393

Seal-O-Ring
(Superseded to 691031)

Note: (Included in Gasket Set - P/N 497316)

$5.49

$

In Stock, Qty 20+

0

116A

Briggs & Stratton 280966

Seal-O-Ring
(Superseded to 692296)

Note: (Included in Gasket Set - P/N 497316)

$4.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 498260

Carburetor Kit

$16.99

$

In Stock, Qty 20+

0

127

Plug-Welch

Note: (Sold in Kit Only); (Included in Carburetor Kit - P/N 498260)

$

$

Not available

134

Briggs & Stratton 398188

Valve-Needle

Note: (Includes Seat); (Included in Carburetor Kit - P/N 498260)

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl

Note: (Sold in Kit Only); (Included in Carburetor Kit - P/N 498260, Carburetor Gasket Set - P/N 498261)

$

$

Not available

163

Briggs & Stratton 272653

Gasket-Air Cleaner
(Superseded to 795629)

Note: (Included in Gasket Set - P/N 497316, Carburetor Kit - P/N 498260, Carburetor Gasket Set - P/N 498261)

$3.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 2 left!

0

585

Briggs & Stratton 272238

Gasket-Breather Passage
(Superseded to 691879)

Note: (Included in Gasket Set - P/N 497316)

$6.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344

Seal-Intake Manifold
(Superseded to 270344S)

Note: (Included in Carburetor Kit - P/N 498260, Carburetor Gasket Set - P/N 498261)

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft

Note: (Sold in Kit Only); (Included in Carburetor Kit - P/N 498260, Carburetor Gasket Set - P/N 498261)

$

$

Not available

670

Briggs & Stratton 493823

Spacer

Note: (Includes 2); (Included in Gasket Set - P/N 497316)

$6.49

$

In Stock, only 1 left!

0

977

Briggs & Stratton 498261

Gasket Set-Carburetor
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 498528

Gasket Set-Valve Overhaul

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 2 left!

0

Briggs & Stratton 498260

Carburetor Kit

$16.99

$

In Stock, Qty 20+

0
