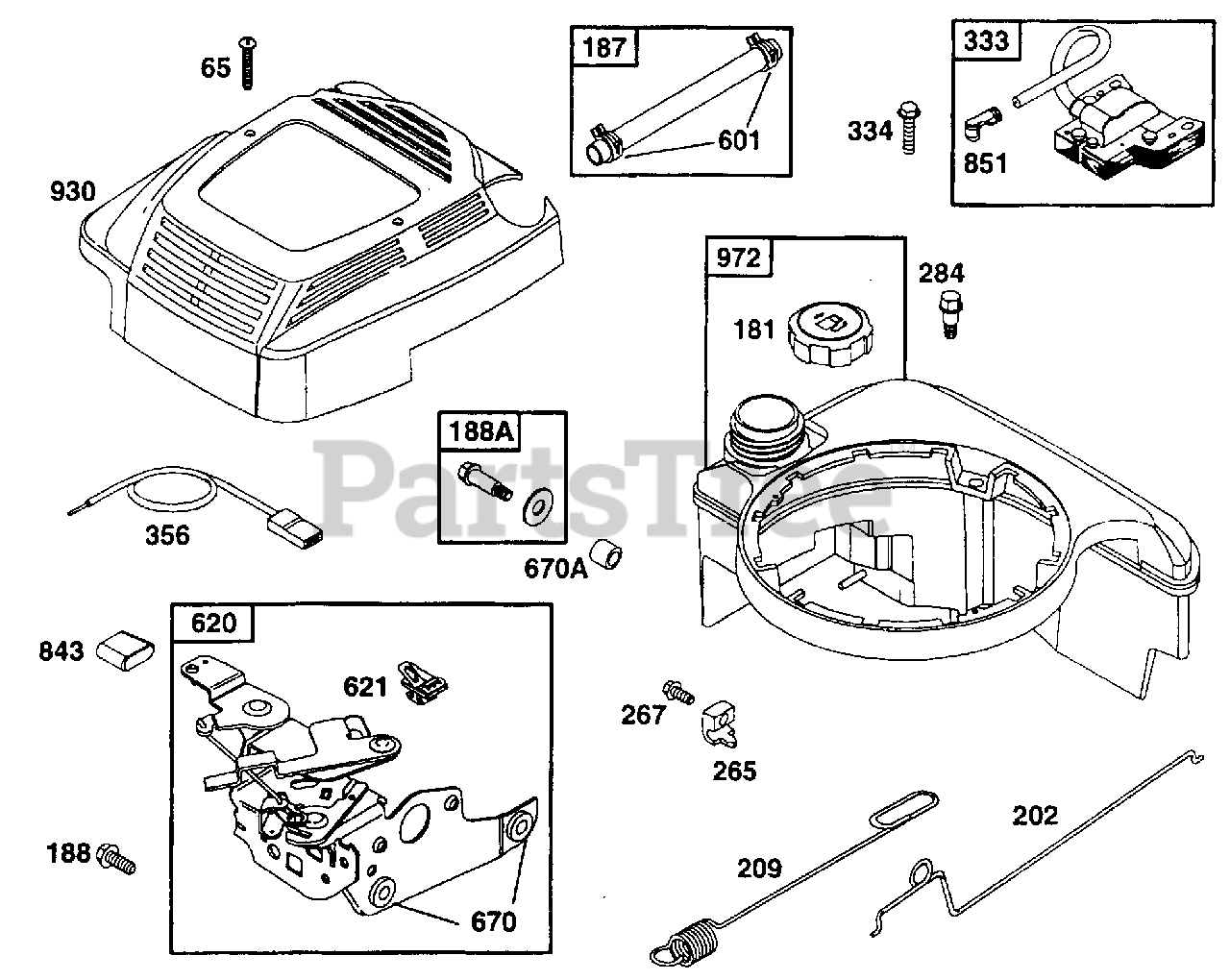

580.768010 (1052-0) - Craftsman 1,800 PSI Pressure Washer Fuel Tank, Blower Housing Cover & Control Bracket Parts Diagram

1,800 PSI Pressure Washer

Fuel Tank, Blower Housing Cover & Control Bracket Parts Diagram

  • Title
65

Briggs & Stratton 94696

Screw-Phillips
(Superseded to 690700)

$3.99

$

In Stock, only 2 left!

0

181

Briggs & Stratton 397974

Cap-Fuel Tank
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 298049

Line-Fuel
(Superseded to 791766)

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 94644

Screw-Hex.
(Superseded to 690877)

$3.99

$

In Stock, only 1 left!

0

188A

Briggs & Stratton 398540

Screw-Shoulder
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

202

Briggs & Stratton 262579

Link - Mechanical Gov.
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 692488

Spring-Governor

$

$

Currently unavailable

265

Briggs & Stratton 213146

Clamp-Casing
(Superseded to 690798)

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 94694

Screw-Slotted Hex.
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

284

Briggs & Stratton 94511

Screw-Shoulder
(Superseded to 690940)

$3.99

$

In Stock, only 2 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-hex.
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497833

Wire-Stop
(Superseded to 692390)

$

$

Not available

601

Briggs & Stratton 95162

Clamp-Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 499737

Bracket-Control
(Superseded to 692150)

$57.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch-Stop
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

670

Briggs & Stratton 493823

Spacer

Note: (Included in Gasket Set - P/N 497316)

$6.49

$

In Stock, only 1 left!

0

670A

Briggs & Stratton 280512

Spacer-Fuel Tank
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

843

Briggs & Stratton 272616

Sleeve-Lever
(Superseded to 691884)

$4.99

$

Usually ships in 2-12 days

0

851

UNKNOWN

$

$

Not available

930

Briggs & Stratton 281440

Cover-Blower Housing
(Superseded to 692931)

$69.99

$

Usually ships in 2-12 days

0

972

Briggs & Stratton 495224

Tank-Fuel
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 2 left!

0
