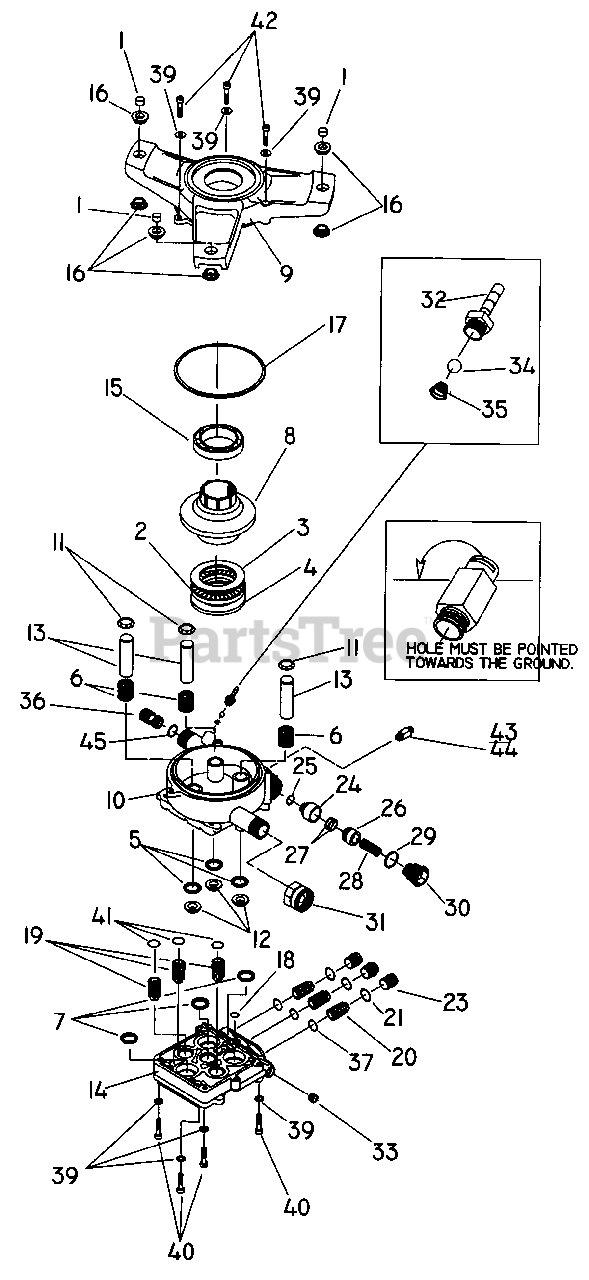

580.768000 (1058-0) - Craftsman 1,500 PSI Pressure Washer Pump Parts Diagram

1,500 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton 96795

SLEEVE, Rubber Grommet Spacer
(Superseded to 96795GS)

$3.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 21640

ASSEMBLY, Cage Needle Bearing 45 x 65
(Superseded to 21640GS)

$16.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 21641

WASHER, Brg. Dia. 45 x 65 x 17
(Superseded to 21641GS)

$10.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21642

WASHER, Brg. Dia. 36 x 65 x 67 (Special)

$

$

Not available

5

Briggs & Stratton 93680

SEAL, Oil Piston Dia. 15
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99503

SPRING, Piston Return - EG
(Superseded to 99503GS)

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 93667

SEAL, U-Clip
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 10

0

8

Briggs & Stratton 98304

CAM, Axial 5.6mm w/insert
(Superseded to 98304GS)

$22.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 98227

ADAPTER, Engine
(Superseded to 98227GS)

$21.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 20110

HOUSING, Piston and Unloader
(Superseded to 20110GS)

$73.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 97830

RETAINER, Piston Spring
(Superseded to 97830GS)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 97831

SPACER, Pilot
(Superseded to 97831GS)

$5.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 97832

PISTON, Dia. 15-65 Long
(Superseded to 97832GS)

$39.99

$

Usually ships in 2-12 days

0

14

A1111b

HEAD, Pump

$

$

Not available

15

Briggs & Stratton 57018

BEARING, Ball Radial
(Superseded to 57018GS)

$29.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 21429

BUSHING, Rubber
(Superseded to 21429GS)

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 97835

"O" RING, Housing Seal
(Superseded to 97835GS)

$3.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 97837

"O" RING, Hi-Pressure Transfer
(Superseded to 97837GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 97838

ASSEMBLY, Check Valve - Inlet

$

$

Currently unavailable

20

Briggs & Stratton 97839

ASSEMBLY, Check Valve - Outlet
(Superseded to 97839GS)

$5.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 97840

"O" RING, Inlet Port Cap
(Superseded to 97840GS)

$5.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 97841

CAP, Inlet Port
(Superseded to 97841GS)

$

$

Not available

24

Briggs & Stratton 97842

SEAT, Unloader

$

$

Currently unavailable

25

Briggs & Stratton 97843

"O" RING, Unloader Venturi
(Superseded to 97843GS)

$

$

Not available

26

Briggs & Stratton B1253

PISTON, Unloader

$

$

Currently unavailable

27

Briggs & Stratton 97845

SEAL, Unloader "Parback"
(Superseded to 97845GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton A2731

SPRING, Unloader

$

$

Currently unavailable

29

Briggs & Stratton 97847

"O" RING, Unloader Cap
(Superseded to 97847GS)

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton A2730

CAP, Unloader
(Superseded to A2730GS)

$6.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton A1575

BARB, Hose with Nylon Insert
(Superseded to A1575GS)

$

$

Not available

33

Briggs & Stratton 96137

PLUG, 1/8" NPT (with Sealant)
(Superseded to 96137GS)

$

$

Not available

34

Briggs & Stratton 95379

BALL, Dia. 5.5 Chemical Injector

$

$

Not available

35

Briggs & Stratton 95380

SPRING, Chemical Injector
(Superseded to 95380GS)

$

$

Not available

36

Briggs & Stratton 20631

VENTURI, Chemical Injector

$

$

Currently unavailable

37

Briggs & Stratton 97934

"O" RING, Check Valve - Inlet
(Superseded to 97934GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 93873

LOCK WASHER, M6 Ribbed

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 40946

SHCS, M6-1.0 x 35mm

$

$

Not available

41

Briggs & Stratton 97851

"O" RING, Piston Housing
(Superseded to 97851GS)

$3.99

$

In Stock, only 2 left!

0

42

Briggs & Stratton 97962

SHCS, M6-1.0 x 25mm
(Superseded to 97962GS)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 21783

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 20876

.5 oz. SEALANT, Thread Locktite 545
(Superseded to 5023344)

$9.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B1077

"O" RING, Venturi
(Superseded to B1077GS)

$4.99

$

Usually ships in 2-12 days

0
