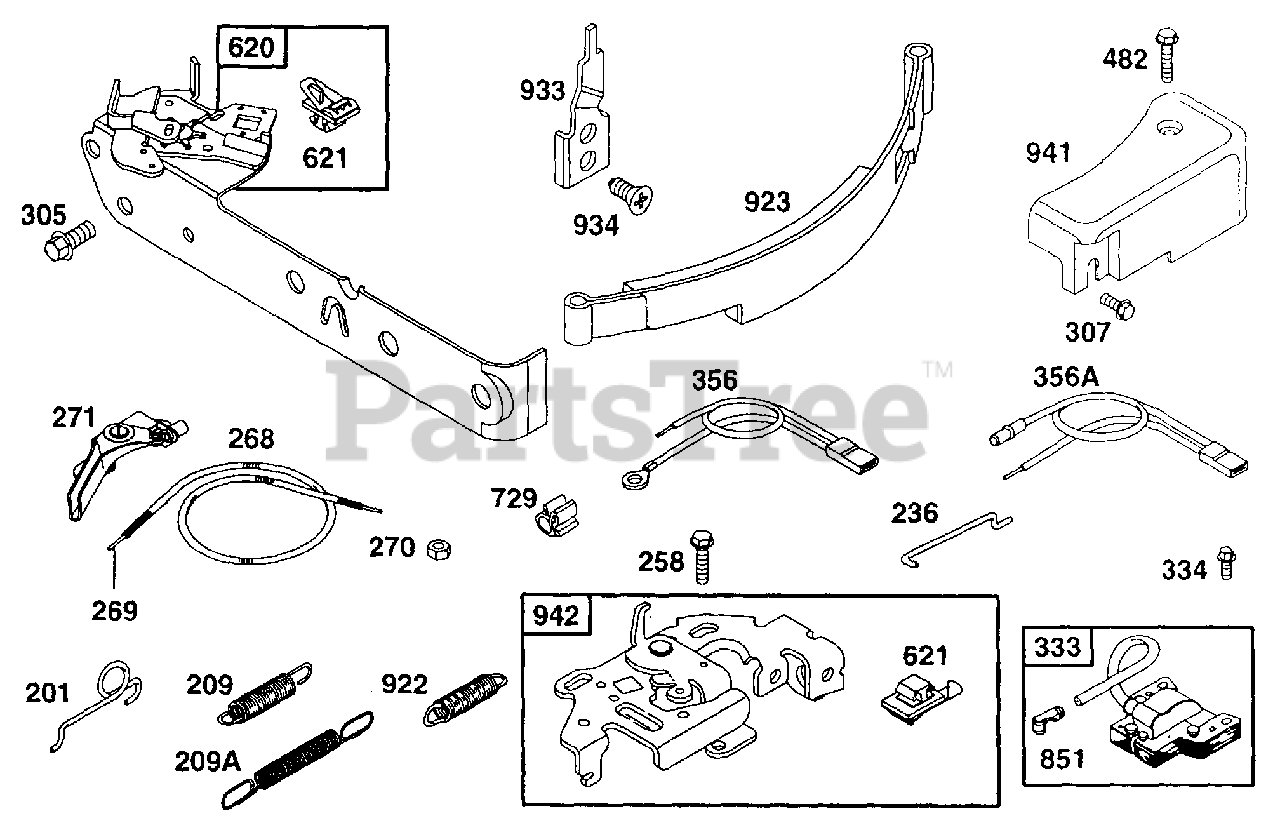

580.768000 (1058-0) - Craftsman 1,500 PSI Pressure Washer Brake Assembly Parts Diagram

1,500 PSI Pressure Washer

Brake Assembly Parts Diagram

  • Title

201

Briggs & Stratton 262753

Link - Air Vane
(Superseded to 690347)

$5.99

$

In Stock, Qty 10

0

209

Spring - Governor

$

$

Not available

209A

Briggs & Stratton 263109

Spring - Governor
(Superseded to 691859)

$6.99

$

In Stock, Qty 20+

0

236

Briggs & Stratton 262461

Link - Lock Out
(Superseded to 691826)

$7.99

$

In Stock, only 3 left!

0

258

Briggs & Stratton 94018

Screw - Hex.
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

268

Briggs & Stratton 66986

Casing - Wire (48" Long)
(Superseded to 691025)

Note: (Cut to Required Length).

$

$

Not available

269

Briggs & Stratton 26099

Wire - Control (54" Long)
(Superseded to 691026)

Note: (Cut to Required Length).

$

$

Not available

270

Briggs & Stratton 63426

Locknut - Casing
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever - Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

Screw - Hex.
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

307

Briggs & Stratton 94515

Screw - Hex.
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 398593

Armature - Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 94731

Screw - Hex.
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

Wire - Stop

$11.99

$

In Stock, only 1 left!

0

356A

Briggs & Stratton 496381

Wire - Stop

$13.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw - Hex.
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 498206

Bracket - Control
(Superseded to 691445)

Note: (Used After Code Date 96040700).

$39.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 495485

Bracket - Control
(Superseded to 691445)

Note: (Used Before Code Date 96040800).

$39.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 498207

Bracket - Control
(Superseded to 691446)

Note: (Used After Code Date 96040700).

$39.99

$

In Stock, only 4 left!

0

620

Briggs & Stratton 495486

Bracket - Control
(Superseded to 691446)

Note: (Used Before Code Date 96040800).

$39.99

$

In Stock, only 4 left!

0

621

Briggs & Stratton 396847

Switch - Stop
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

729

Briggs & Stratton 280470

Clip - Wire
(Superseded to 690586)

$3.99

$

In Stock, only 3 left!

0

851

Briggs & Stratton 493880

Terminal - Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 261647

Spring - Brake
(Superseded to 691809)

$8.49

$

Usually ships in 2-12 days

0

923

Briggs & Stratton 394867

Brake

$39.99

$

Usually ships in 2-12 days

0

933

Briggs & Stratton 223448

Pivot - Band Brake
(Superseded to 690428)

$5.99

$

In Stock, only 1 left!

0

934

Briggs & Stratton 94037

Screw - Phillips
(Superseded to 690324)

$3.49

$

Usually ships in 2-12 days

0

941

Briggs & Stratton 281285

Cover - Linkage

$

$

Not available

942

Briggs & Stratton 493248

Bracket - Brake

$10.99

$

Usually ships in 2-12 days

0
