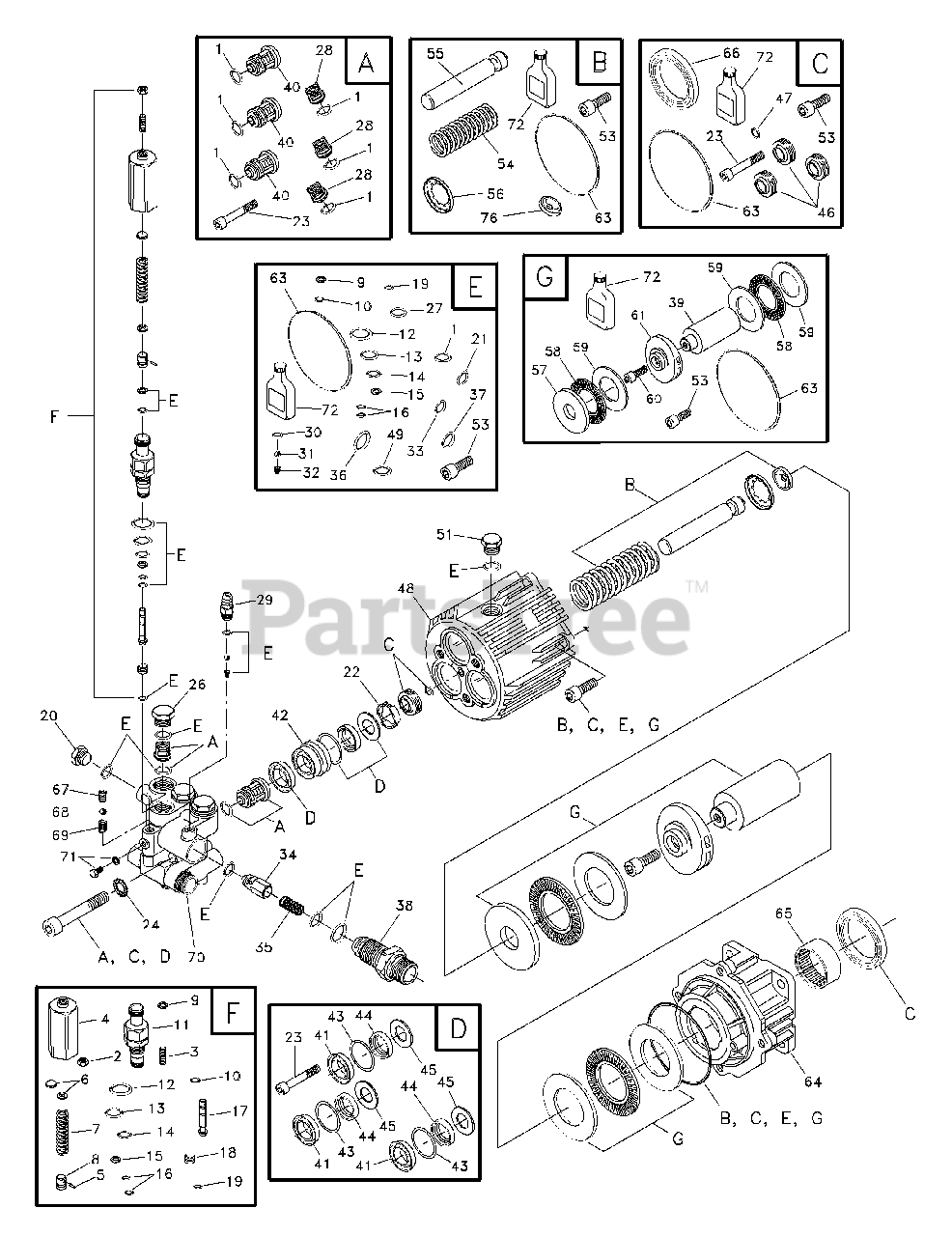

580.767700 (1673-0) - Craftsman 2,700 PSI Pressure Washer Pump Parts Diagram

2,700 PSI Pressure Washer

Pump Parts Diagram

  • Title

20

Briggs & Stratton 190638GS

PLUG

$19.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 190639GS

SPACER

$5.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 190640GS

WASHER

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 190641GS

PLUG

$31.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 190642GS

HOSE TAIL

$21.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 190643GS

JET

$

$

Not available

35

Briggs & Stratton 190644GS

SPRING

$17.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 190645GS

INJECTOR, Detergent

$81.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 190646GS

PISTON, Guide

$39.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 190647GS

HOUSING

$148.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 190648GS

PLUG
(Superseded to 203034GS)

$14.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 190649GS

FLANGE

$133.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 190650GS

ROLLER BEARING

$74.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 190651GS

GRUB SCREW

$3.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 190652GS

BALL

$5.49

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 190653GS

SPRING

$4.99

$

In Stock, only 2 left!

0

70

Briggs & Stratton 190654GS

PUMP HEAD

$296.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 190655GS

GRUB SCREW & WASHER

$7.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 190656GS

OIL BOTTLE

$21.99

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 190657GS

KIT, CHECK VALVE

Note: Service kit includes all parts shown within the box.

$97.99

$

Usually ships in 2-12 days

0

1

O-RING

$

$

Not available

23

SCREW

$

$

Not available

28

COMPLETE VALVE

$

$

Not available

40

COMPLETE VALVE

$

$

Not available

B

Briggs & Stratton 190658GS

KIT, PISTON SET

Note: Service kit includes all parts shown within the box.

$322.99

$

Usually ships in 2-12 days

0

53

SCREW

$

$

Not available

54

SPRING

$

$

Not available

55

PISTON

$

$

Not available

56

RING

$

$

Not available

76

PLATE

$

$

Not available

72

OIL BOTTLE

$

$

Not available

C

Briggs & Stratton 190659GS

KIT, SEAL OIL

Note: Service kit includes all parts shown within the box.

$75.99

$

In Stock, only 1 left!

0

23

SCREW

$

$

Not available

46

SEAL

$

$

Not available

47

O-RING

$

$

Not available

53

SCREW

$

$

Not available

63

O-RING

$

$

Not available

66

SEAL

$

$

Not available

72

OIL BOTTLE

$

$

Not available

D

Briggs & Stratton 190660GS

KIT, SEAL HIGH PRESSURE

Note: Service kit includes all parts shown within the box.

$113.99

$

Usually ships in 2-12 days

0

23

SCREW

$

$

Not available

41

GASKET

$

$

Not available

43

O-RING

$

$

Not available

44

GASKET

$

$

Not available

45

RING

$

$

Not available

E

Briggs & Stratton 190677GS

KIT, O-RINGS

Note: Service kit includes all parts shown within the box.

$26.99

$

Usually ships in 2-12 days

0

1

O-RING

$

$

Not available

9

RING

$

$

Not available

10

O-RING

$

$

Not available

12

O-RING

$

$

Not available

13

O-RING

$

$

Not available

14

O-RING

$

$

Not available

15

RING

$

$

Not available

16

O-RING

$

$

Not available

19

O-RING

$

$

Not available

21

O-RING

$

$

Not available

27

O-RING

$

$

Not available

30

O-RING

$

$

Not available

31

BALL

$

$

Not available

32

SPRING

$

$

Not available

33

O-RING

$

$

Not available

36

O-RING

$

$

Not available

37

O-RING

$

$

Not available

49

O-RING

$

$

Not available

53

SCREW

$

$

Not available

63

O-RING

$

$

Not available

72

OIL BOTTLE

$

$

Not available

F

Briggs & Stratton 190661GS

KIT, UNLOADER

Note: Service kit includes all parts shown within the box.

$207.99

$

In Stock, only 1 left!

0

2

NUT

$

$

Not available

3

GRUB SCREW

$

$

Not available

4

HANDLE INSERT

$

$

Not available

5

PIN

$

$

Not available

6

PLATE SPRING

$

$

Not available

7

SPRING

$

$

Not available

8

UPPER PISTON

$

$

Not available

9

RING

$

$

Not available

10

O-RING

$

$

Not available

11

PISTON GUIDE

$

$

Not available

12

O-RING

$

$

Not available

13

O-RING

$

$

Not available

14

O-RING

$

$

Not available

15

RING

$

$

Not available

16

O-RING

$

$

Not available

17

LOWER PISTON

$

$

Not available

18

VALVE SEAT

$

$

Not available

19

O-RING

$

$

Not available

G

Briggs & Stratton 190662GS

KIT, CAM & BEARING

Note: Service kit includes all parts shown within the box.

$291.99

$

Usually ships in 2-12 days

0

39

CRANKSHAFT

$

$

Not available

53

SCREW

$

$

Not available

57

RAIL

$

$

Not available

58

CAGE

$

$

Not available

59

RAIL

$

$

Not available

60

SCREW

$

$

Not available

61

WOBBLE PLATE

$

$

Not available

63

O-RING

$

$

Not available

72

OIL BOTTLE

$

$

Not available
