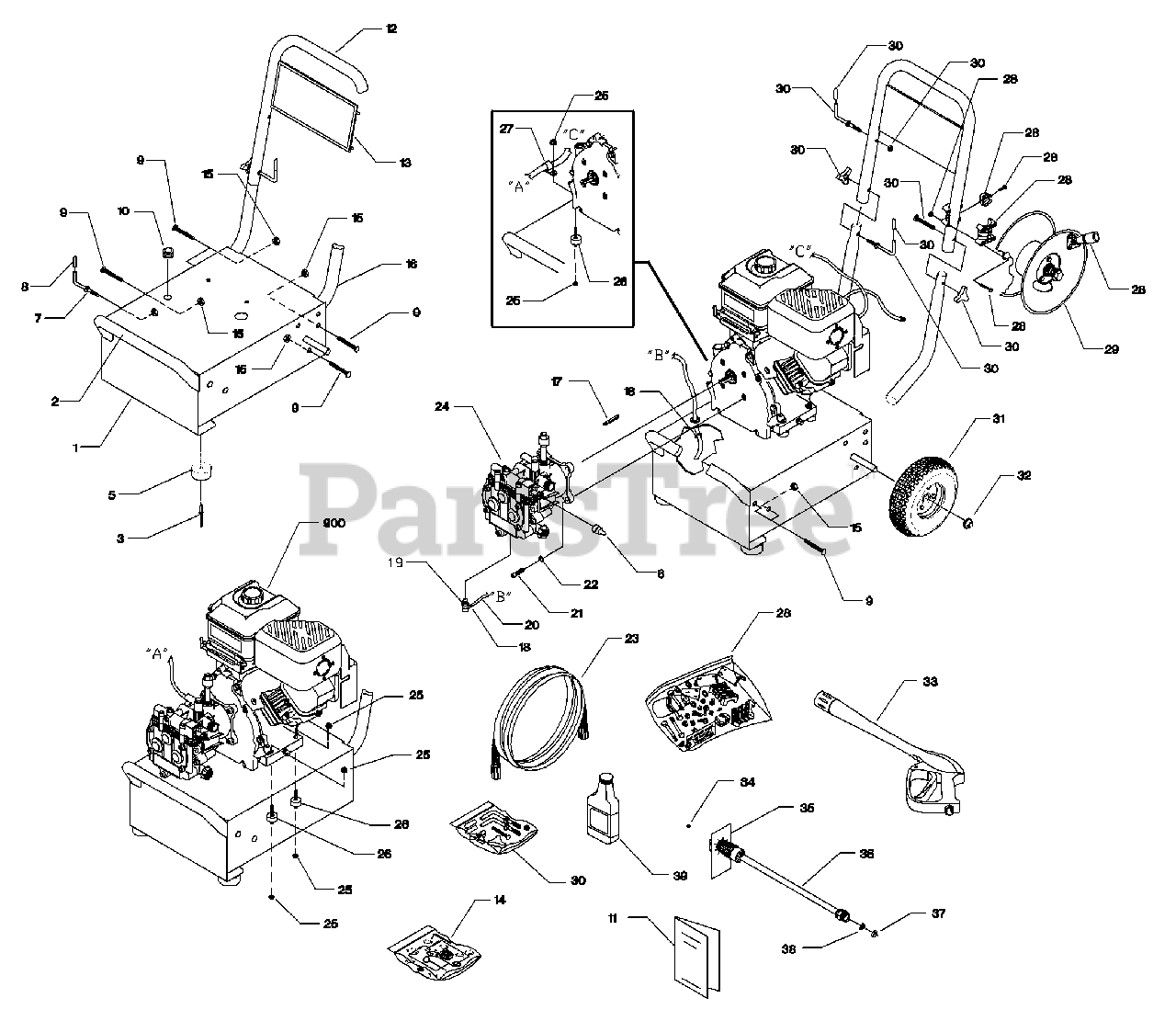

580.767302 (1671-1) - Craftsman 2,400 PSI Pressure Washer Main Unit Parts Diagram

2,400 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton E190506GS

BASE

$192.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton CB1982GS

BUMPER

$

$

Not available

3

Briggs & Stratton 188194GS

BLIND RIVET

$

$

Not available

5

Briggs & Stratton 191413GS

VIBE MOUNT, with Washer

$6.49

$

In Stock, Qty 9

0

6

Briggs & Stratton 190537GS

CAP, Vinyl, Black

$4.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2150GS

HOOK, Gun

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516GS

CAP, Vinyl, Black

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B2043GS

BOLT, Carriage

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 30809GS

GROMMET, Rubber

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 190821GS

MANUAL

$14.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton CB1983AGS

HANDLE

$65.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 188258GS

DECALS/BILLBOARD

$28.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 190862GS

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 99583GS

NUT, Flange Lock

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton C190258GS

SUPPORT, Handle

$19.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

18

Briggs & Stratton 48031BGS

CLAMP, Hose Band

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 21783GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton B3107GS

HOSE, Thermal Drain

$12.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 23707GS

CAPSCREW, Socket Head

$3.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 92479GS

WASHER, Conical Ribbed

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B5689GS

HOSE, High Pressure

$57.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 189943GS

ASSY, Complete Pump
(Superseded to 317054GS)

Note: (See "Pump" illustration and parts list)

$457.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 67989GS

NUT, Flange Serrated

$3.49

$

In Stock, Qty 9

0

26

Briggs & Stratton 21217GS

MOUNT, Rubber Shock

$7.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B1232GS

CLAMP, Hose

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186113GS

KIT, Hardware Hose Reel

$22.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 186114GS

REEL, Hose

$95.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 191433GS

KIT, HNDL, FSTNNG, SRV

$16.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B4966GS

ASSY, Tire & Wheel
(Superseded to 209636GS)

$93.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 189311GS

ASSY, Tire & Wheel
(Superseded to 209636GS)

$93.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 190147GS

PUSHNUT
(Superseded to 194062GS)

$4.49

$

In Stock, only 3 left!

0

33

Briggs & Stratton B3263GS

GUN, High Pressure

$93.99

$

In Stock, Qty 8

0

34

Briggs & Stratton 94804GS

NOZZLE, White Replacement

$9.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 97566GS

TAG, Nozzle Instructions

$1.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3335AGS

WAND, Nozzle Hi/Lo
(Superseded to 188792AGS)

$67.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 97837GS

O-RING, Hi Pressure

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$

$

Not available

39

Briggs & Stratton AB3061BGS

OIL

$

$

Not available

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

Briggs & Stratton B5747GS

ASSY, Complete Hose Reel
(Superseded to 192648GS)

Note: (Includes Items 28 & 29)

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessories Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175115GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174401GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessories Not Illustrated

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessories Not Illustrated

$21.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessories Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle / Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessories Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessories Not Illustrated

$

$

Not available
