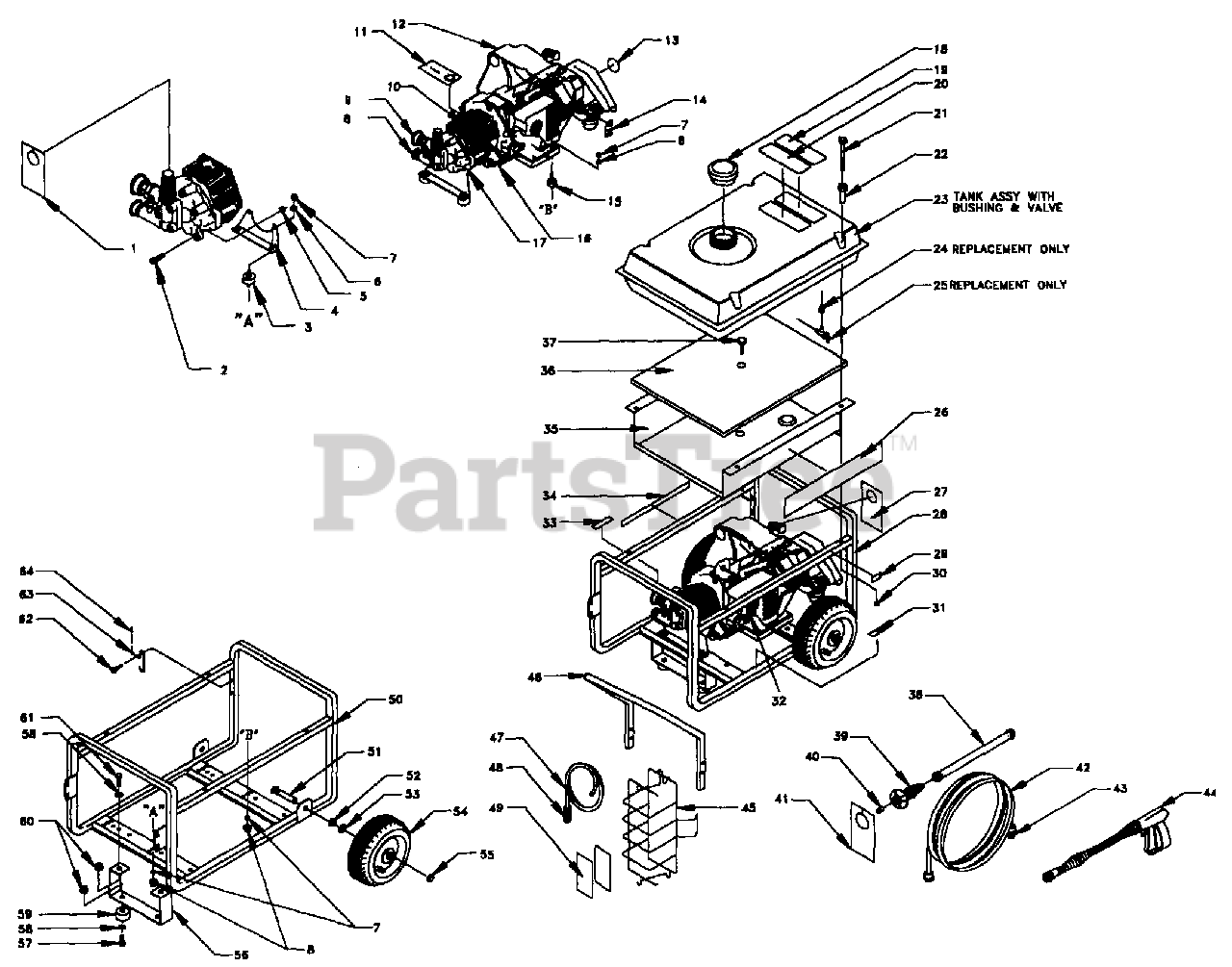

580.763001 (0766-1) - Craftsman 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 97054

TAG, PRESSURE ADJUST

$

$

Not available

2

Briggs & Stratton 38750

HHCS, M6-1.0 x 30
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 21216

MOUNT, RUBBER SHOCK
(Superseded to 5021216)

$142.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21541

BRACKET, PUMP SUPPORT
(Superseded to 5021541)

$9.99

$

In Stock, Qty 18

0

5

Briggs & Stratton 52857

NUT, LOCKING
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 45771

NUT, HEX M8-1.25

$

$

Not available

8

Briggs & Stratton 97100

CAP, HIGH PRESSURE ADAPTOR
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 97098

CAP, GARDEN HOSE INLET
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 99735

ASSY, OIL BREATHER/FILL
(Superseded to 99735GS)

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B1288

TAG, PW BREATHER CAP
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton ~NSP

CRAFTSMAN ENGINE, 7.8 HP MODEL NO. ENG. 21196

$

$

Currently unavailable

13

Briggs & Stratton 21491C

DECAL, RECOIL
(Superseded to 21491CGS)

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B1210

TAG, START INSTRUCTIONS
(Superseded to B1210AGS)

$2.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 21217

MOUNT RUBBER SHOCK
(Superseded to 21217GS)

$7.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 21300D

ASSY, FINAL PUMP HEAD

$

$

Currently unavailable

17

Briggs & Stratton B1336P

ASSY, PUMP HEAD

$

$

Not available

18

Briggs & Stratton 85134

CAP, FUEL GAUGE 4 GAL.
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 96405

DECAL, DANGER

$

$

Not available

20

Briggs & Stratton 21522

DECAL, IMPORTANT INSTRUCTIONS
(Superseded to 5021522)

$32.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 78831B

HHCS M6-1.0 x 60 SEMS
(Superseded to 78831BGS)

$

$

Not available

22

Briggs & Stratton 83465

GROMMET, TANK MOUNTING
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 88325

TANK ASSEMBLY 4 GAL.
(Superseded to 195617GS)

$

$

Not available

24

Briggs & Stratton 78299

BUSHING, TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 80270

VALVE, PLASTIC TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 21219

DECAL, 3K SEARS
(Superseded to 21219GS)

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 70453

TAG, OIL WARNING (YELLOW)
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 21161

CRADLE
(Superseded to 5021161)

$43.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 73054

DECAL, FUEL SHUTOFF

$

$

Not available

30

Briggs & Stratton 77395

NUT, FLANGE LOCKING M6 BLK
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77816

DECAL, CAUTION HOT MUFFLER
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 74031

LIQUID NEOPRENE

$

$

Not available

33

Briggs & Stratton 96307

DECAL, 1-800 #
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton A1088

DECAL, HIGH PRESSURE WASHER
(Superseded to A1088GS)

$4.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 87840

HEAT SHIELD PW
(Superseded to 87840GS)

$47.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84687

INSULATION, 2# 1/4" THICK
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 85000

CLIP, INSULATION
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97123

EXTENSION, WAND
(Superseded to 97123GS)

$68.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 95587B

NOZZLE ASSEMBLY
(Superseded to 95587BGS)

$44.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 21761

NOZZLE, 1.05 YELLOW

$

$

Not available

41

Briggs & Stratton 97556

TAG, NOZZLE INSTRUCTIONS

$

$

Currently unavailable

42

Briggs & Stratton 89634A

HOSE, 3/8" x 50'
(Superseded to 189532GS)

$226.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 55905

TEFLON TAPE, 1/2" WIDE

$

$

Currently unavailable

44

Briggs & Stratton 97124

SPRAY GUN

$

$

Not available

45

Briggs & Stratton 87836

WIRE BASKET

$

$

Not available

46

Briggs & Stratton 97313

HANDLE, GUIDE

$

$

Currently unavailable

47

Briggs & Stratton A1040C

CHEMICAL HOSE, 4" CLEAR
(Superseded to A1040CGS)

$11.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton A1041

FILTER, CHEM. HOSE
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B1011

HANDLE HARDWARE KIT
(Superseded to B1011GS)

$10.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 21161

CRADLE
(Superseded to 5021161)

$43.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 93782A

AXLE -- PIN, ZINC 106 LG

$

$

Currently unavailable

52

Briggs & Stratton 94222Q

JAM NUT, LOCK 5/8-18
(Superseded to 94222QGS)

$3.99

$

In Stock, only 2 left!

0

53

Briggs & Stratton 49808

FLAT WASHER, M12
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

54

Briggs & Stratton 88521

WHEEL, 10" DIA. x 4"
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 75402

PUSH NUT, 0.5 DIA.
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

56

Briggs & Stratton 21540

BRACKET, CRADLE SUPPORT
(Superseded to 21540GS)

$14.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 42909

HHCS M8-1.25 x 30
(Superseded to 42909GS)

$

$

Not available

58

Briggs & Stratton 22145

FLAT WASHER, 5/16-M8

$

$

Not available

59

Briggs & Stratton 27007

VIB MOUNT -- DONUT TYPE
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

60

Briggs & Stratton 52858

NUT, LOCKING M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

61

Briggs & Stratton 39253

HHCS M8-1.25 x 20
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

62

Briggs & Stratton 86292

SELF DRILL, 10-16 x 3/4
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 21221

WIRE FORM, GUN
(Superseded to 21221GS)

$8.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 21702

CAP, 0.203"-1" BLK VINYL
(Superseded to 5021702)

$2.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton A1608B

DECAL, E.P.A. 220 HS GAS

$

$

Currently unavailable

Briggs & Stratton B1322

Owner's Manual
(Superseded to B1322GS)

Note: PARTS NOT ILLUSTRATED

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 83038

Spark Arrestor

Note: PARTS NOT ILLUSTRATED

$

$

Currently unavailable

Briggs & Stratton 7175199

ROTATING BRUSH KIT
(Superseded to 7175199GS)

Note: OPTIONAL ACCESSORIES (not shown)

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175189

UTILITY BRUSH KIT
(Superseded to 7175189GS)

Note: OPTIONAL ACCESSORIES (not shown)

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175190

BROOM BRUSH KIT
(Superseded to 7175190GS)

Note: OPTIONAL ACCESSORIES (not shown)

$89.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7176487

2600+ PSI TURBO NOZZLE

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175187

GARDEN HOSE QUICK-CONNECT KIT
(Superseded to 7175187GS)

Note: OPTIONAL ACCESSORIES (not shown)

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175100

MULTI PURPOSE CLEANER

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175101

DECK WASH
(Superseded to 100524GS)

Note: OPTIONAL ACCESSORIES (not shown)

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175102

VEHICLE WASH

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175103

DEGREASER

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175104

SPRAY WAX

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 2175183

MULTI PURPOSE STORAGE BRACKET

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175196

ANGLE WAND
(Superseded to 7175196GS)

Note: OPTIONAL ACCESSORIES (not shown)

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175193

50-FOOT HIGH PRESSURE HOSE
(Superseded to 7175193GS)

Note: OPTIONAL ACCESSORIES (not shown)

$267.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175191

HOSE-TO-HOSE COUPLER

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175197

ACCESSORY QUICK-CONNECT
(Superseded to 312981GS)

Note: OPTIONAL ACCESSORIES (not shown)

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175198

HIGH PRESSURE HOSE QUICK-CONNECT
(Superseded to 7175198GS)

Note: OPTIONAL ACCESSORIES (not shown)

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175181

PRESSURE GAUGE

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Not available
