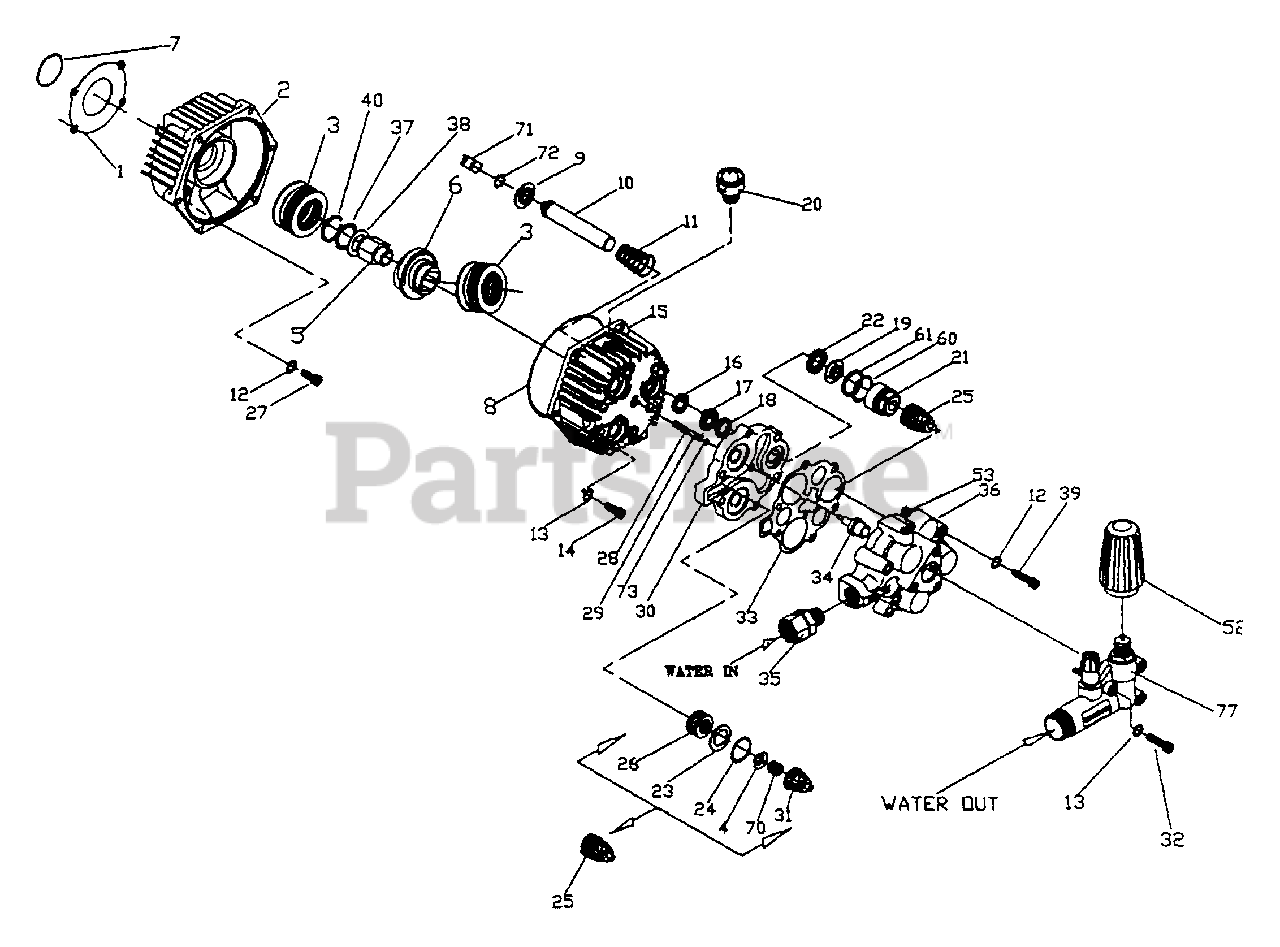

580.762250 (0764-0) - Craftsman 2,250 PSI Pressure Washer Pump Assembly Parts Diagram

2,250 PSI Pressure Washer

Pump Assembly Parts Diagram

  • Title

1

Briggs & Stratton A2098

GASKET, ENGINE ADAPTOR
(Superseded to A2098GS)

$3.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 96430A

ADAPTOR, ENGINE
(Superseded to 96430AGS)

$70.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96542

BEARING, ROLLER THRUST
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 97215

POPPET, CHECK VALVE
(Superseded to 97215GS)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1116

ADAPT., ENG. SHAFT
(Superseded to B1116GS)

$8.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 97671V

AXIAL CAM
(Superseded to 97671VGS)

$49.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton A2097

"O" RING
(Superseded to A2097GS)

$5.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 93790

"O" RING
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 95386

RETAINER, PISTON SPRING
(Superseded to 95386GS)

$1.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 95217

PISTON

$

$

Currently unavailable

11

Briggs & Stratton 96400

SPRING, PISTON RETURN
(Superseded to 96400GS)

$

$

Not available

12

Briggs & Stratton 92479

LOCKWASHER, M8 - RIBBED
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93873

LOCKWASHER, M6 - RIBBED

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 40945

M6 x 1 x 20 LONG SHCS
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 97568A

CRANKCASE, ALUMINUM
(Superseded to 97568AGS)

$94.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 93680

SEAL, OIL - PISTON
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 93668

SPACER, PILOT
(Superseded to 93668GS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 93667

SEAL, LO-PRESS "U" PAK
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 7

0

19

Briggs & Stratton 96015

RING, BEARING SEAL
(Superseded to 96015GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 99735

CAP, BREATHER
(Superseded to 99735GS)

$12.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 97027

TOWER, HIGH PRESS. PORT
(Superseded to 97027GS)

$20.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 96053

SEAL, HIGH PRESS. - BLACK
(Superseded to 96053GS)

$

$

Not available

23

Briggs & Stratton 95504

RING, BACK-UP
(Superseded to 95504GS)

$

$

Not available

24

Briggs & Stratton 95503

"O" RING
(Superseded to 95503GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 97128

KIT, CHECK VALVE
(Superseded to 97128GS)

$16.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 97028

SUPPORT, CHECK VALVE SEAT
(Superseded to 97028GS)

$7.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 95531

BOLT, 5/16-24 x 3/4" SHC
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 93652

SPRING, THERMAL BY-PASS
(Superseded to 93652GS)

$6.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 95416

PISTON, BY-PASS
(Superseded to 95416GS)

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 97122P

PLATE, SPACER
(Superseded to 97122PGS)

$36.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 89137

GUIDE, CHECK VALVE PLASTIC
(Superseded to 89137GS)

$7.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 46580

M6-1 X 45 SHCS
(Superseded to 46580GS)

$5.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 93645

GASKET, HEAD

$

$

Currently unavailable

34

Briggs & Stratton 93644

ACTUATOR, THERMAL BY-PASS
(Superseded to 93644GS)

$24.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 95320

CONNECTOR, GARDEN HOSE
(Superseded to 95320GS)

$42.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 97120P

HEAD, CYLINDER - ALUMINUM

$

$

Currently unavailable

37

Briggs & Stratton 95524

RETAINER WASHER
(Superseded to 95524GS)

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97570

WASHER, THRUST
(Superseded to 97570GS)

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 93874

SHCS, M8-1.25 x 75
(Superseded to 690346)

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 97675

C-RING, CAM RETAINER
(Superseded to 97675GS)

$3.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton A2283

HANDLE REPLACEMENT PART ONLY

$

$

Not available

53

Briggs & Stratton 96137

PLUG, PIPE 1/8 NPT
(Superseded to 96137GS)

$

$

Not available

60

Briggs & Stratton 96069

"O" RING
(Superseded to 96069GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95506

RING, BACK-UP
(Superseded to 95506GS)

$2.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 89138

SPRING, CHECK VALVE
(Superseded to 89138GS)

$5.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 94944

SHOE, PISTON PIVOT
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 94284

C-RING, RETAINER

$

$

Currently unavailable

73

Briggs & Stratton 93876

"O"-RING
(Superseded to 690312)

$3.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 21447

ASSEMBLY, UNLOADER
(Superseded to 5021447)

$101.99

$

Usually ships in 2-12 days
