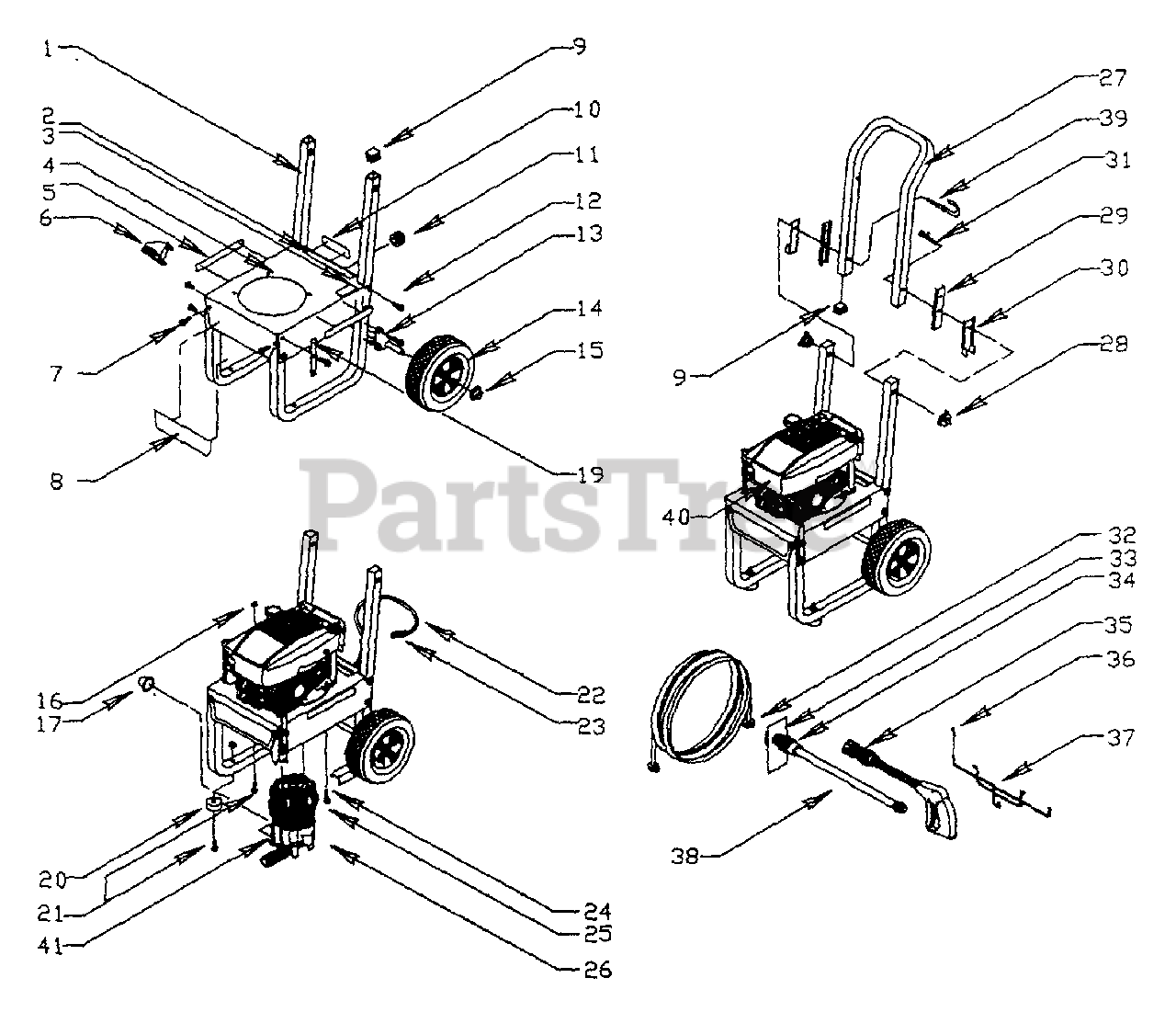

580.762250 (0764-0) - Craftsman 2,250 PSI Pressure Washer Motor And Carriage Assembly Parts Diagram

2,250 PSI Pressure Washer

Motor And Carriage Assembly Parts Diagram

  • Title

1

Briggs & Stratton 21416

VS PW LEG

$

$

Not available

2

Briggs & Stratton A2042

STARTING INSTRUCTION DECAL

$

$

Not available

3

Briggs & Stratton 96307

1-800 NUMBER DECAL
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21717

SHEET METAL BASE VSPW
(Superseded to 21717GS)

$

$

Not available

5

Briggs & Stratton 21449

DANGER/EXHAUST DECAL

$

$

Not available

6

Briggs & Stratton 97769

GUN CUP
(Superseded to 97769GS)

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 20441

1/4"-14 SELF DRILLER
(Superseded to 5020441)

$14.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 21227

LOGO DECAL

$

$

Not available

9

Briggs & Stratton 81895

3/4" SQ TUBING CAP
(Superseded to 81895GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 20042

IMPORTANT/CAUTION DECAL
(Superseded to 20042GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 30809

CHEM HOSE GROMMET
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 21450

DANGER DECAL

$

$

Not available

13

Briggs & Stratton 97741

PW AXLE ASSY
(Superseded to 97741GS)

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 21206

2" X 8" BLACK MAG TIRE
(Superseded to 21206GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75402

1/2" PUSHNUT
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 52858

M8 LOCKING FLANGE NUT
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 97098

CAP, GARDEN HOSE INLET
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 97100

M8 LOCKING FLANGE NUT
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B1024

HOSE GUARD
(Superseded to B1024GS)

$5.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 87841

RUBBER MOUNT FOOT
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 39414

M8 X 1.25 X 35 LONG HHCS
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton A1040B

CHEMICAL HOSE
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton A1041

CHEMICAL HOSE FILTER
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 39288

M8 X 1.25 X 55 LONG HHCS
(Superseded to 39288GS)

$3.49

$

Usually ships in 2-12 days

0

25

-----

FINAL PUMP ASSY.

Note: (For replacement, order 193461GS)

$

$

Not available

25

Briggs & Stratton 193461GS

REPLACEMENT PUMP ASSEMBLY

Note: (Must also order 208673GS Thermal Relief Valve)

$371.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 208673GS

VALVE, Relief, Thermal

$14.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 21301

PUMP HEAD ASSY.

$

$

Currently unavailable

27

Briggs & Stratton 21268

HANDLE VS PW

$1.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 97178

PW HANDLE KNOB
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 99368

S.S. WEAR PLATE
(Superseded to 99368GS)

$2.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 97082

HANDLE HOLDING CLIP
(Superseded to 97082GS)

$5.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 97912

1/4" - 20 X 2.25 CARRIAGE BOLT
(Superseded to 97912GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 91630

3/8" X 30' HOSE.

$

$

Not available

33

Briggs & Stratton 97566

NOZZLE HANG TAG
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 95587D

NOZZLE
(Superseded to 95587AGS)

$34.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 97117

HIGH PRESSURE GUN
(Superseded to 198209GS)

$85.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 21702

.203 DIA. BLACK VINYL CAP
(Superseded to 5021702)

$2.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 21208

WIREFORM
(Superseded to 5021208)

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97123

WAND EXTENSION
(Superseded to 97123GS)

$68.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 97998

EYE BOLT
(Superseded to 97998GS)

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 12H812-1167-01

* ENGINE, 6HP Briggs & Stratton

$

$

Currently unavailable

41

Briggs & Stratton 96636

TAG, CAUTION DISASSEMBLY
(Superseded to 96636GS)

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 21009

OWNER'S MANUAL PARTS

Note: NOT ILLUSTRATED

$

$

Not available

--

Briggs & Stratton 7175199

ROTATING BRUSH KIT
(Superseded to 7175199GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$82.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175189

UTILITY BRUSH KIT
(Superseded to 7175189GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$34.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175190

BROOM BRUSH KIT
(Superseded to 7175190GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$89.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7176486

2250 PSI TURBO NOZZLE
(Superseded to 7176486GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$86.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175187

GARDEN HOSE QUICK-CONNECT KIT
(Superseded to 7175187GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175100

MULTIPURPOSE CLEANER

Note: OPTIONAL ACCESSORY, NOT SHOWN

$

$

Currently unavailable

--

Briggs & Stratton 7175101

DECK WASH
(Superseded to 100524GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175102

VEHICLE WASH

Note: OPTIONAL ACCESSORY, NOT SHOWN

$

$

Currently unavailable

--

Briggs & Stratton 7175103

DEGREASER

Note: OPTIONAL ACCESSORY, NOT SHOWN

$

$

Currently unavailable

--

Briggs & Stratton 7175104

SPRAY WAX

Note: OPTIONAL ACCESSORY, NOT SHOWN

$

$

Currently unavailable

--

Briggs & Stratton 7175183

MULTIPURPOSE STORAGE BRACKET
(Superseded to 7175183GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$22.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175196

ANGLE WAND
(Superseded to 7175196GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$31.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175192

25-FOOT HIGH PRESSURE HOSE

Note: OPTIONAL ACCESSORY, NOT SHOWN

$

$

Currently unavailable

--

Briggs & Stratton 7175191

HOSE-TO-HOSE COUPLER

Note: OPTIONAL ACCESSORY, NOT SHOWN

$

$

Currently unavailable

--

Briggs & Stratton 7175197

ACCESSORY QUICK-CONNECT
(Superseded to 312981GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175181

PRESSURE GAUGE

Note: OPTIONAL ACCESSORY, NOT SHOWN

$

$

Not available

--

Briggs & Stratton 7175198

HIGH PRESSURE HOSE QUICK-CONNECT
(Superseded to 7175198GS)

Note: OPTIONAL ACCESSORY, NOT SHOWN

$35.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175181

PRESSURE GAUGE

Note: OPTIONAL ACCESSORY, NOT SHOWN

$

$

Not available
