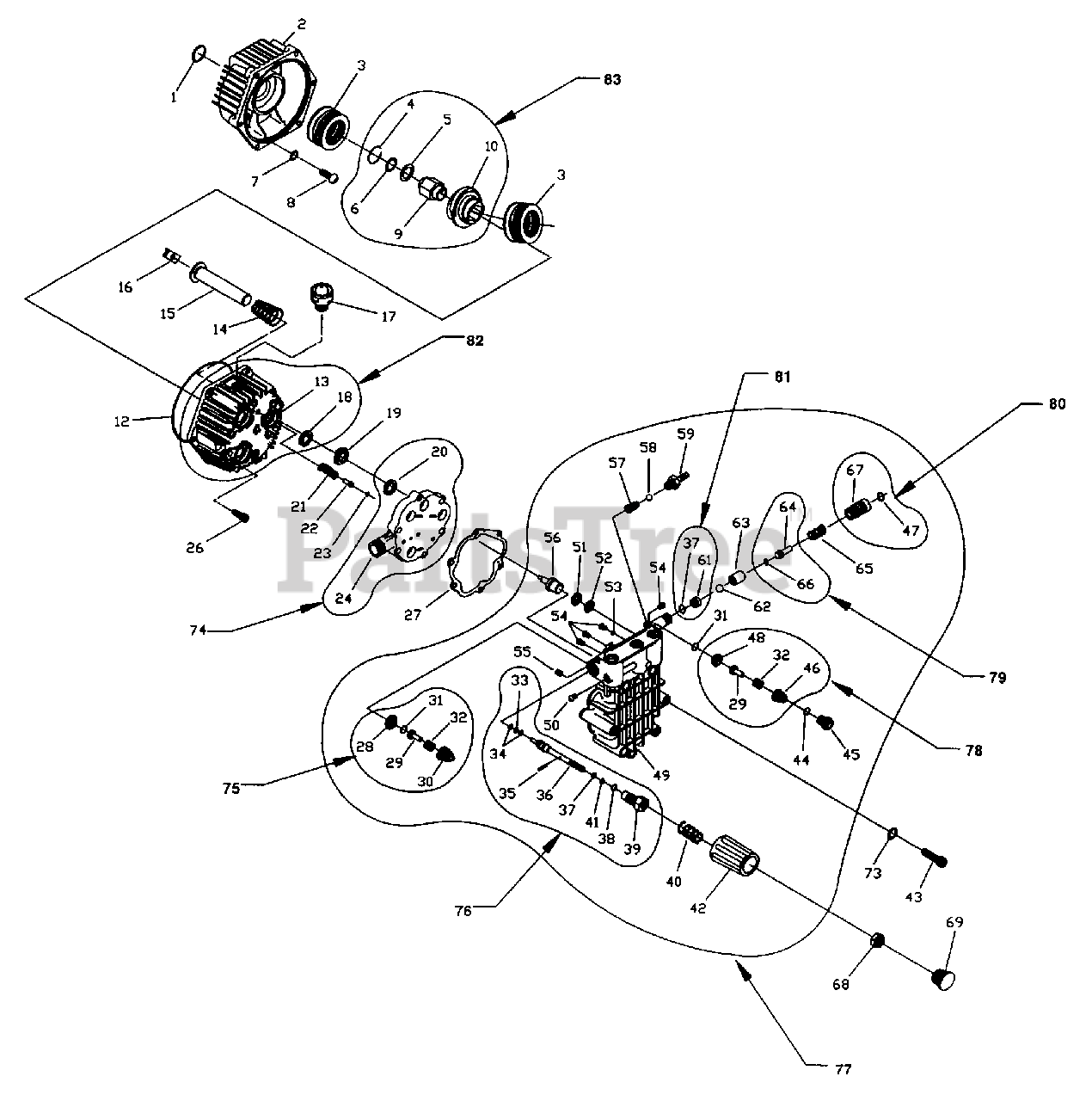

580.762201 (1051-1) - Craftsman 2,200 PSI Pressure Washer Pump & Crankcase Assemblies Parts Diagram

2,200 PSI Pressure Washer

Pump & Crankcase Assemblies Parts Diagram

  • Title

1

Briggs & Stratton B2218

O-RING, 1.625" x 0.103
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton B2260

ADAPTER, Engine
(Superseded to B2260GS)

$34.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96542

BEARING, Eng. Adptr. Roller Thrust 4x4
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 97675

O-RING, Cam Retainer
(Superseded to 97675GS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 97570

WASHER, Thrust
(Superseded to 97570GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 95524

WASHER, Retainer
(Superseded to 95524GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2217

O-RING, 0.239 ID x 0.070
(Superseded to B2217GS)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2261B

SCREW, Button Hd 5/16 - 24 x 3/4" Lg
(Superseded to B2261BGS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 95435

ADAPTER, Engine Shaft 3/4"
(Superseded to 95435GS)

$8.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 97671V

CAM, Axial 6.0 Lift
(Superseded to 97671VGS)

$49.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 93790

O-RING, Crankcase 113.97 x 119.21 x 2.62
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 97568A

CRANKCASE, Pump
(Superseded to 97568AGS)

$94.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 96400

SPRING, Piston Return
(Superseded to 96400GS)

$

$

Not available

15

Briggs & Stratton 99427

ASSEMBLY, Ceramic Piston & Cap
(Superseded to 99427GS)

$39.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 94944

SHOE, Piston Pivot
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99735

ASSEMBLY, Breather
(Superseded to 99735GS)

$12.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 93680

SEAL, Oil Piston
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 93668

SPACER, Pilot
(Superseded to 93668GS)

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 93667

SEAL, U - Cup ELF
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 10

0

21

Briggs & Stratton 93652

SPRING, Thermal Relief Actuator
(Superseded to 93652GS)

$6.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 95416

PISTON, Thermal Relief Actuator
(Superseded to 95416GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 93876

O-RING, Decal Relief 2.9 x 6.5 x 1.78
(Superseded to 690312)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1320

SPACER, Inlet Plate
(Superseded to A1320GS)

$

$

Not available

26

Briggs & Stratton 40945

SCREW, SHC M6 x 1.0 x 20 mm Lg
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

27

Briggs & Stratton A2069

GASKET, Head
(Superseded to A2069GS)

$4.99

$

In Stock, Qty 10

0

28

Briggs & Stratton A2062

SEAT, Check Valve Inlet
(Superseded to A2062GS)

$11.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton A2060

POPPET, Check Valve
(Superseded to A2060GS)

$7.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 97931

CAGE, Check Valve Inlet
(Superseded to 97931GS)

$5.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B2640

O-RING, Chk Valve 12.4 x 15.96 x 1.78
(Superseded to B2640GS)

$5.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 97929

SPRING, Check Valve Outlet
(Superseded to 97929GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 97843

O-RING, 9.25 x 12.81 x 1.78
(Superseded to 97843GS)

$

$

Not available

34

Briggs & Stratton A2017

PAR-BACK, Backup Ring
(Superseded to A2017GS)

$5.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton A1719

PIN, 2.0 Dia. Spindle
(Superseded to A1719GS)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton B3184

SPINDLE, Pressure Regulator

$

$

Not available

37

Briggs & Stratton 93656

O-RING, Spindle 6 x 10 x 1.78
(Superseded to 691120)

$12.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton A3829

O-RING, Retainer Nut 14 x 17.56 x 1.78
(Superseded to A3829GS)

$3.99

$

In Stock, only 1 left!

0

39

Briggs & Stratton A1712

NUT, Retainer - Spindle
(Superseded to B3479GS)

$50.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton A1716

SPRING, Unloader
(Superseded to A1716GS)

$7.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton A2016

PAR-BACK, Backup Ring
(Superseded to B3479GS)

$50.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B3117

HANDLE, Unloader
(Superseded to B3117GS)

$7.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton A2013

BOLT, Head M8 x 1.25 x 70mm Lg
(Superseded to A2013GS)

$5.99

$

In Stock, Qty 5

0

44

Briggs & Stratton 97840

O-RING, Chk Valve Cap 15.6 x 19.16 x 1.78
(Superseded to 97840GS)

$5.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 97841

CAP, Outlet Port
(Superseded to 97841GS)

$

$

Not available

46

Briggs & Stratton 20002

CAGE, Check Valve Outlet
(Superseded to 20002GS)

$4.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton A3805

O-RING, Venturi 10.82 x 14.38 x 1.78
(Superseded to A3805GS)

$3.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton A2217

SEAT, Check Valve Outlet

$

$

Currently unavailable

49

Briggs & Stratton A1318

CYLINDER, Head

$

$

Currently unavailable

50

Briggs & Stratton B1758

PLUG, Button M8 x 1.25 x 8 mm
(Superseded to B1758GS)

$3.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 96053

SEAL, High Pressure
(Superseded to 96053GS)

$

$

Not available

52

Briggs & Stratton 96015

RING, Bearing
(Superseded to 96015GS)

$3.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton A1717

MAGNET, Ball Deflector
(Superseded to A1717GS)

$3.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton B1757

PLUG, Button M6 x 1.0 x 8mm
(Superseded to B1757GS)

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton A1718

SET SCREW, M8 - 1.25 x 8mm
(Superseded to A1718GS)

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 93644

ACTUATOR, Thermal Relief
(Superseded to 93644GS)

$24.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 95380

SPRING, Chemical Injector
(Superseded to 95380GS)

$

$

Not available

58

Briggs & Stratton 95379

BALL, 5.5 dia. Chemical Injector

$

$

Not available

59

Briggs & Stratton A1575

BARB HOSE, Brass with Nylon Insert
(Superseded to A1575GS)

$

$

Not available

61

Briggs & Stratton A1713

SEAT, Ball Unloader
(Superseded to B2152GS)

$5.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton A2015

BALL, Stainless Steel 9/32 Dia.
(Superseded to A2015GS)

$5.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton A2503

SEAT, Trapped Line Pressure
(Superseded to A2503GS)

$6.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton A2756

VALVE, Shuttle Piston
(Superseded to B1879GS)

$5.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 89138

SPRING, Check Valve
(Superseded to 89138GS)

$5.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 21123

O-RING, 3.68 x 7.24 x 1.78 cs

$

$

Not available

67

Briggs & Stratton A1714

VENTURI, Chemical
(Superseded to B2151GS)

$12.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton A2014

SET SCREW, M6 - 1.0 x 8mm
(Superseded to A2014GS)

$3.49

$

Usually ships in 2-12 days

0

69

Briggs & Stratton B2241

CAP, Plastic
(Superseded to B2241GS)

$3.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton B2665

WASHER
(Superseded to B2665GS)

$3.49

$

In Stock, only 4 left!

0

74

Briggs & Stratton B2015

SPACER PLATE ASSEMBLY
(Superseded to B3509GS)

$95.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton B3100

INLET CHECK VALVE ASSEMBLY
(Superseded to B3100GS)

$3.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton B3185

UNLOADER SPINDLE ASSEMBLY

$

$

Currently unavailable

77

Briggs & Stratton B3183

PUMP HEAD ASSEMBLY

$

$

Currently unavailable

78

Briggs & Stratton A2034

OUTLET CHECK VALVE ASSEMBLY
(Superseded to A2034GS)

$15.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton B1879

TRAPPED LINE PRESSURE CHECK VALVE
(Superseded to B1879GS)

$5.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton B2151

VENTURE ASSEMBLY
(Superseded to B2151GS)

$12.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton B2152

BALL SEAT ASSEMBLY
(Superseded to B2152GS)

$5.49

$

Usually ships in 2-12 days

0

82

Briggs & Stratton B2016

CRANKCASE ASSEMBLY
(Superseded to B2016GS)

$60.99

$

In Stock, only 1 left!

0

83

Briggs & Stratton B3328

AXIAL CAM ASSEMBLY

$

$

Not available
