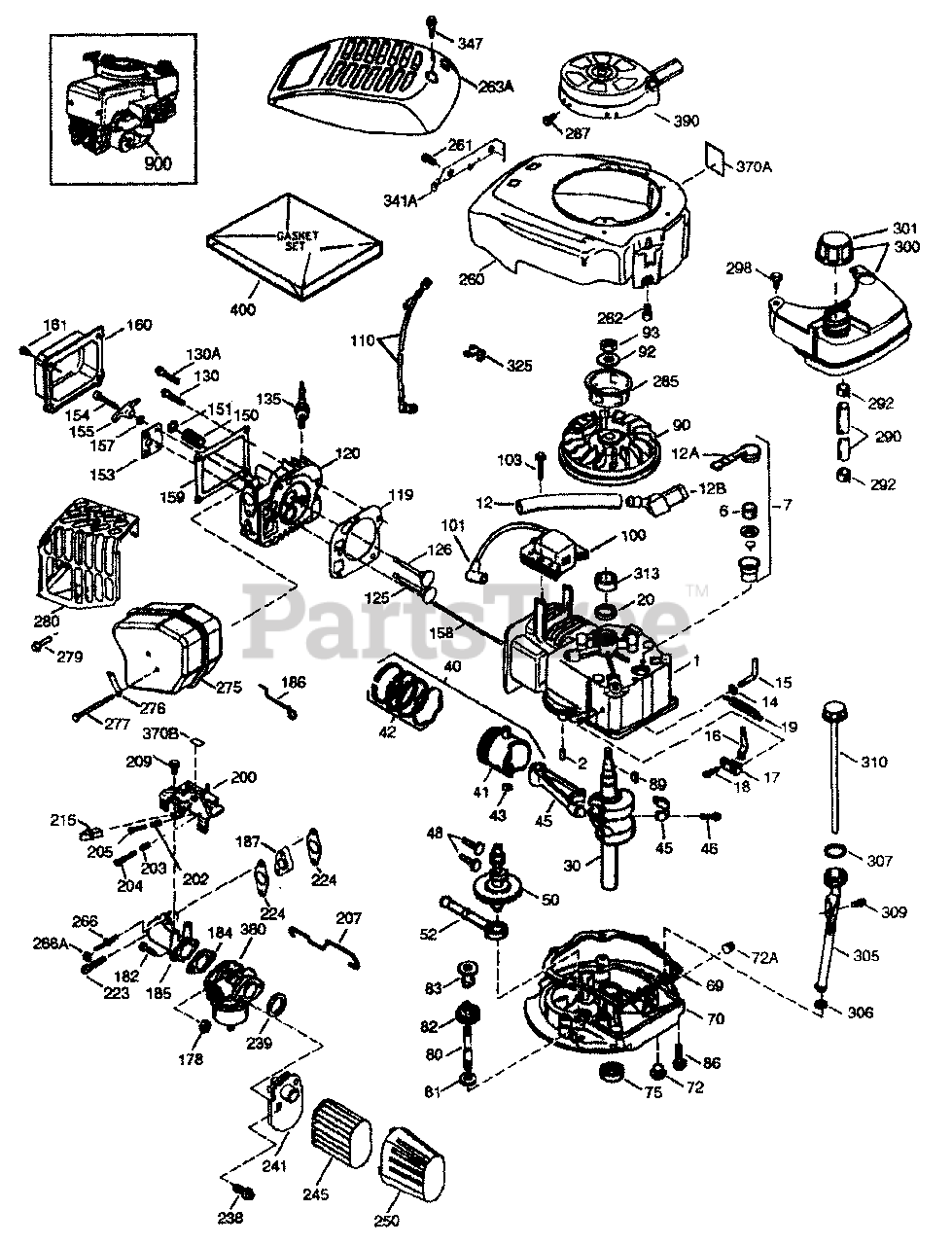

580.762200 (1051-0) - Craftsman 2,200 PSI Pressure Washer Engine Assembly Parts Diagram

2,200 PSI Pressure Washer

Engine Assembly Parts Diagram

  • Title

1

Briggs & Stratton 36835A

Cylinder

Note: (Incl. 2 & 20)

$

$

Currently unavailable

2

Briggs & Stratton 26727

Dowel Pin
(Superseded to 26727GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 33734

Breather Element

$

$

Currently unavailable

7

Briggs & Stratton 36557

Breather Ass'y.

Note: (Incl. 6 & 12A)

$

$

Currently unavailable

12

Briggs & Stratton 32447

Breather Tube

$

$

Currently unavailable

12A

Briggs & Stratton 36558

Breather Cover & Tube

Note: (Incl. 12B)

$

$

Currently unavailable

12B

Briggs & Stratton 36694

Breather Tube Elbow

$

$

Currently unavailable

14

Briggs & Stratton 28277

Washer

$

$

Not available

15

Briggs & Stratton 30589

Governor Rod

Note: (Incl. 14)

$

$

Currently unavailable

16

Briggs & Stratton 34839A

Governor Lever

$

$

Currently unavailable

17

Briggs & Stratton 31335

Governor Lever Clamp

$

$

Currently unavailable

18

Briggs & Stratton 651018

Screw, Torx T-15, 8-32 x 19/64"

$

$

Currently unavailable

19

Briggs & Stratton 36281

Extension Spring

$

$

Currently unavailable

20

Briggs & Stratton 32600

Oil Seal

$

$

Currently unavailable

30

Briggs & Stratton 37208

Crankshaft

$

$

Currently unavailable

40

Briggs & Stratton 35544A

Piston, Pin & Ring Set (Std.)

$

$

Currently unavailable

40

Briggs & Stratton 35545A

Piston, Pin & Ring Set (.010" OS)

$

$

Currently unavailable

40

Briggs & Stratton 35546

Piston, Pin & Ring Set (.020" OS)

$

$

Currently unavailable

41

Briggs & Stratton 35541

Piston & Pin Ass'y. (Std.)

$

$

Currently unavailable

41

Briggs & Stratton 35542

Piston & Pin Ass'y. (.010" OS)

Note: (Incl. 43)

$

$

Currently unavailable

41

Briggs & Stratton 35543

Piston & Pin Ass'y. (.020" OS)

Note: (Incl. 43)

$

$

Currently unavailable

42

Briggs & Stratton 35547A

Ring Set (Std.)

$

$

Currently unavailable

42

Briggs & Stratton 35548A

Ring Set (.010" OS)

$

$

Currently unavailable

42

Briggs & Stratton 35549

Ring Set (.020" OS)

$

$

Currently unavailable

43

Briggs & Stratton 20381

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Briggs & Stratton 32B75A

Connecting Rod Ass'y.

Note: (Incl. 46)

$

$

Currently unavailable

46

Briggs & Stratton 32610A

Connecting Rod Bolt

$

$

Currently unavailable

48

Briggs & Stratton 35616

Valve Lifter

$

$

Currently unavailable

50

Briggs & Stratton 37011

Camshaft (MCR)

$

$

Currently unavailable

52

Briggs & Stratton 29914

Oil Pump Ass'y.

$

$

Currently unavailable

69

Briggs & Stratton 37130

Mounting Flange Gasket

$

$

Currently unavailable

70

Briggs & Stratton 37190

Mounting Flange

Note: (Incl. 72 thru 83, 306)

$

$

Currently unavailable

72

Briggs & Stratton 36083

Oil Drain Plug

$

$

Currently unavailable

72A

Briggs & Stratton 28534

Oil Drain Plug

$

$

Currently unavailable

75

Briggs & Stratton 28460

Oil Seal
(Superseded to 7028460YP)

$4.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 30574A

Governor Shaft

$

$

Currently unavailable

81

Briggs & Stratton 30590A

Washer

$

$

Currently unavailable

82

Briggs & Stratton 30591

Governor Gear Ass'y.

Note: (Incl. 81)

$

$

Currently unavailable

83

Briggs & Stratton 30588A

Governor Spool

$

$

Currently unavailable

86

Briggs & Stratton 650488

Screw, 1/4-20 x 1-1/4"

$

$

Currently unavailable

89

Briggs & Stratton 610961

Flywheel Key

$

$

Currently unavailable

90

Briggs & Stratton 611213

Flywheel

$

$

Currently unavailable

92

Briggs & Stratton 650815

Belleville Washer

$

$

Currently unavailable

93

Briggs & Stratton 650816

Flywheel Nut

$

$

Currently unavailable

100

Briggs & Stratton 34443B

Solid State Ignition

$

$

Currently unavailable

101

Briggs & Stratton 610118

Spark Plug Cover

$

$

Currently unavailable

103

Briggs & Stratton 651007

Screw, Torx T-15, 10-24 x 15/16"

$

$

Currently unavailable

110

Briggs & Stratton 36230

Ground Wire

$

$

Currently unavailable

119

Briggs & Stratton 36738

Cylinder Head Gasket

$

$

Currently unavailable

120

Briggs & Stratton 36721

Cylinder Head

$

$

Currently unavailable

125

Briggs & Stratton 36471

Exhaust Valve (Std.)

Note: (Incl. 151)

$

$

Currently unavailable

125

Briggs & Stratton 36472

Exhaust Valve (1/32" OS)

Note: (Incl. 151)

$

$

Currently unavailable

126

Briggs & Stratton 29314B

Intake Valve (Std.)

Note: (Incl. 151)

$

$

Currently unavailable

126

Briggs & Stratton 29315C

Intake Valve (1/32" OS)

Note: (Incl. 151)

$

$

Currently unavailable

130

Briggs & Stratton 650912

Screw, 5/16-18 x 1-1/2"

$

$

Currently unavailable

130A

Briggs & Stratton 650999

Screw, 5/16-18 x 2-41/64"

$

$

Currently unavailable

135

Briggs & Stratton 34645

Resistor Spark Plug (RN4C)

$

$

Currently unavailable

150

Briggs & Stratton 31672

Valve Spring

$

$

Currently unavailable

151

Briggs & Stratton 31673

Valve Spring Cap

$

$

Currently unavailable

153

Briggs & Stratton 36649

Push Rod Guide

$

$

Currently unavailable

154

Briggs & Stratton 650913

Rocker Arm Stud

$

$

Currently unavailable

155

Briggs & Stratton 35624A

Rocker Arm

$

$

Currently unavailable

157

Briggs & Stratton 650914

Lock Nut

$

$

Currently unavailable

158

Briggs & Stratton 36629

Push Rod

$

$

Currently unavailable

159

Briggs & Stratton 35626

Rocker Arm Cover Gasket

$

$

Currently unavailable

160

Briggs & Stratton 35718

Rocker Arm Housing

$

$

Currently unavailable

161

Briggs & Stratton 30063

Screw, Torx T-30, 1/4-20 x 1/2"

$

$

Currently unavailable

178

Briggs & Stratton 29752

Nut & Lock Washer, 1/4-28

$

$

Currently unavailable

182

Briggs & Stratton 30088A

Screw, 1/4-28 x 1"

$

$

Currently unavailable

184

Briggs & Stratton 26756

Carburetor Gasket

$

$

Currently unavailable

185

Briggs & Stratton 36579

Intake Pipe

$

$

Currently unavailable

186

Briggs & Stratton 34337

Governor Link

$

$

Currently unavailable

187

Briggs & Stratton 36580

Spacer

$

$

Currently unavailable

200

Briggs & Stratton 35727

Control Bracket

Note: (Incl. 202 thru 205)

$

$

Currently unavailable

202

Briggs & Stratton 36482

Compression Spring

$

$

Currently unavailable

203

Briggs & Stratton 31342

Compression Spring

$

$

Currently unavailable

204

Briggs & Stratton 651029

Screw, Torx T-10, 5-40 x 7/16"

$

$

Currently unavailable

205

Briggs & Stratton 651019

Screw, Torx T-10, 6-32 x 41/64"

$

$

Currently unavailable

207

Briggs & Stratton 34336

Throttle Link

$

$

Not available

209

Briggs & Stratton 30200

Screw, 10-24 x 9/16"

$

$

Currently unavailable

215

Briggs & Stratton 32410

Control Knob

$

$

Currently unavailable

223

Briggs & Stratton 651044

Screw, 1/4-20 x 2-25/32"

$

$

Currently unavailable

224

Briggs & Stratton 36581

Intake Pipe Gasket

$

$

Currently unavailable

238

Briggs & Stratton 650932

Screw, 10-32 x 49/64"

$

$

Currently unavailable

239

Briggs & Stratton 34338

Air Cleaner Gasket

$

$

Currently unavailable

241

Briggs & Stratton 36919

Air Cleaner Collar

$

$

Currently unavailable

245

Briggs & Stratton 36905

Air Cleaner Filter

$

$

Currently unavailable

250

Briggs & Stratton 36920

Air Cleaner Cover

$

$

Currently unavailable

260

Briggs & Stratton 37180

Blower Housing

$

$

Currently unavailable

261

Briggs & Stratton 30063

Screw, Torx T-30, 1/4-20 x 1/2"

$

$

Currently unavailable

262

Briggs & Stratton 650831

Screw, 1/4-20 x 1/2"

$

$

Currently unavailable

263A

Briggs & Stratton 37184

Starter Grill

$

$

Currently unavailable

266

Briggs & Stratton 651040

Stud, 1/4-20

$

$

Currently unavailable

266A

Briggs & Stratton 650852

Nut & Lockwasher, 1/4-20

$

$

Currently unavailable

275

Briggs & Stratton 36950

Muffler

Note: (Incl. 276 & 277)

$

$

Currently unavailable

276

Briggs & Stratton 36949

Locking Plate

$

$

Currently unavailable

277

Briggs & Stratton 651039

Screw, 1/4-20 x 2-47/64"

$

$

Currently unavailable

279

Briggs & Stratton 650431

Screw, Torx T-25, 10-32 x 5/8"

$

$

Currently unavailable

280

Briggs & Stratton 37210

Heat Shield

$

$

Currently unavailable

285

Briggs & Stratton 3500QA

Starter Cup

$

$

Currently unavailable

287

Briggs & Stratton 650926

Screw, 8-32 x 21/64"

$

$

Currently unavailable

290

Briggs & Stratton 29774

Fuel Line

$

$

Currently unavailable

292

Briggs & Stratton 26460

Fuel Line Clamp

$

$

Currently unavailable

298

Briggs & Stratton 28763

Screw, 10-32 x 35/64"

$

$

Currently unavailable

300

Briggs & Stratton 36916

Fuel Tank

Note: (Incl. 292 & 301)

$

$

Not available

301

Briggs & Stratton 36246

Fuel Cap

$

$

Currently unavailable

305

Briggs & Stratton 35647

Oil Fill Tube

$

$

Currently unavailable

306

Briggs & Stratton 36996

"O"-Ring

$

$

Currently unavailable

307

Briggs & Stratton 35499

"O"-Ring

$

$

Currently unavailable

309

Briggs & Stratton 650562

Screw, 10-32 x 1/2"

$

$

Currently unavailable

310

Briggs & Stratton 35648

Dipstick

$

$

Currently unavailable

313

Briggs & Stratton 34080

Spacer

$

$

Currently unavailable

325

Briggs & Stratton 29443

Spring Clip
(Superseded to 7061017YP)

$

$

Not available

341A

Briggs & Stratton 36578

Blower Housing Support Bracket

$

$

Currently unavailable

347

Briggs & Stratton 651038

Screw, 10-32 x 27/32"

$

$

Currently unavailable

370A

Briggs & Stratton 36261

Lubrication Decal

$

$

Not available

370B

Briggs & Stratton 35169

Control Decal

$

$

Currently unavailable

380

Briggs & Stratton 640147

Carburetor

Note: (Incl. 184)

$

$

Currently unavailable

390

Briggs & Stratton 590739

Rewind Starter

$

$

Currently unavailable

400

UNKNOWN

$

$

Not available

900

Briggs & Stratton 0

Replacement Engine

$

$

Currently unavailable

900

Briggs & Stratton 0

Replacement S/B 750835, order from 71-999

$

$

Currently unavailable

Briggs & Stratton 590702

Starter

Note: See Note, Ref. #390

$57.99

$

Usually ships in 2-12 days

0
