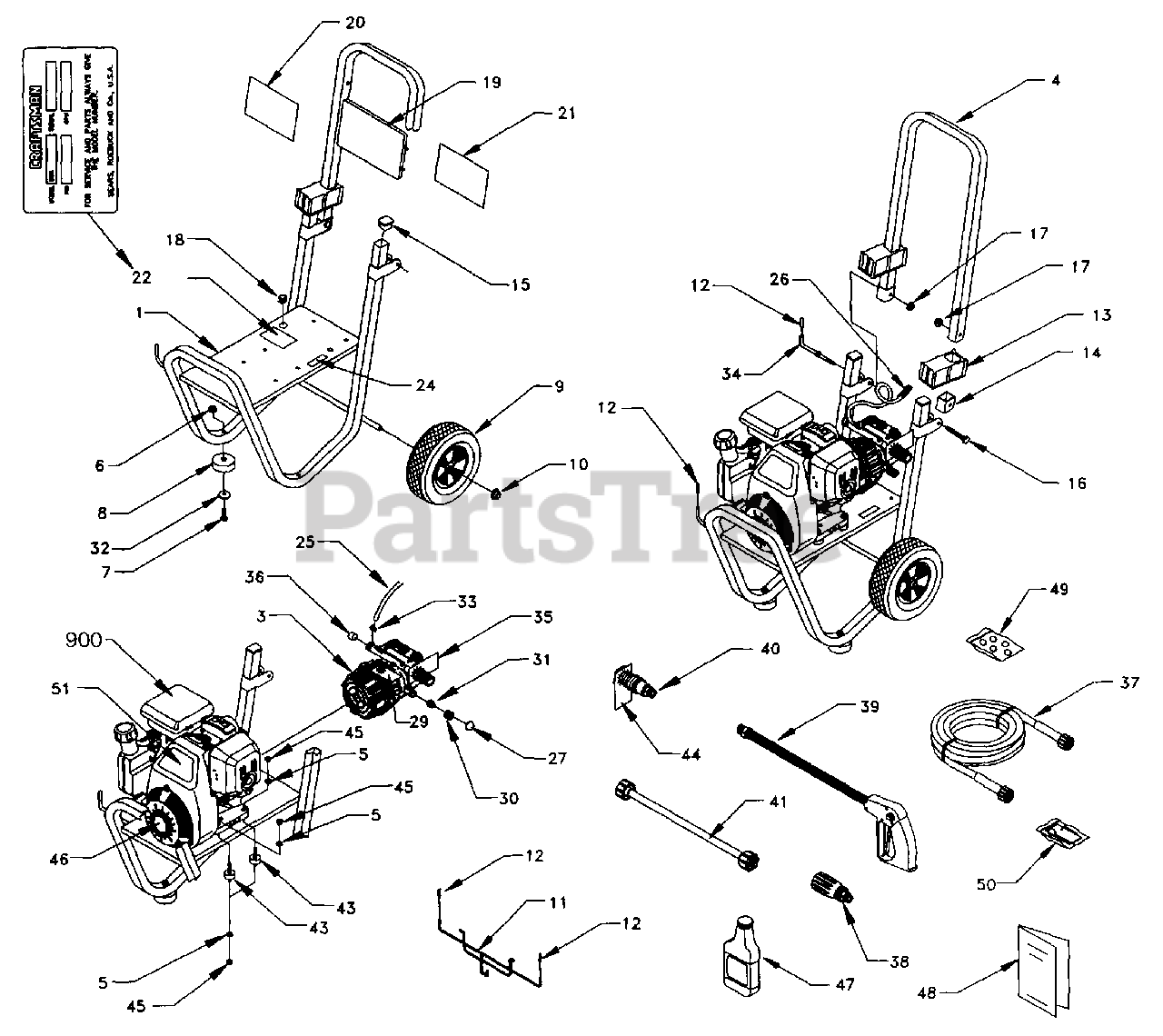

580.762011 (1054-2) - Craftsman 2,500 PSI Pressure Washer General Assembly Parts Diagram

2,500 PSI Pressure Washer

General Assembly Parts Diagram

  • Title

1

Briggs & Stratton EB2789

BASE, HSPW

$

$

Currently unavailable

3

-----

PUMP

Note: (For Replacement, order 198347GS)

$

$

Not available

3

Briggs & Stratton 198347GS

REPLACEMENT PUMP ASSEMBLY
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton EB2534

HANDLE
(Superseded to EB2534GS)

$48.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22129

LOCKWASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 39287

HHCS, M8 x 45
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 27007

MOUNT, Rubber Foot
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

9

Briggs & Stratton B2142

WHEEL, 2" x 9" Black Mag
(Superseded to B2142GS)

$19.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

11

Briggs & Stratton B2168

HANGER, Hose

$

$

Currently unavailable

12

Briggs & Stratton B1460

CAP, Vinyl
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2347

CAP, End
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 46476

CAPLUG
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 31669

BOLT, 1/4" - 20 x 1-3/4" Carriage
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

17

Briggs & Stratton B2071

NUT, 1/4" - 20 Locking Flange
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 92235

GROMMET, Turbo Nozzle
(Superseded to 199553GS)

$4.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B1631A

BILLBOARD
(Superseded to B1631AGS)

$35.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B1851

DECAL, Craftsman 2000 PSI
(Superseded to B1851GS)

$7.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B2796

DECAL, Instructions
(Superseded to B2796GS)

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 91373

DECAL, Data

$

$

Currently unavailable

24

Briggs & Stratton 96307

DECAL, 1-800 #
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton A1040A

HOSE, Chemical
(Superseded to A1040AGS)

$10.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton A1408

CAP, Garden Hose Inlet
(Superseded to A1408GS)

$

$

Not available

29

Briggs & Stratton B1288

TAG, Breather Cap
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 21782

QUICK DISCONNECT, Female

$

$

Not available

31

Briggs & Stratton 21781

QUICK DISCONNECT, Male

$

$

Not available

32

Briggs & Stratton 50190

WASHER, M8 Flat
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 48031G

CLAMP, Hose 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B2759

HOOK, Square Neck 1/4" - 20
(Superseded to B2759GS)

$3.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 97054

TAG, Pressure Adjust

$

$

Not available

36

Briggs & Stratton 97100

CAP, High Pressure
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B1969

HOSE, 1/4" x 25'

$

$

Currently unavailable

38

Briggs & Stratton 95529

TURBO, Nozzle
(Superseded to 95529GS)

$

$

Not available

39

Briggs & Stratton B2370

GUN, High Pressure
(Superseded to B2370GS)

$78.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 95587C

NOZZLE, Adjustable
(Superseded to 95587CGS)

$34.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 97123

WAND, Extension
(Superseded to 97123GS)

$68.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 21217

MOUNT, Vibration
(Superseded to 21217GS)

$7.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 97566

TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 45771

NUT, M8 - 1.25 Hex

$

$

Not available

46

Briggs & Stratton B2517

DECAL, Recoil Honda

$

$

Currently unavailable

47

Briggs & Stratton 96382

OIL, Engine SAE 30

$

$

Currently unavailable

48

Briggs & Stratton B3254

MANUAL, Owners
(Superseded to B3254GS)

$14.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B2730

KIT, O-Ring Maintenance
(Superseded to B2730GS)

$18.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 97009

KIT, Nozzle Cleaning
(Superseded to 97009GS)

$7.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton B3095

DECAL, 5.0 HP
(Superseded to B3095GS)

$3.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE, Honda 5HP GC160QHA

$

$

Currently unavailable

--

Briggs & Stratton 7175187

Garden Hose Quick Connect
(Superseded to 7175187GS)

Note: Optional Accessories, Not Illustrated

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197

Accessory Quick Connect Kit
(Superseded to 312981GS)

Note: Optional Accessories, Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175199

Rotating Brush
(Superseded to 7175199GS)

Note: Optional Accessories, Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7176430

Floor Brush

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7176431

Utility Brush

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7175115

25' Replacement Hose

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7176450

25' Extension Hose

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7176451

50' Extension Hose

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O-Ring Replacement Kit
(Superseded to 196002GS)

Note: Optional Accessories, Not Illustrated

$18.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 7176486

Turbo Nozzle
(Superseded to 7176486GS)

Note: Optional Accessories, Not Illustrated

$86.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7176400

House Wash

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7176401

Deck Wash

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7176402

Vehicle/Boat Wash

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7176403

Degreaser

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable
