580.761810 (1055-0) - Craftsman 1,800 PSI Pressure Washer Motor Parts Diagram

1,800 PSI Pressure Washer

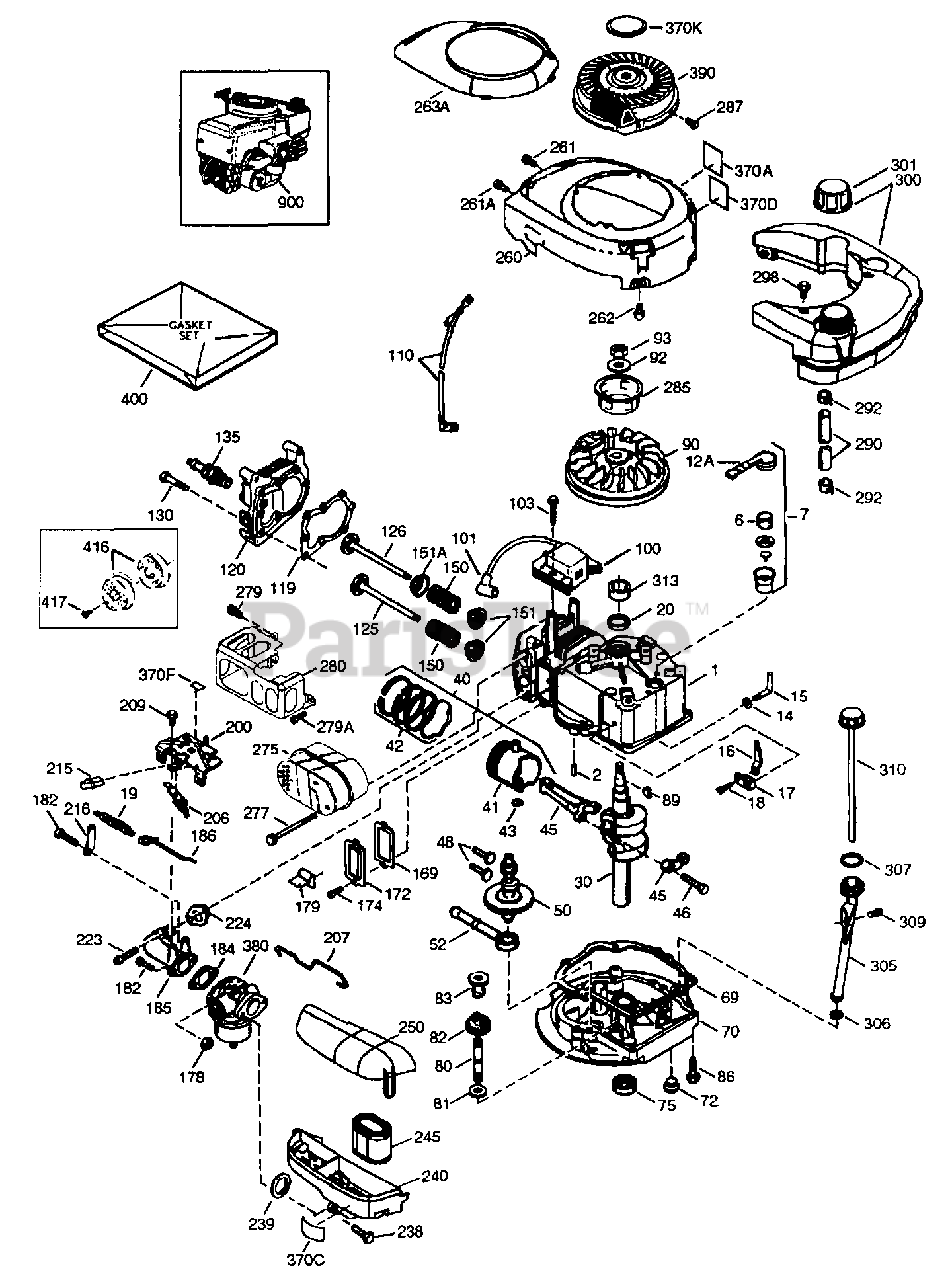

Motor Parts Diagram

  • Title

1

Briggs & Stratton 36774

Cylinder

Note: (Incl. 2 & 20)

$

$

Currently unavailable

2

Briggs & Stratton 26727

Dowel Pin
(Superseded to 26727GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 33734

Breather Element

$

$

Currently unavailable

7

Briggs & Stratton 36557

Breather Ass'y.

Note: (Incl. 6 & 12A)

$

$

Currently unavailable

12A

Briggs & Stratton 36558

Breather Cover & Tube

$

$

Currently unavailable

14

Briggs & Stratton 28277

Washer

$

$

Not available

15

Briggs & Stratton 30589

Governor Rod

Note: (Incl. 14)

$

$

Currently unavailable

16

Briggs & Stratton 34839A

Governor Lever

$

$

Currently unavailable

17

Briggs & Stratton 31335

Governor Lever Clamp

$

$

Currently unavailable

18

Briggs & Stratton 651018

Screw, Torx T-15, 8-32 x 19/64"

$

$

Currently unavailable

19

Briggs & Stratton 35988

Extension Spring

$

$

Currently unavailable

20

Briggs & Stratton 32600

Oil Seal

$

$

Currently unavailable

30

Briggs & Stratton 35860

Crankshaft

$

$

Currently unavailable

40

Briggs & Stratton 40027

Piston, Pin & Ring Set (Std.)

$

$

Currently unavailable

40

Briggs & Stratton 40028

Piston, Pin & Ring Set (.010" OS)

$

$

Currently unavailable

41

Briggs & Stratton 40025

Piston & Pin Ass'y (std.)

Note: (Incl. 43)

$

$

Currently unavailable

41

Briggs & Stratton 40026

Piston & Pin Ass'y (.010" OS)

Note: (Incl. 43)

$

$

Currently unavailable

42

Briggs & Stratton 40006

Ring Set (Std.)

$

$

Currently unavailable

42

Briggs & Stratton 40007

Ring Set (.010")

$

$

Currently unavailable

43

Briggs & Stratton 20381

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Briggs & Stratton 36777

Connecting Rod Ass'y

Note: (Incl. 46)

$

$

Currently unavailable

46

Briggs & Stratton 32610A

Connecting Rod Bolt

$

$

Currently unavailable

48

Briggs & Stratton 27241

Valve Lifter

$

$

Currently unavailable

50

Briggs & Stratton 36778

Camshaft (MCR)

$

$

Currently unavailable

52

Briggs & Stratton 29914

Oil Pump Ass'y

$

$

Currently unavailable

69

Briggs & Stratton 35261

Mounting Flange Gasket

$

$

Currently unavailable

70

Briggs & Stratton 36995

Mounting Flange

Note: (Incl. 72 thru 83)

$

$

Currently unavailable

72

Briggs & Stratton 36083

Oil Drain Plug

$

$

Currently unavailable

75

Briggs & Stratton 27897

Oil Seal

$

$

Currently unavailable

80

Briggs & Stratton 30574A

Governor Shaft

$

$

Currently unavailable

81

Briggs & Stratton 30590A

Washer

$

$

Currently unavailable

82

Briggs & Stratton 30591

Governor Gear Ass'y.

Note: (Incl. 81)

$

$

Currently unavailable

83

Briggs & Stratton 30588A

Governor Spool

$

$

Currently unavailable

86

Briggs & Stratton 650488

Screw, 1/4-20 x 1-1/4"

$

$

Currently unavailable

89

Briggs & Stratton 610961

Flywheel Key

$

$

Currently unavailable

90

Briggs & Stratton 611213

Flywheel

$

$

Currently unavailable

92

Briggs & Stratton 650815

Belleville Washer

$

$

Currently unavailable

93

Briggs & Stratton 650816

Flywheel Nut

$

$

Currently unavailable

100

Briggs & Stratton 34443B

Solid State Ignition

$

$

Currently unavailable

101

Briggs & Stratton 610118

Spark Plug Cover

$

$

Currently unavailable

103

Briggs & Stratton 651007

Screw, Torx T-15, 10-24 x 15/16"

$

$

Currently unavailable

110

Briggs & Stratton 36230

Ground Wire

$

$

Currently unavailable

119

Briggs & Stratton 36787

Cylinder Head Gasket

$

$

Currently unavailable

120

Briggs & Stratton 36825

Cylinder Head

$

$

Currently unavailable

125

Briggs & Stratton 36779

Exhaust Valve (Std.)

Note: (Incl. 151)

$

$

Currently unavailable

126

Briggs & Stratton 36781

Intake Valve (Std.)

Note: (Incl. 151)

$

$

Currently unavailable

130

Briggs & Stratton 6021A

Screw, 5/16-18 x 1-1/2"

$

$

Currently unavailable

135

Briggs & Stratton 35395

Resistor Spark Plug (RJ19LM)

$

$

Currently unavailable

150

Briggs & Stratton 35991

Valve Spring

$

$

Currently unavailable

151

Briggs & Stratton 31673

Valve Spring Cap

$

$

Currently unavailable

151A

Briggs & Stratton 40017

Intake Valve Seat

$

$

Currently unavailable

169

Briggs & Stratton 36783

Valve Cover Gasket

$

$

Currently unavailable

172

Briggs & Stratton 36784

Valve Cover

$

$

Currently unavailable

174

Briggs & Stratton 30200

Screw, 10-24 x 9/16"

$

$

Currently unavailable

178

Briggs & Stratton 29752

Nut & Lock Washer, 1/4-28

$

$

Currently unavailable

179

Briggs & Stratton 30593

Retainer Clip

$

$

Currently unavailable

182

Briggs & Stratton 6201

Screw 1/4-28 x 7/8"

$70.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 26756

Carburetor To Intake Pipe Gasket

$

$

Currently unavailable

185

Briggs & Stratton 36785

Intake Pipe

$

$

Currently unavailable

186

Briggs & Stratton 32653

Governor Link

$

$

Currently unavailable

200

Briggs & Stratton 33205A

Control Bracket

Note: (Incl. 206)

$

$

Currently unavailable

206

Briggs & Stratton 610973

Terminal

$

$

Currently unavailable

207

Briggs & Stratton 34336

Throttle Link

$

$

Not available

209

Briggs & Stratton 30200

Screw, 10-32 x 9/16"

$

$

Currently unavailable

215

Briggs & Stratton 32410

Control Knob

$

$

Currently unavailable

216

Briggs & Stratton 33086

R.P.M. Adjusting Lever

$

$

Currently unavailable

223

Briggs & Stratton 650451

Screw, 1/4-20 x 1"

$

$

Currently unavailable

224

Briggs & Stratton 36786

Intake Pipe Filter

$

$

Currently unavailable

238

Briggs & Stratton 650806

Screw, 10-32 x 5/8"

$

$

Currently unavailable

239

Briggs & Stratton 34338

Air Cleaner Gasket

$

$

Currently unavailable

240

Briggs & Stratton 36743

Air Cleaner Body

$

$

Currently unavailable

245

Briggs & Stratton 36745

Air Cleaner Filter

$

$

Currently unavailable

250

Briggs & Stratton 36744

Air Cleaner Cover

$

$

Currently unavailable

260

Briggs & Stratton 36800

Blower Housing

$

$

Currently unavailable

261

Briggs & Stratton 30200

Screw, 10-24 x 9/16"

$

$

Currently unavailable

261A

Briggs & Stratton 650356

Screw, Torx T-30, 1/4-20 x 3/8"

$

$

Currently unavailable

262

Briggs & Stratton 650831

Screw, 1/4-20 x 1/2"

$

$

Currently unavailable

263A

Briggs & Stratton 36758

Starter Grill

$

$

Currently unavailable

275

Briggs & Stratton 36790

Muffler

$

$

Currently unavailable

277

Briggs & Stratton 650988

Screw, 1/4-20 x 2-5/16"

$

$

Currently unavailable

279

Briggs & Stratton 30200

Screw, 10-24 x 9/16"

$

$

Currently unavailable

279A

Briggs & Stratton 650902

Screw, 10-32 x 7/16"

$

$

Currently unavailable

280

Briggs & Stratton 37171

Heat Shield

$

$

Currently unavailable

285

Briggs & Stratton 35000A

Starter Cup

$

$

Currently unavailable

287

Briggs & Stratton 650926

Screw, 8-32 x 21/64"

$

$

Currently unavailable

290

Briggs & Stratton 34357

Fuel Line

$

$

Currently unavailable

292

Briggs & Stratton 26460

Fuel Line Clamp

$

$

Currently unavailable

298

Briggs & Stratton 28763

Screw, 10-32 x 35/64"

$

$

Currently unavailable

300

Briggs & Stratton 36757

Fuel Tank

Note: (Incl. 292 & 301)

$

$

Currently unavailable

301

Briggs & Stratton 36246

Fuel Cap

$

$

Currently unavailable

305

Briggs & Stratton 35577

Oil Fill Tube

$

$

Currently unavailable

306

Briggs & Stratton 36996

"O"-Ring

$

$

Currently unavailable

307

Briggs & Stratton 35499

"O"-Ring

$

$

Currently unavailable

309

Briggs & Stratton 650562

Screw, 10-32 x 1/2"

$

$

Currently unavailable

310

Briggs & Stratton 35578

Dipstick

$

$

Currently unavailable

313

Briggs & Stratton 34080

Spacer

$

$

Currently unavailable

370A

Briggs & Stratton 36261

Lubrication Decal

$

$

Not available

370C

Briggs & Stratton 37199

Primer Decal

$

$

Currently unavailable

370D

Briggs & Stratton 35977

Caution Decal

$

$

Currently unavailable

370F

Briggs & Stratton 33183

Stop Decal

$

$

Currently unavailable

370K

Briggs & Stratton 36695

Starter Decal

$

$

Currently unavailable

380

Briggs & Stratton 640142

Carburetor

Note: (Incl. 184)

$

$

Currently unavailable

390

Briggs & Stratton 590732

Rewind Starter

$

$

Currently unavailable

400

Briggs & Stratton 36792B

Gasket Set

$

$

Currently unavailable

416

Briggs & Stratton 36085

Spark Arrestor Kit

Note: (Incl. 417); (Optional)

$

$

Currently unavailable

417

Briggs & Stratton 650760

Screw, 8-32 x 3/8"

Note: (Optional)

$

$

Currently unavailable

900

Briggs & Stratton ~NSP

Complete Engine 143.985012

$

$

Currently unavailable
