580.761800 (1050-0) - Craftsman 1,800 PSI Pressure Washer Water Pump Parts Diagram

1,800 PSI Pressure Washer

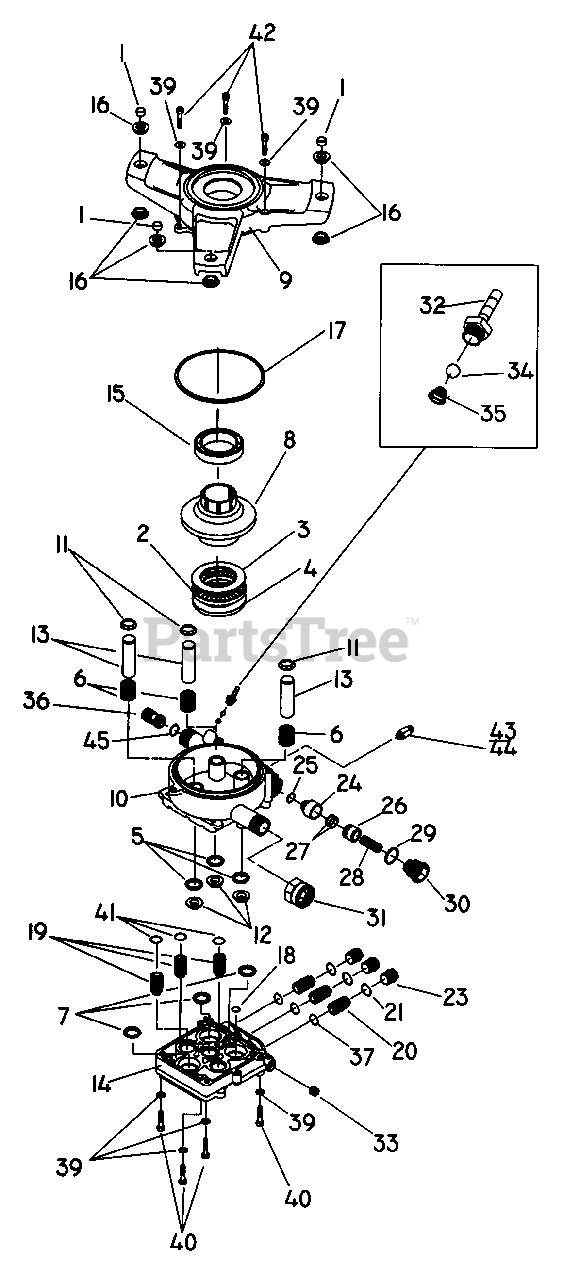

Water Pump Parts Diagram

  • Title

1

Briggs & Stratton 96795

SLEEVE, RUBBER GROMMET SPACER
(Superseded to 96795GS)

$3.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B2310

ASSY., CAGE NEEDLE BEARING 45 X 65
(Superseded to B2310GS)

$64.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B2310

WASHER, BRG. DIA. 45 x 65 x 1T
(Superseded to B2310GS)

$64.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B2310

WASHER, BRG. DIA. 36 x 65 x 6T
(Superseded to B2310GS)

Note: [SPECIAL]

$64.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1933

SEAL, OIL PISTON DIA. 15

$

$

Currently unavailable

6

Briggs & Stratton B2312

SPRING, PISTON RETURN - EG
(Superseded to B2312GS)

$112.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B1933

SEAL, U-CLIP

$

$

Currently unavailable

8

Briggs & Stratton B2310

CAM, AXIAL 5.6mm w/INSERT
(Superseded to B2310GS)

$64.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 98227

ADAPTER, ENGINE
(Superseded to 98227GS)

$21.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 20110

HOUSING, PISTON AND UNLOADER
(Superseded to 20110GS)

$73.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2312

RETAINER, PISTON SPRING
(Superseded to B2312GS)

$112.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B1933

SPACER, PILOT

$

$

Currently unavailable

13

Briggs & Stratton B2312

PISTON, DIA. 15-65 LONG
(Superseded to B2312GS)

$112.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton A1111B

HEAD, PUMP
(Superseded to A1111BGS)

$

$

Not available

15

Briggs & Stratton B2310

BEARING, BALL RADIAL
(Superseded to B2310GS)

$64.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 21429

BUSHING, RUBBER
(Superseded to 21429GS)

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B1933

"O" RING, HOUSING SEAL

$

$

Currently unavailable

18

Briggs & Stratton B1933

"O" RING, Hl-PRESSURE TRANSFER

$

$

Currently unavailable

19

Briggs & Stratton B2313

ASS'Y, CHECK VALVE - INLET
(Superseded to B2313GS)

$

$

Not available

20

Briggs & Stratton B2313

ASS'Y, CHECK VALVE - OUTLET
(Superseded to B2313GS)

$

$

Not available

21

Briggs & Stratton B1933

"O" RING, INLET PORT CAP

$

$

Currently unavailable

23

Briggs & Stratton 97841

CAP, INLET PORT
(Superseded to 97841GS)

$

$

Not available

24

Briggs & Stratton B1669

SEAT, UNLOADER
(Superseded to B1669GS)

$

$

Not available

25

Briggs & Stratton B1933

"O" RING, UNLOADER VENTURI

$

$

Currently unavailable

26

Briggs & Stratton B1669

PISTON, UNLOADER
(Superseded to B1669GS)

$

$

Not available

27

Briggs & Stratton B1933

SEAL, UNLOADER "PARBACK"

$

$

Currently unavailable

28

Briggs & Stratton B1669

SPRING, UNLOADER
(Superseded to B1669GS)

$

$

Not available

29

Briggs & Stratton B1933

"O" RING, UNLOADER CAP

$

$

Currently unavailable

30

Briggs & Stratton B1669

CAP, UNLOADER
(Superseded to B1669GS)

$

$

Not available

31

Briggs & Stratton 21424

GARDEN HOSE CONNECTOR
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B2311

BARB, HOSE WITH NYLON INSERT

$

$

Currently unavailable

33

Briggs & Stratton 96137

PLUG, 1/8" NPT [WITH SEALANT]
(Superseded to 96137GS)

$

$

Not available

34

Briggs & Stratton B1933

BALL, DIA. 5.5 CHEMICAL INJECTOR

$

$

Currently unavailable

35

Briggs & Stratton B1933

SPRING, CHEMICAL INJECTOR

$

$

Currently unavailable

36

Briggs & Stratton B2311

VENTURI, CHEMICAL INJECTOR

$

$

Currently unavailable

37

Briggs & Stratton B1933

"O" RING, CHECK VALVE - INLET

$

$

Currently unavailable

39

Briggs & Stratton 93873

LOCK WASHER, M6 RIBBED

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 40946

SOCKET HEAD CAPSCREW M6-1.0 x 35mm

$

$

Not available

41

Briggs & Stratton B1933

"O" RING PISTON HOUSING

$

$

Currently unavailable

42

Briggs & Stratton 97962

SOCKET HEAD CAPSCREW, M6-1.0 x 25mm
(Superseded to 97962GS)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 21783

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 20876

.5 OZ. SEALANT, THREAD LOCKTIGHT 545
(Superseded to 5023344)

$9.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B1933

"O" RING VENTURI

$

$

Currently unavailable

46

Briggs & Stratton B1933

ENGINE DONUT SEAL

$

$

Currently unavailable
