580.761800 (1050-0) - Craftsman 1,800 PSI Pressure Washer Gaskets and Carburetor Kit Parts Diagram

1,800 PSI Pressure Washer

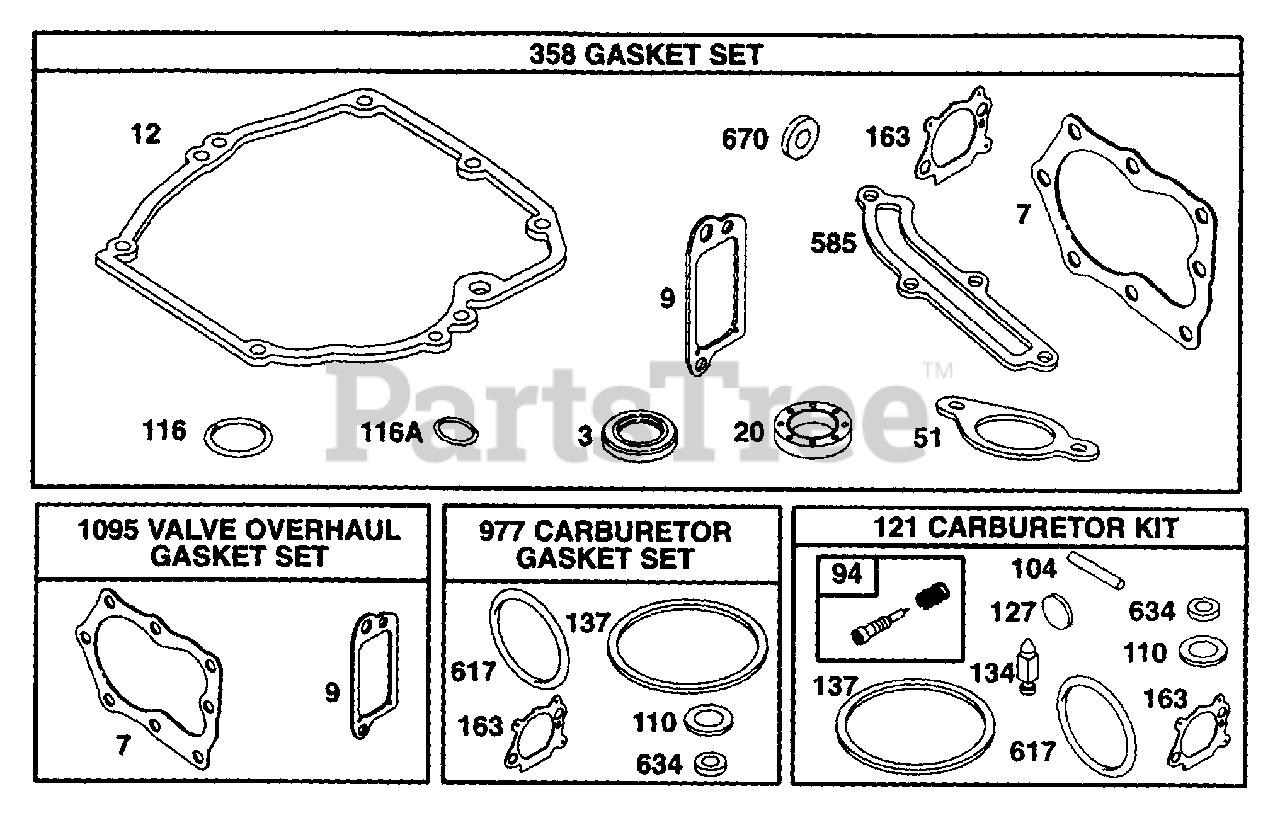

Gaskets and Carburetor Kit Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal - Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272916

Gasket - Cylinder Head
(Superseded to 692249)

Note: Included in Gasket Set-Part Number 497316. Included in valve Overhaul Gasket-Part No. 498528.

$8.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 272481

Gasket - Breather
(Superseded to 699833)

Note: Included in Gasket Set-Part Number 497316. Included in valve Overhaul Gasket-Part No. 498528.

$5.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 272198

Gasket - Crankcase
(Superseded to 692232)

Note: Included in Gasket Set-Part Number 497316.

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal - Oil
(Superseded to 399781S)

Note: Included in Gasket Set-Part Number 497316.

$7.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272199

Gasket - Intake
(Superseded to 272199S)

Note: Included in Gasket Set-Part Number 497316.

$4.99

$

In Stock, only 2 left!

0

94

Briggs & Stratton 493765

Valve - Idle Adjustment

Note: Included in Carburetor Kit-Part Number 498260.

$14.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Pin - Float Hinge
(Superseded to 797622)

Note: Included in Carburetor Kit-Part Number 498260.

$3.99

$

In Stock, Qty 10

0

110

Washer - Bowl

Note: (Sold in Kit Only); Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Not available

116

Briggs & Stratton 280393

Seal - O-Ring
(Superseded to 691031)

Note: Included in Gasket Set-Part Number 497316.

$5.49

$

In Stock, Qty 20+

0

116A

Briggs & Stratton 280966

Seal - O-Ring
(Superseded to 692296)

Note: Included in Gasket Set-Part Number 497316.

$4.99

$

In Stock, Qty 8

0

121

Briggs & Stratton 498260

Carburetor Kit

$16.99

$

In Stock, Qty 20+

0

127

Plug - Welch

Note: (Sold in Kit Only); Included in Carburetor Kit-Part Number 498260.

$

$

Not available

134

Briggs & Stratton 398188

Valve - Needle

Note: (Includes Seat); Included in Carburetor Kit-Part Number 498260.

$6.49

$

In Stock, Qty 20+

0

137

Gasket - Bowl

Note: (Sold in Kit Only); Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Not available

163

Briggs & Stratton 272653

Gasket - Air Cleaner
(Superseded to 795629)

Note: Included in Gasket Set-Part Number 497316. Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$3.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 2 left!

0

585

Briggs & Stratton 272238

Gasket - Breather Passage
(Superseded to 691879)

Note: Included in Gasket Set-Part Number 497316.

$6.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344

Seal - Intake Manifold
(Superseded to 270344S)

Note: Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$3.49

$

In Stock, Qty 20+

0

634

Washer - Shaft

Note: (Sold in Kit Only); Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Not available

670

Briggs & Stratton 493823

Spacer

Note: (Includes 2); Included in Gasket Set-Part Number 497316.

$6.49

$

In Stock, only 1 left!

0

977

Briggs & Stratton 498261

Gasket Set - Carburetor
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 498528

Gasket Set - Valve Overhaul

$26.99

$

Usually ships in 2-12 days

0
