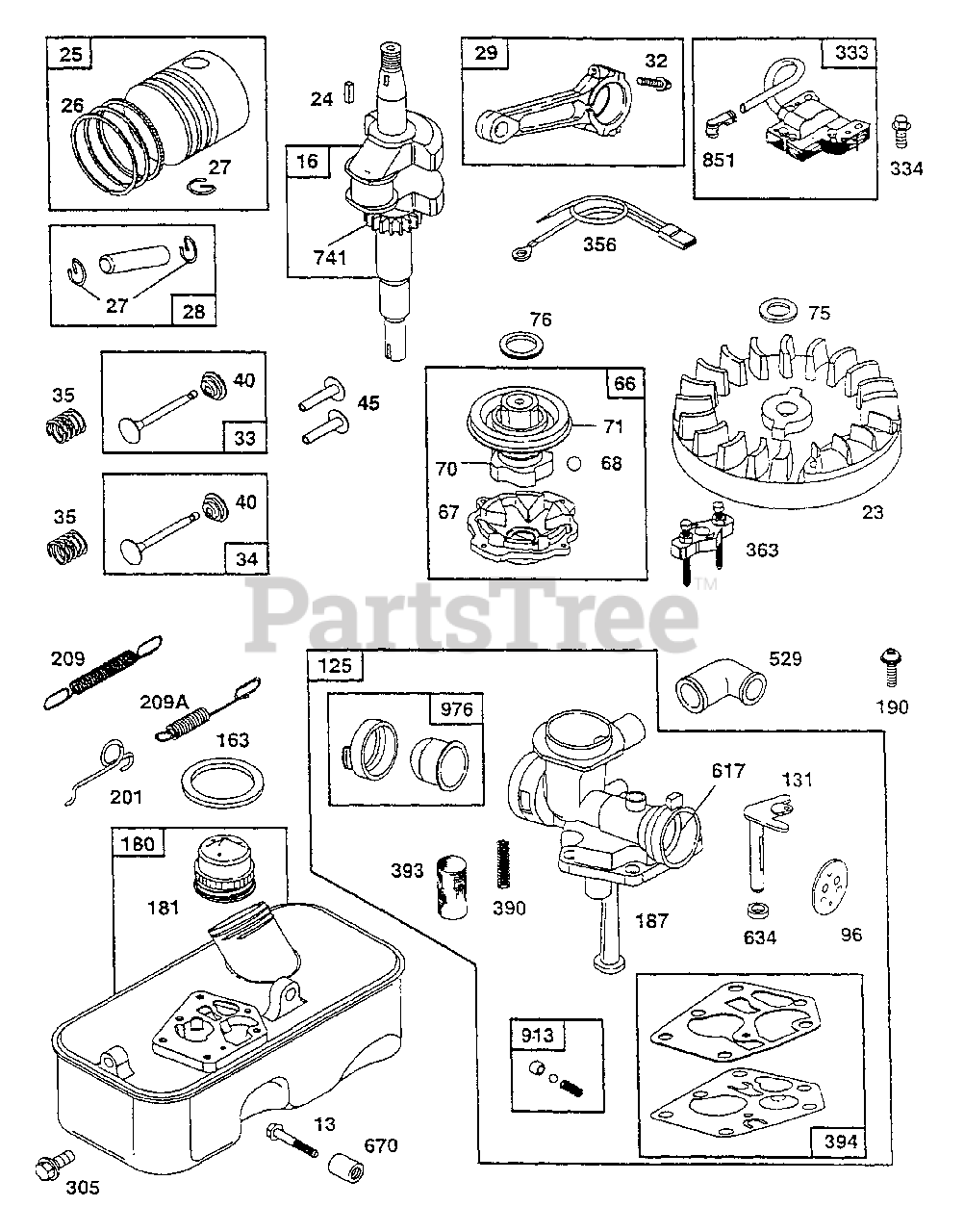

580.761750 (0763-0) - Craftsman 1,750 PSI Pressure Washer Motor Part 2 Parts Diagram

1,750 PSI Pressure Washer

Motor Part 2 Parts Diagram

  • Title

13

Briggs & Stratton 93111

Hex Screw
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 496839

Crankshaft

$117.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 496278

Flywheel
(Superseded to 795695)

$78.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Flywheel Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 498668

Piston Assembly (Standard)
(Superseded to 795691)

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498669

Piston Assembly (.010" O.S.)

$54.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498669

Piston Assembly (.020" O.S.)

$54.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498671

Piston Assembly (.030" O.S.)

$53.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498672

Ring Set (Standard)
(Superseded to 699658)

$45.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498673

Ring Set (.010" O.S.)

$

$

Currently unavailable

26

Briggs & Stratton 498674

Ring Set (.020" O.S.)
(Superseded to 498682)

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498675

Ring Set (.030" O.S.)
(Superseded to 498683)

$21.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Piston Pin Lock
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Piston Pin

Note: Standard

$8.99

$

In Stock, only 3 left!

0

28

Briggs & Stratton 298908

Piston Pin (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 496792

Connecting Rod
(Superseded to 699654)

$61.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

Hex Screw
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Exhaust Valve

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Intake Valve

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Valve Spring
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

40

Briggs & Stratton 93312

Valve Retainer
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

Valve Tappet
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 399671

Starter Clutch

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Clutch Housing

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Clutch Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Clutch Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Retainer Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

75

Briggs & Stratton 223407

Washer

$

$

Currently unavailable

76

Briggs & Stratton 68238

Seal
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

96

Briggs & Stratton 224412

Throttle Shaft
(Superseded to 691190)

$7.49

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 498811

Carburetor
(Superseded to 795477)

$

$

Not available

131

Briggs & Stratton 281437

Throttle Shaft
(Superseded to 691931)

$19.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139

Air Cleaner Gasket
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 494406

Fuel Tank

$79.99

$

In Stock, only 4 left!

0

181

Briggs & Stratton 497929

Fuel Tank Cap
(Superseded to 497929S)

$5.49

$

In Stock, Qty 8

0

187

Briggs & Stratton 496046

Fuel Pipe
(Superseded to 496046S)

$8.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 94712

Torx Screw
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 262753

Link
(Superseded to 690347)

$5.99

$

In Stock, Qty 10

0

209

Briggs & Stratton 263109

Governor Spring
(Superseded to 691859)

$6.99

$

In Stock, Qty 20+

0

209A

Briggs & Stratton 263113

Governor Spring
(Superseded to 690250)

$7.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 94786

Hex Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

333

Briggs & Stratton 398593

Magneto Armature
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 94731

Hex Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

Stop Wire

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

390

Briggs & Stratton 262764

Diaphragm Spring
(Superseded to 691839)

$5.99

$

In Stock, Qty 5

0

393

Briggs & Stratton 262734

Carburetor Screen
(Superseded to 691837)

$7.49

$

In Stock, only 3 left!

0

394

Briggs & Stratton 495770

Carburetor Diaphragm
(Superseded to 795083)

$4.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

Note: Breather

$4.49

$

In Stock, Qty 16

0

617

Briggs & Stratton 270334

Intake Manifold Seal

$

$

Currently unavailable

634

Briggs & Stratton 280566

Shaft Washer
(Superseded to 691321)

$4.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 94047

Spacer
(Superseded to 691633)

$4.99

$

In Stock, only 2 left!

0

741

Briggs & Stratton 261533

Timing Gear
(Superseded to 691805)

$15.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Cable Terminal
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

851

Briggs & Stratton 63709

Guide Bushing

Note: Intake Valve

$14.99

$

Usually ships in 2-12 days

0

913

Briggs & Stratton 494409

Check Valve Seat

$

$

Not available

976

Briggs & Stratton 494408

Carburetor Primer
(Superseded to 694394)

$4.49

$

In Stock, Qty 12

0
