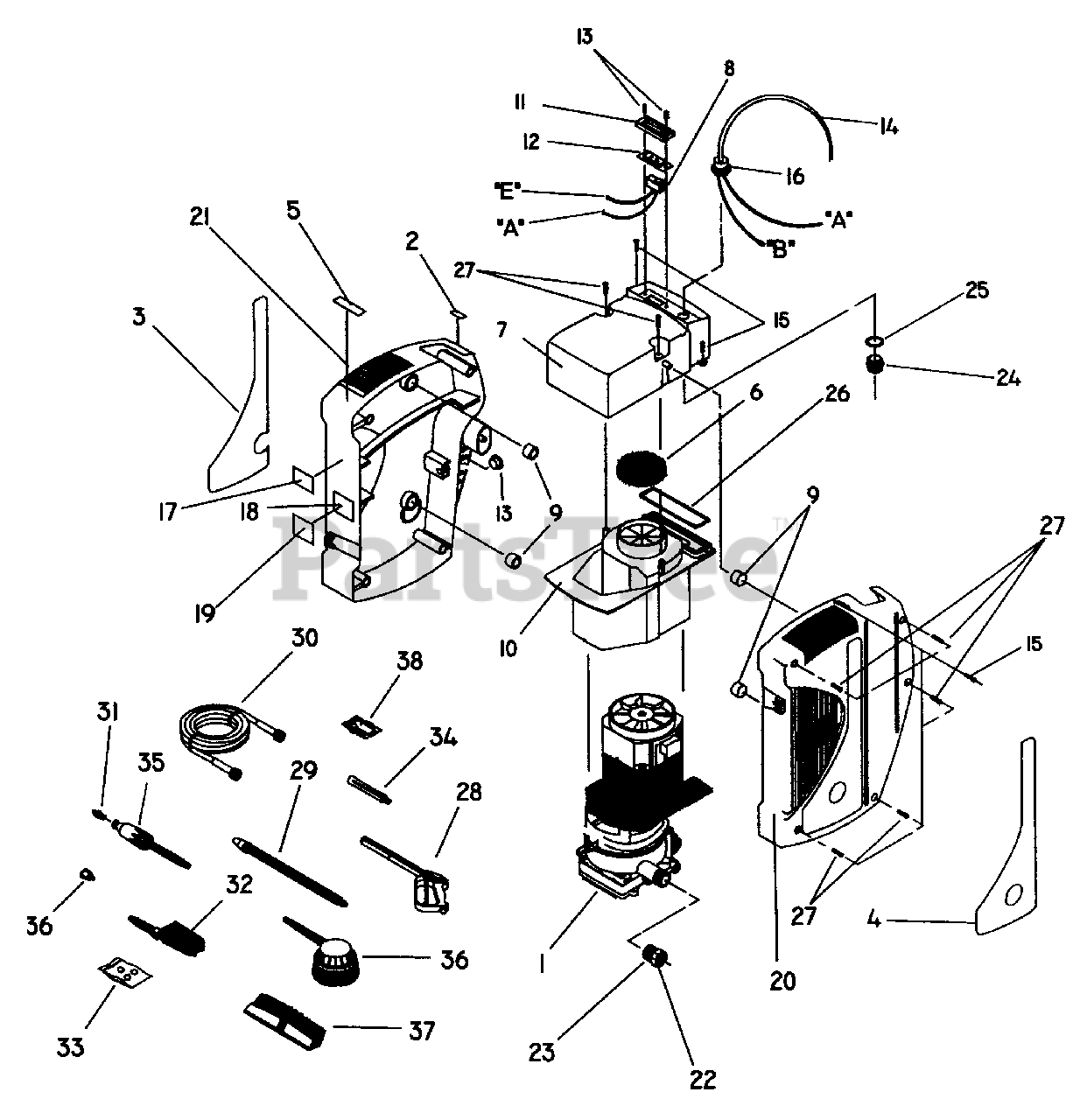

580.760240 (1155-0) - Craftsman 1,300 PSI Pressure Washer Main Unit Parts Diagram

1,300 PSI Pressure Washer

Main Unit Parts Diagram

  • Title
1

ASSY., Pump & Motor

Note: N/A, (See "Pump & Motor" illustration and parts list)

$

$

Not available

2

Briggs & Stratton B1415

DECAL, Branch Circuit
(Superseded to B1415GS)

$5.49

$

Usually ships in 2-12 days

0

3

$

$

Not available

4

Briggs & Stratton 21318

DECAL, Instructions

$

$

Currently unavailable

5

Briggs & Stratton 96307

DECAL, 800 #
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 98806

FOAM, Air In, Fan-end
(Superseded to 98806GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 97893

HOUSING, Switch and Cord
(Superseded to B1650GS)

$91.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 20984

SWITCH, Rocker

$

$

Not available

9

Briggs & Stratton 98801

MOUNT, Rubber
(Superseded to 98801GS)

$4.49

$

Usually ships in 2-12 days

0

10

$

$

Not available

11

Briggs & Stratton 20985

ENCLOSURE, Rocker Switch, Boot
(Superseded to 5020985)

$

$

Not available

12

Briggs & Stratton 20986

BOOT, Rocker Switch
(Superseded to 5020986)

$32.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84543B

SCREW, 3.5mm x 12mm Plastite
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Not available

15

Briggs & Stratton 84358

SCREW, #6-19 x .75" Plastite
(Superseded to 84358GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 99349

CORD, Strain Relief
(Superseded to 99349GS)

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B1053

DECAL, ETL
(Superseded to B1053GS)

$1.99

$

Usually ships in 2-12 days

0

18

$

$

Currently unavailable

$

$

Not available

20

Briggs & Stratton 97694

HOUSING, Inlet
(Superseded to 97694GS)

$40.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 97695

HOUSING, Outlet

$

$

Not available

22

Briggs & Stratton 21781

QUICK DISCONNECT, Male

$

$

Not available

23

Briggs & Stratton 21782

QUICK DISCONNECT, Female

$

$

Not available

24

Briggs & Stratton A1484

NUT, Strain Relief, Lock
(Superseded to A1484GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton A1485

SEAL RING, Strain Relief

$

$

Not available

26

Briggs & Stratton 21125

"O" RING, Dia. 25.07 ID x 2.62 CS [.103"]
(Superseded to 21125GS)

$3.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 99350

SCREW, #6-19 x 1" Plastite
(Superseded to 99350GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 97809

GUN, Spray
(Superseded to 97809GS)

$102.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B2443D

ASSEMBLY, Turbo/Lance
(Superseded to B2443DGS)

$96.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B1239

HOSE, High Pressure 1/4"
(Superseded to B1239GS)

$90.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

32

Briggs & Stratton B2391

BRUSH, Utility
(Superseded to B2391GS)

$41.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B2710

KIT, "O"- Ring Maintenance
(Superseded to B2710GS)

$9.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 95598

HANDLE, Broom
(Superseded to 95598GS)

$24.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2390

FOAMER, In - Line
(Superseded to B2390GS)

$46.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B2389

BRUSH, Rotating
(Superseded to 6057)

$48.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 95597

BRUSH, Broom
(Superseded to 100510GS)

$85.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97009

KIT, Nozzle Cleaning
(Superseded to 97009GS)

$7.49

$

Usually ships in 2-12 days

0
