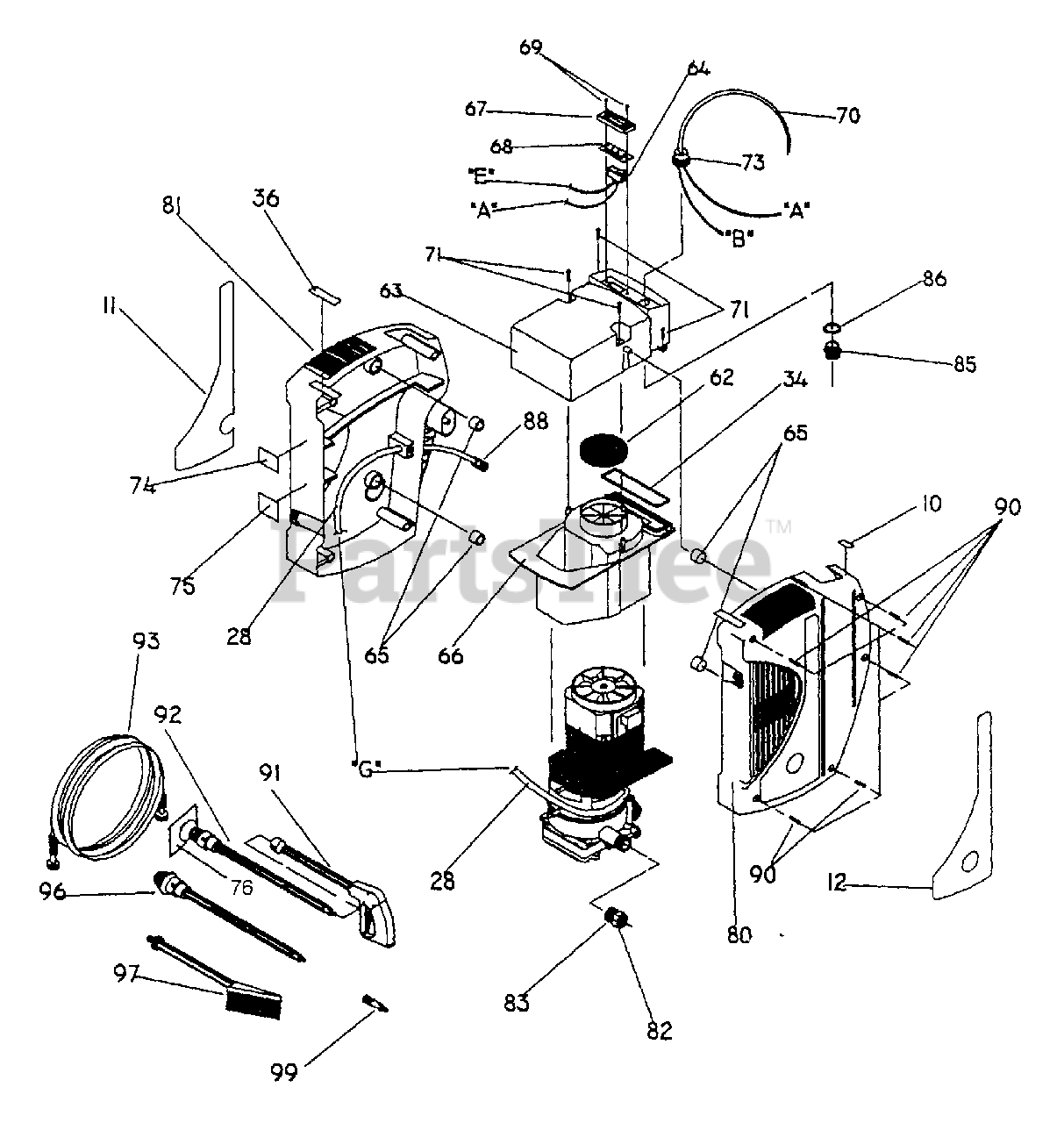

580.760220 (1007-0) - Craftsman 1,250 PSI Pressure Washer Complete Assembly Parts Diagram

1,250 PSI Pressure Washer

Complete Assembly Parts Diagram

  • Title

10

Briggs & Stratton 96462

Decal, Circuit

$

$

Currently unavailable

11

Briggs & Stratton B1238

Decal, Unit
(Superseded to B1238GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 21318

Decal, Instructions

$

$

Currently unavailable

28

Briggs & Stratton A1040B

Hose, Chem
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 97835

"O" Ring, Hsg Seal, dia. 82.2 x 2.62mm
(Superseded to 97835GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 96307

Decal, 800#
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 98806

Foam, Air In, Fan-end
(Superseded to 98806GS)

$2.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 97893

Housing, Switch and Cord
(Superseded to B1650GS)

$91.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 20984

Switch, Rocker

$

$

Not available

65

Briggs & Stratton 98801

Mount, Rubber
(Superseded to 98801GS)

$4.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 97892

Cover, Motor

$

$

Currently unavailable

67

Briggs & Stratton 20985

Enclosure, Rocker Switch, Boot
(Superseded to 5020985)

$

$

Not available

68

Briggs & Stratton 20986

Boot, Rocker Switch
(Superseded to 5020986)

$32.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 84543B

Plastite 35mm x 12mm
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 98805

Cord, Power

$

$

Not available

71

Briggs & Stratton 84358

Plastite #6-19 x .75mm
(Superseded to 84358GS)

$3.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 99349

Relief, Strain Cord
(Superseded to 99349GS)

$10.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton B1053

ETL Decal
(Superseded to B1053GS)

$1.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton A1603

Data Decal

$

$

Currently unavailable

76

Briggs & Stratton 97566

Nozzle, Hang Tag
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 97694A

Housing, Inlet
(Superseded to 97694AGS)

$48.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 97695A

Housing, Outlet

$

$

Currently unavailable

82

Briggs & Stratton 21265

Quick Disconnect, Male
(Superseded to 21265GS)

$3.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 96016

Quick Disconnect, Female
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

85

Briggs & Stratton A1484

Lock Nut, Strain Relief
(Superseded to A1484GS)

$2.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton A1485

Seal Ring, Strain Relief

$

$

Not available

88

Briggs & Stratton A1041

Filter, Chem Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 99350

Screw #6 Plastite
(Superseded to 99350GS)

$3.49

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 21336

Spray Gun

$

$

Currently unavailable

92

Briggs & Stratton B1242D

Assy., Wand & Adj. Nozzle
(Superseded to B1242DGS)

$61.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton B1239

High Pressure Hose
(Superseded to B1239GS)

$90.99

$

Usually ships in 2-12 days

0

96

Briggs & Stratton B1296

Assy., Wand & Turbo
(Superseded to B1296GS)

$148.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 88185

Brush, Utility
(Superseded to 88185GS)

$77.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton B1345

Grommet

$

$

Currently unavailable

99

Briggs & Stratton B1051

Bayonet Adaptor
(Superseded to B1051GS)

$11.99

$

Usually ships in 2-12 days

0
