580.760002 (1279-2) - Craftsman 1,300 PSI Pressure Washer Pump And Motor Housing Parts Diagram

1,300 PSI Pressure Washer

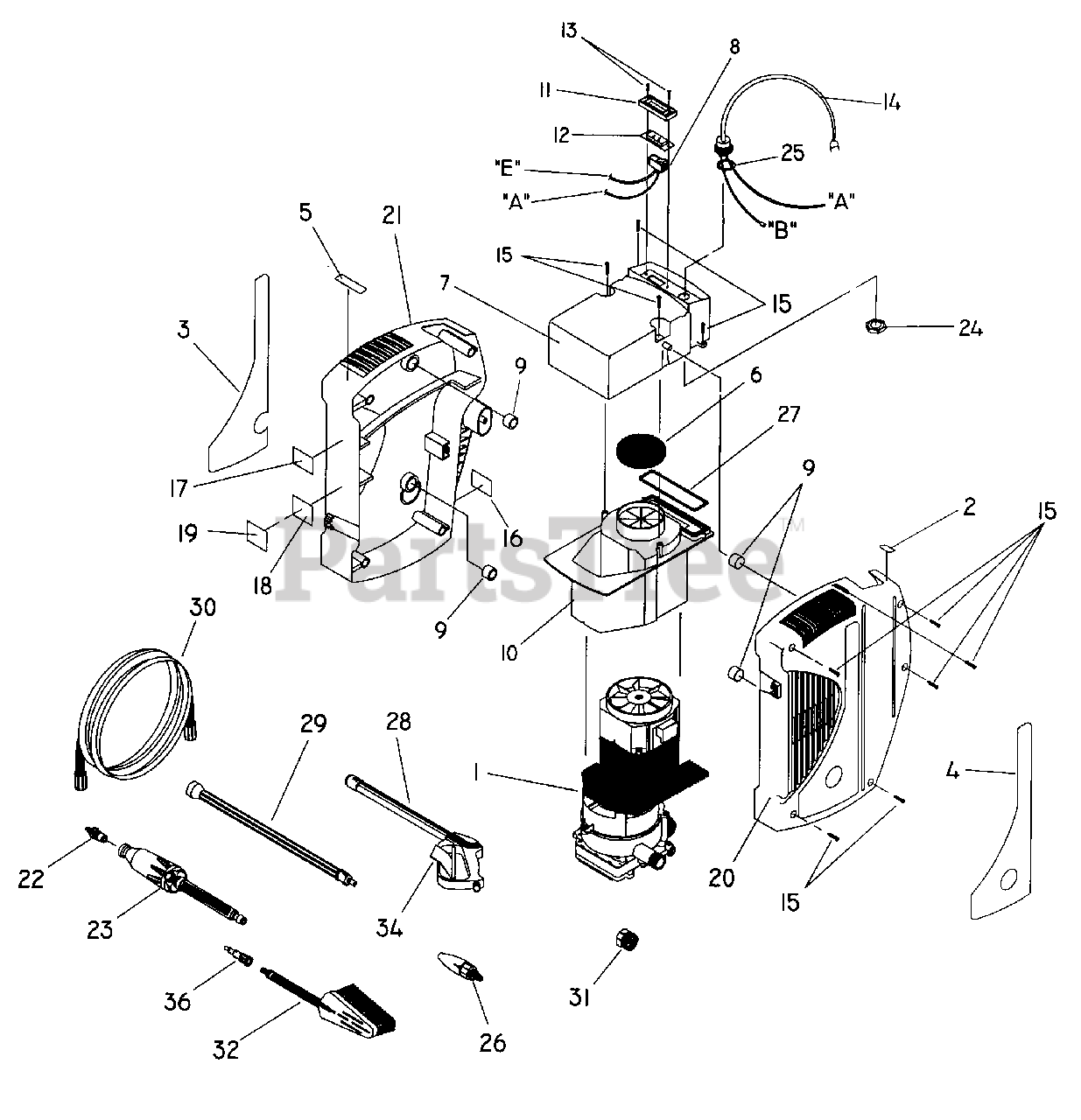

Pump And Motor Housing Parts Diagram

  • Title
1

N/A

ASSY., Pump & Motor

Note: (See Motor And Pump parts list)

$

$

Not available

2

Briggs & Stratton B1415

DECAL, Branch Circuit
(Superseded to B1415GS)

$5.49

$

Usually ships in 2-12 days

0

$

$

Not available

4

Briggs & Stratton 21318

DECAL, Instructions

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Briggs & Stratton 98806

FOAM, Air In, Fan-end
(Superseded to 98806GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 97893

HOUSING, Switch and Cord
(Superseded to B1650GS)

$91.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 20984

SWITCH, Rocker

$

$

Not available

9

Briggs & Stratton 98801

MOUNT, Rubber
(Superseded to 98801GS)

$4.49

$

Usually ships in 2-12 days

0

10

$

$

Not available

11

Briggs & Stratton 20985

ENCLOSURE, Rocker Switch, Boot
(Superseded to 5020985)

$

$

Not available

12

Briggs & Stratton 20986

BOOT, Rocker Switch
(Superseded to 5020986)

$32.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84543B

SCREW, 3.5mm x 12mm Plastite
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 98805

ASSY., Power Cord

$

$

Not available

15

Briggs & Stratton 84358

SCREW, #6-19 x .75" Plastite
(Superseded to 84358GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B3532

DECAL, User Guide
(Superseded to B3532GS)

$7.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B1053

DECAL, ETL
(Superseded to B1053GS)

$1.99

$

Usually ships in 2-12 days

0

18

$

$

Currently unavailable

19

NSP

LAMINATE, Over

$

$

Not available

20

Briggs & Stratton 97694

HOUSING, Inlet
(Superseded to 97694GS)

$40.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 97695

HOUSING, Outlet

$

$

Not available

22

Briggs & Stratton B2433

NOZZLE, Foamer
(Superseded to B2433GS)

$9.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B2390

FOAMER
(Superseded to B2390GS)

$46.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1484

NUT, Strain Relief, Lock
(Superseded to A1484GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton A1485

SEAL RING, Strain Relief

$

$

Not available

26

Briggs & Stratton B1300D

NOZZLE
(Superseded to B1300DGS)

$24.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 97835

"O" RING, Housing Seal
(Superseded to 97835GS)

$3.99

$

In Stock, only 2 left!

0

28

$

$

Currently unavailable

29

Briggs & Stratton 21337

LANCE
(Superseded to 21337GS)

$32.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton B3337

HOSE, High Pressure

$

$

Currently unavailable

31

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 88185

BRUSH, Utility
(Superseded to 88185GS)

$77.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B1866

DECAL, EPW Gun
(Superseded to B1866GS)

$12.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B1051

ADAPTOR, Bayonet
(Superseded to B1051GS)

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187

Garden Hose Quick Connect
(Superseded to 7175187GS)

Note: (Optional; Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175199

Rotating Brush
(Superseded to 7175199GS)

Note: (Optional; Not Illustrated)

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7176430

Broom Brush

Note: (Optional; Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7175116

O-Ring Repair Kit
(Superseded to 196002GS)

Note: (Optional; Not Illustrated)

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7176403

Degreaser

Note: (Optional; Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7176402

Vehicle/Boat Wash

Note: (Optional; Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7176400

House Multi Purpose Wash

Note: (Optional; Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7176401

Deck Wash

Note: (Optional; Not Illustrated)

$

$

Currently unavailable
