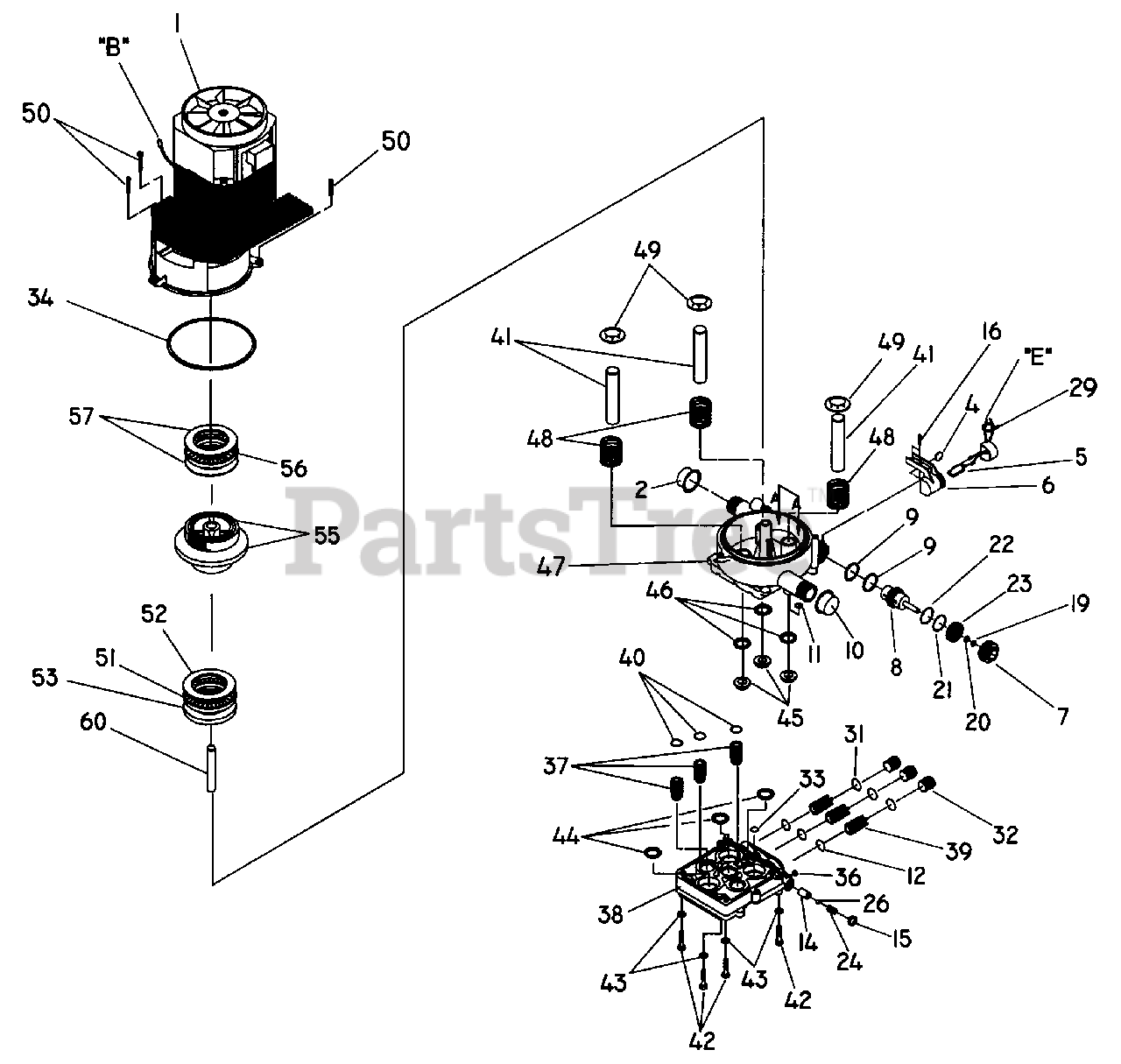

580.760000 (1279-0) - Craftsman 1,300 PSI Pressure Washer Pump Assembly Parts Diagram

1,300 PSI Pressure Washer

Pump Assembly Parts Diagram

  • Title

1

Briggs & Stratton B1514

ASSY, Motor Complete
(Superseded to B1514GS)

$184.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 97100

CAP, HP
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21055

GROMMET, Rubber

$

$

Not available

5

Briggs & Stratton 20138

SWITCH, Auto
(Superseded to 20138GS)

$8.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 20928

HOUSING, Auto-Switch
(Superseded to 5020928)

$6.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 20218

CAP, Retainer
(Superseded to 20218GS)

$9.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton B3384

PISTON ASSY, Kit
(Superseded to B3384GS)

$19.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 21525

WIPER, Piston Bore
(Superseded to 21525GS)

$

$

Not available

10

Briggs & Stratton B1124

CAP, inlet
(Superseded to B1124GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 97855

"O" RING, dia. 6.5 x 2.01mm
(Superseded to 97855GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 97934

"O" RING, Chk Valve dia. 12.4 x .78mm
(Superseded to 97934GS)

$

$

Not available

14

Briggs & Stratton B1960

SEAT, Ball
(Superseded to B1960GS)

$7.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B2240

SCREW, Lock Socket
(Superseded to B2240GS)

$2.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1495

TAPTITE, M4-0.7 x 10mm SW MTG
(Superseded to A1495GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 21124

RING, Backup dia. 4.34 Id x 1.24
(Superseded to 5021124)

$37.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 21123

"O" RING dia. 3.68 Id x 1.78 CS [.070"]

$

$

Not available

21

Briggs & Stratton 21126

RING, Backup dia. 26.0 ID
(Superseded to 5021126)

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 21125

"O" RING dia. 25.07 ID x 2.62 CS [.103"]
(Superseded to 21125GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 20217

STOP, Piston Return
(Superseded to 20217GS)

$5.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1130

SPRING, Pop-off Valve
(Superseded to A1130GS)

$3.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 97852

BALL, dia. 3/16" Pop-off Valve
(Superseded to 97852GS)

$4.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 28739A

TIE, Wrap
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 97840

"O" RING, Hi-press dia. 15.6 x 1.78mm
(Superseded to 97840GS)

$5.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 97841

CAP, Check Valve
(Superseded to 97841GS)

$

$

Not available

33

Briggs & Stratton 97837

"O" RING, Hi-press dia. 9.2 xm 2.62mm
(Superseded to 97837GS)

$

$

Not available

34

Briggs & Stratton 97835

"O" RING, Hsg Seal, dia. 82.2 x 2.62mm
(Superseded to 97835GS)

$3.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 76353A

PLUG, Taper dia. 5.4

$

$

Not available

37

Briggs & Stratton B2664

ASSY., Inlet Check Valve
(Superseded to B2664GS)

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton A1111A

PUMP, Head
(Superseded to A1111AGS)

$60.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 97839

ASSY., Outlet Check Valve
(Superseded to 97839GS)

$5.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 97851

"O" RING, Piston dia. 10.82 x 1.78mm
(Superseded to 97851GS)

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 97832

PISTON dia. 15 x 65mm
(Superseded to 97832GS)

$39.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 40946

BOLT, SHCS M6- 1.0 x 35mm

$

$

Not available

43

Briggs & Stratton 93873

LOCKWASHER, M6 Ribbed

$4.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 93667

SEAL, Piston "U" Cup
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 7

0

45

Briggs & Stratton 97831

SPACER, Pilot
(Superseded to 97831GS)

$5.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 93680

SEAL, Oil-piston dia. 15 TC4
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B1119

HOUSING, Piston

$

$

Not available

48

Briggs & Stratton 99503

SPRING, Piston Return
(Superseded to 99503GS)

$3.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 97830

RETAINER, Piston Spring
(Superseded to 97830GS)

$10.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 40945

BOLT, SHCS M6-1.0 x 20mm
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

51

Briggs & Stratton 97824A

BEARING, Needle dia. 40 x 60mm
(Superseded to 97824AGS)

$14.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 97826

WASHER, Brg dia. 40 x 60 x 1mm
(Superseded to 97826GS)

$6.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 97825

WASHER, Brg dia. 36 x 60 x 6mm
(Superseded to 97825GS)

$15.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton B2663

ASSY., Cam/Gear
(Superseded to B2663GS)

$36.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 97822

BEARING, Ndle Thrust dia. 35 x 52mm
(Superseded to 97822GS)

$14.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 20610

WASHER, Brg dia. 35 x 55 x 3mm
(Superseded to 20610GS)

$6.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 97833

SHAFT, Idler Axial Cam
(Superseded to 97833GS)

$3.99

$

Usually ships in 2-12 days

0
